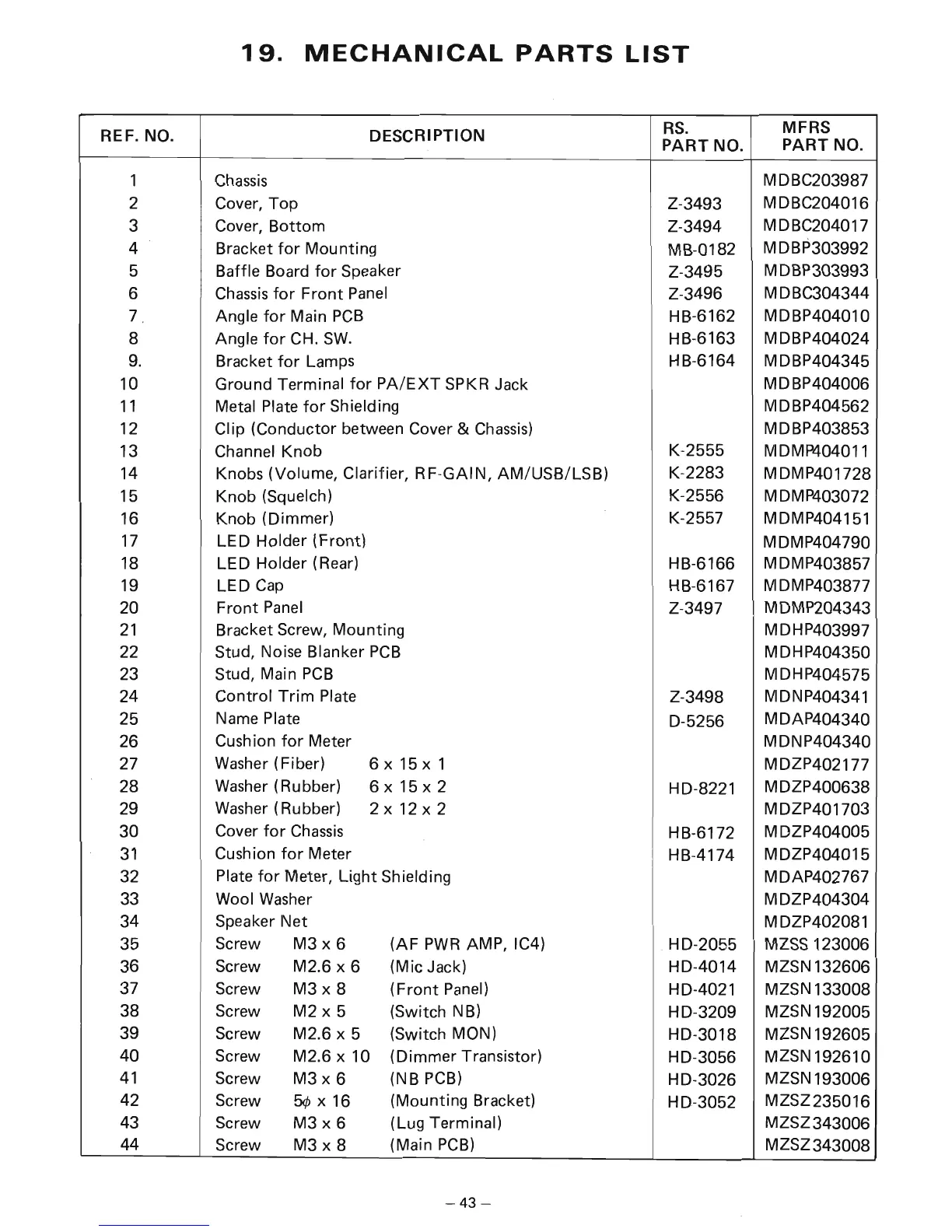

19. MECHANICAL PARTS LIST
REF. NO.
DESCRIPTION
RS. MFRS
PART NO. PART NO.
1
Chassis
MDBC203987
2 Cover, Top
Z-3493 MDBC204016
3 Cover,
Bottom
Z-3494 MDBC204017
4
Bracket
for Mounting
MB-0182
MDBP303992
5
Baffle Board
for Speaker
Z-3495
MDBP303993
6
Chassis for Front Panel
Z-3496 MDBC304344
7
Angle
for Main PCB
HB-6162
MDBP404010
8 Angle
for CH. SW.
HB-6163 MDBP404024
9.
Bracket for Lamps
HB-6164
MDBP404345
10
Ground Terminal
for PA/EXT SPKR Jack
MDBP404006
11
Metal Plate for Sh ield ing
MDBP404562
12
Clip (Conductor between Cover
& Chassis)
MDBP403853
13 Channel Knob
K-2555
MDMP404011
14
Knobs (Volume, Clarifier, R F-GAI N, AM/USB/LSB)
K-2283
MDMP401728
15 Knob (Squelch)
K-2556
MDMP403072
16
Knob (Dimmer)
K-2557
MDMP404151
17 LED Holder (Front)
MDMP404790
18 LE D Holder (Rear)
HB-6166 MDMP403857
19
LED
Cap
HB-6167
MDMP403877
20
Front Panel
Z-3497
MDMP204343
21
Bracket Screw, Mounting
MDHP403997
22
Stud, Noise Blanker
PCB
MDHP404350
23
Stud, Main
PCB
MDHP404575
24
Control
Trim Plate
Z-3498 MDNP404341
25 Name Plate
D-5256
MDAP404340
26
Cush ion for Meter
MDNP404340
27
Washer (Fiber)
6x15x1
MDZP402177
28
Washer (Rubber)
6 x 15 x 2
HD-8221
MDZP400638
29 Washer (Rubber)
2 x
12 x 2
MDZP401703
30
Cover
for Chassis
HB-6172
MDZP404005
31 Cush ion for Meter
HB-4174
MDZP404015
32
Plate
for Meter, Light Shielding
MDAP402767
33
Wool
Washer
MDZP404304
34
Speaker Net
MDZP402081
35 Screw
M3x6
(AF PWR AMP, IC4)
HD-2055
MZSS 123006
36 Screw
M2.6 x 6 (Mic Jack)
HD-4014
MZSN132606
37 Screw
M3x8
(F rant Panel)
HD-4021
MZSN133008
38 Screw
M2x5
(Switch NB)
HD-3209 MZSN192005
39
Screw
M2.6 x 5 (Switch
MON)
HD-3018
MZSN192605
40
Screw
M2.6 x 10
(Dimmer Transistor)
HD-3056
MZSN 192610
41
Screw
M3x 6 (NB PCB)
HD-3026
MZSN193006
42
Screw
5¢ x 16 (Mounting Bracket)
HD-3052
MZSZ235016
43
Screw
M3x6 (Lug Terminal)
MZSZ343006
44
Screw
M3x 8
(Main
PCB)
MZSZ343008
-43 -
