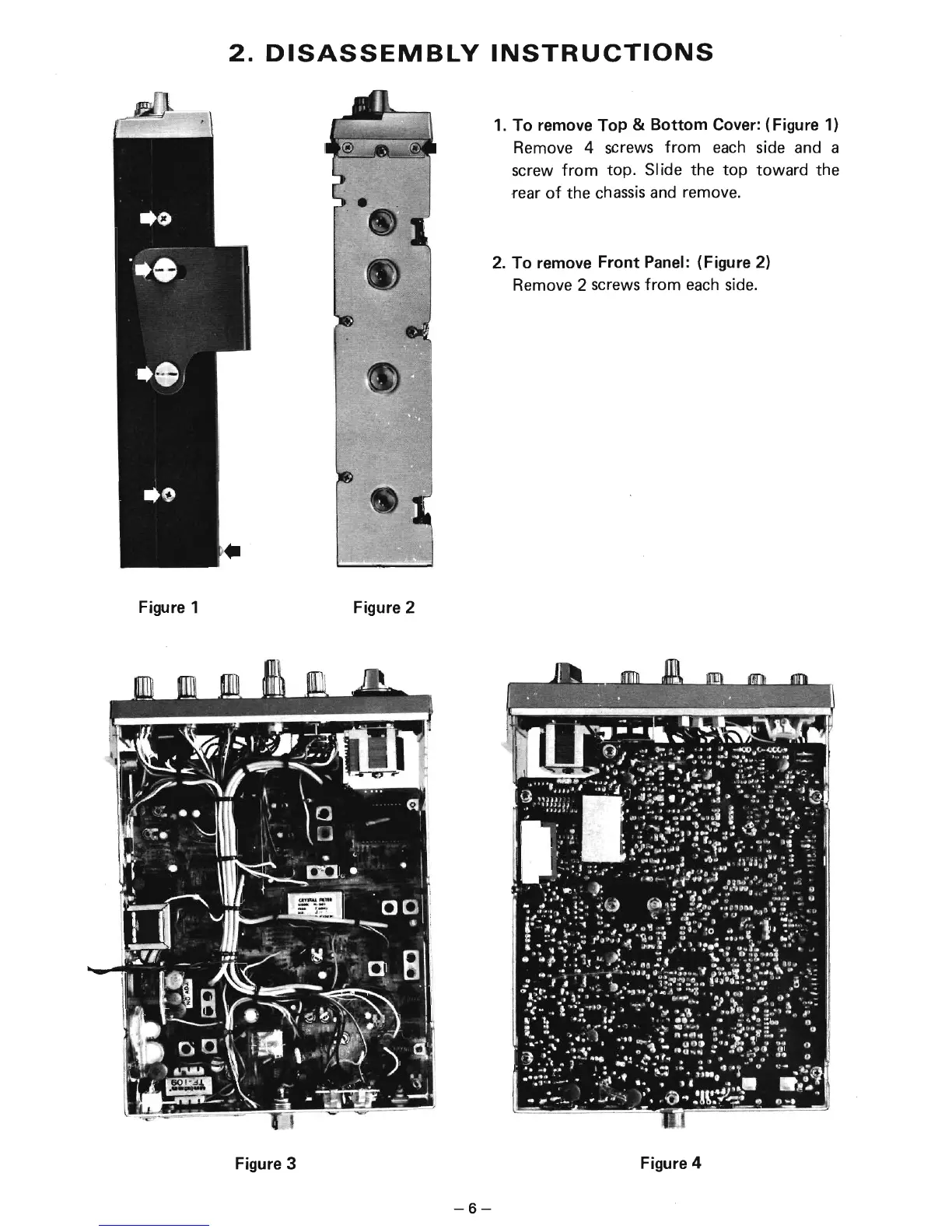

2. DISASSEMBLY INSTRUCTIONS
Figure 2
Figure 3
-6-
1. To remove Top & Bottom Cover: (Figure 1)
Remove 4 screws from each side and a
screw
from top. SI ide the top toward the
rear
of the chassis and remove.
2.
To remove Front Panel: (Figure 2)
Remove 2 screws
from each side.
Figure 4
