• Then raise the column.
• Reinsert the bolt in the hole to fix the column in the
support.
• Then secure the connection again with the key ring
(2). Then tighten the M10 (3) cap nut.
• Remove the packaging material afterwards.

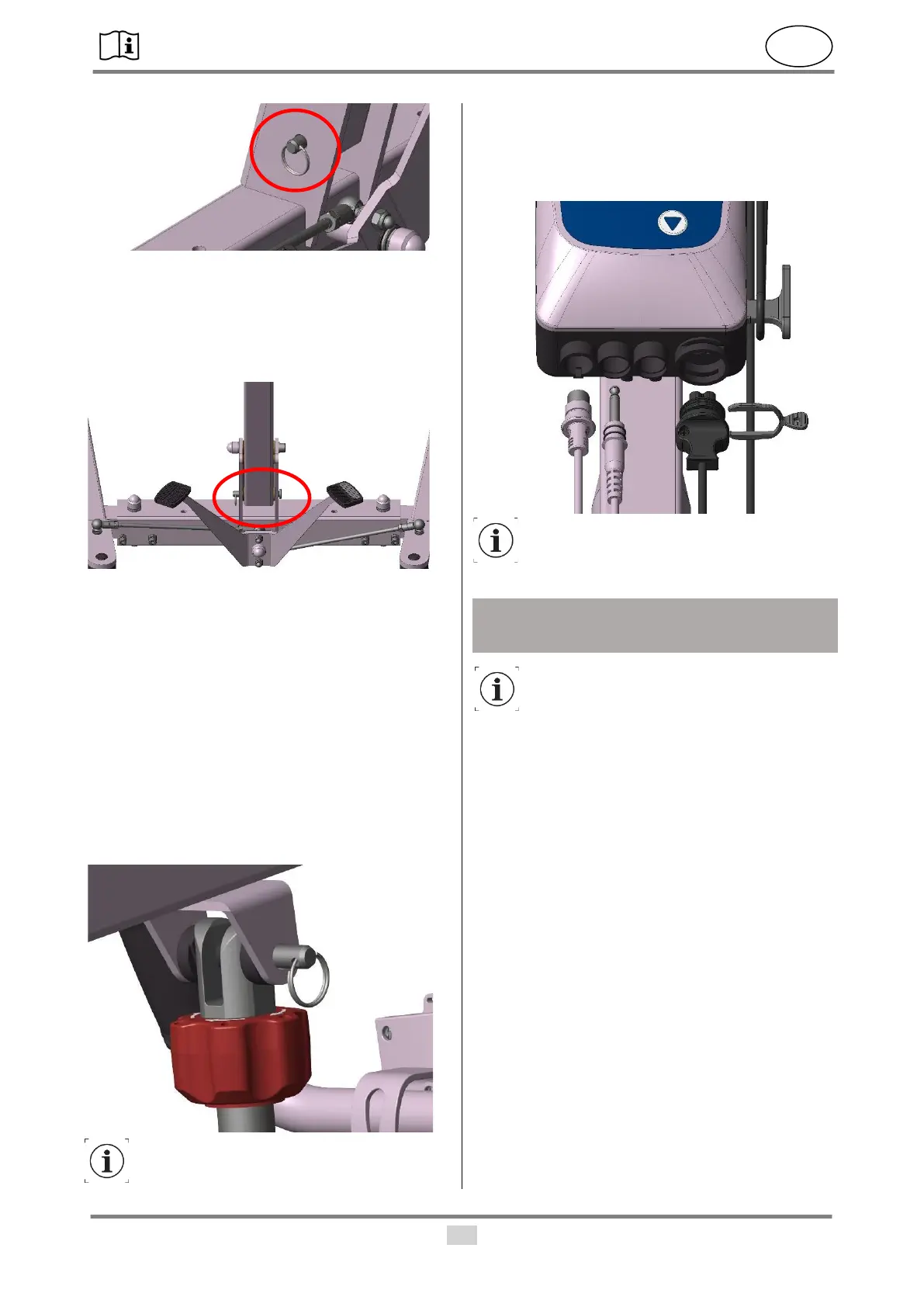

9.4. Installing the linear drive
• In order to connect the linear drive to the arm, re-
move the key ring (1) and the bolt from the hole of
the arm.
• Then lift the arm with the sling hanger and bring
the hole of the linear drive (1) and the hole of the
arm to the same height.
• By inserting the bolt and securing it with the key
ring, the arm is securely connected to the linear
drive.
Make sure that the key ring is completely
closed!
9.5. Connecting the electrical system
• Insert the plug of the linear drive in the jack (1).
Please pay attention to the positioning of the re-
cess. Then insert the manual switch in the jack (2).
Before using the device for the first time, the
EMERGENCY OFF switch must be deac-
tivated. See 9.
10. Charging the rechargeable bat-
tery
Recharge the discharged rechargeable bat-
tery as soon as possible! This increases the
lifetime of the rechargeable battery. Re-
chargeable batteries which are not used for an ex-
tended period of time should be recharged every
three months in order to avoid a deep discharge,
as this has a negative impact on the charging ca-
pacity of the rechargeable battery.
The lifetime of the rechargeable battery depends
on the intensity of use and the charge level.
