Reclaim Energy | Owners/Installation Manual – Controller v1.1
18
The RJ45 and sensor cables can
be extended up to 15 metres
Note: There are 2 different RJ45 wiring sequences
for all RJ45 cables (CAT5 or CAT6). Take special note
of the SEQUENCE of the wires and the associated
plug pin positions of your replacement cable.
These 2 wiring standards are known as T-568A and T-568B

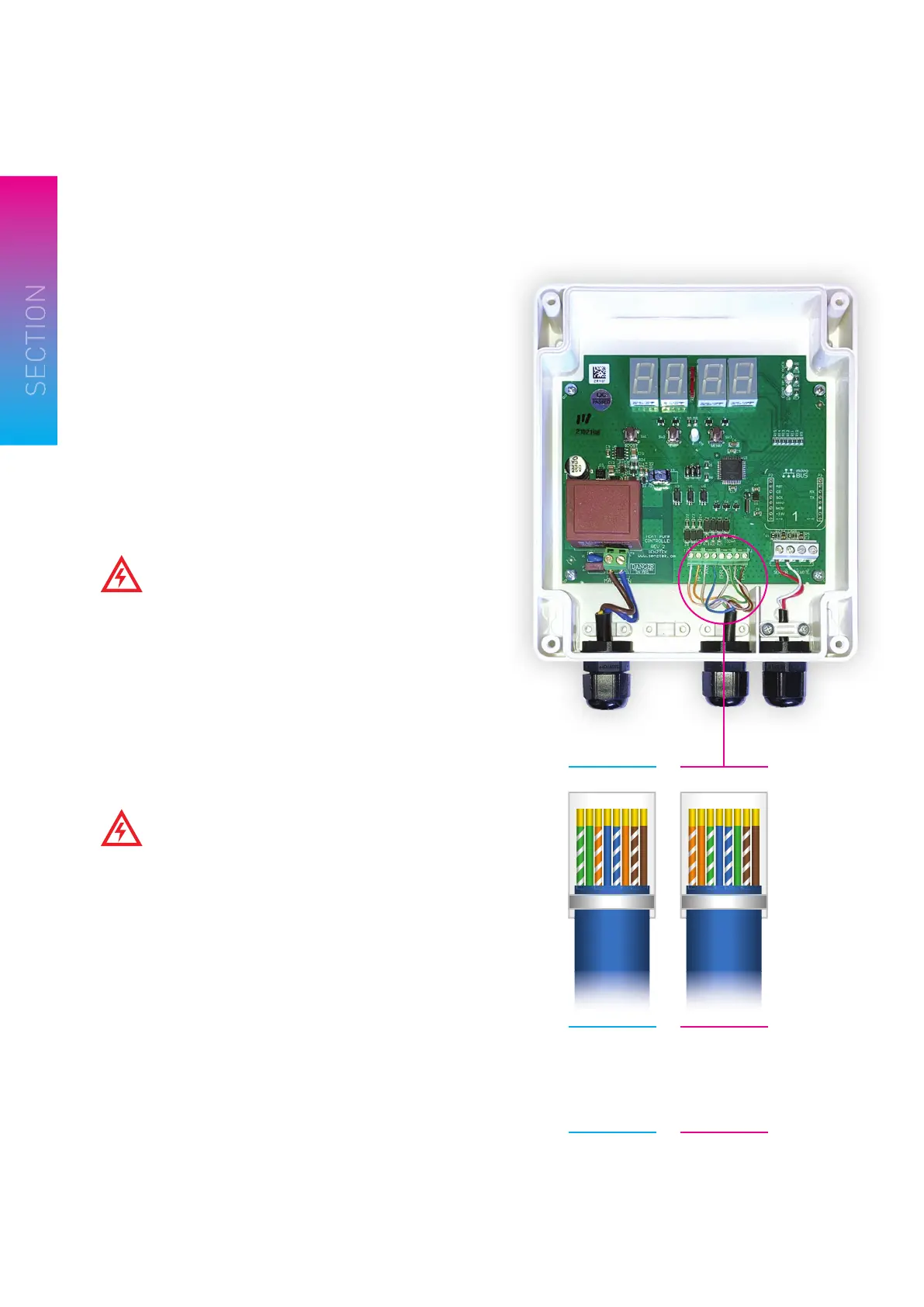

In this example the photo of the controller is using T-568B
Take note of the replacement (longer) cable you select and
determine if it is type A or B. Then wire into the controller
to match the type you have.
Note: Positions 1, 2, 3 and 6 are the only differences.
Isolate the mains power before removing
the cover and performing this modifi cation
LENGTHENING SENSOR WIRE
15 Metre sensor cables are available and the best option to
extending the sensor cable.
Note: The controller will only accurately measure Sensors
Specifi cation: NTC 10K @25ºC Beta 3435K
Do not use other sensors
REPLACING A SENSOR
Isolate the mains power supply during this
procedure
1. Remove the four screws that hold the lid on.
2. Unscrew the existing sensor from the terminal block.
3. Loosen the cable gland for the sensor lead.
4. Carefully pull the wire back through the opening in
the bottom case.
5. Thread the new sensor wire back through where the
old one came from.
6. Place the wires of the new sensor into the terminal
block where the old sensor came from.
7. Do not allow the sensor cable to come within 10mm
of the high voltage components inside the enclosure.
Tighten the cable clamp.
8. Replace the lid, replace the four screws and tighten.
9. Reconnect the Reclaim controller and turn on
the power.
10. Check that the sensor is reading correctly.
SECTION
10
COMMUNICATION/TEMPERATURE
SENSOR CABLE EXTENSION GUIDE
1 2 3 4 5 6 7 81 2 3 4 5 6 7 8
RJ45 PINOUT
CONFIGUARTIONS
T-568B
1. White Orange
2. Orange
3. White Green
4. Blue
5. White Blue
6. Green
7. White Brown
8. Brown
T-568A
1. White Green
2. Green
3. White Orange
4. Blue
5. White Blue
6. Orange
7. White Brown
8. Brown
