SECTION
1
OVERVIEW
This controller is designed to work only with the Reclaim CO2 domestic hot water heat
pump. The key difference between V1 and V1.1 controller is the introduction of Option 6
which is a remote option control in V1.1. All functionalities between controllers are the
same so for more information on how the controller works, please refer to the heat
pump installation manual.
The controller measures the tank temperature and
compares that to set points that it has stored in memory.
These set points can be dependant on time of day
depending on the option set. Once the lower temperature
is reached the controller signals the heat pump to start
heating via the RJ45 cable. Once an upper temperature is
attained the controller signal the heat pump to stop
heating. The controller automatically manages Legionella
safety, heating once a day if the Legionella safe
temperature has not been attained during the day.
The 7 segment display defaults to time of day but can
also show the measured temperature. 3 status LEDs
show additional information as shown on page 5.
The onboard Real Time Clock is maintained by a Super
Capacitor on the main circuit board. This will keep the
time running for 3 weeks with no power applied but itself
should last for the lifetime of the controller.
The controller is prewired to be ‘plug n play’ and there is
usually no need to remove the cover on installation. The
enclosure is water resistant (to rain) and is UV resistant.
The case is made of non-burning tough polycarbonate.

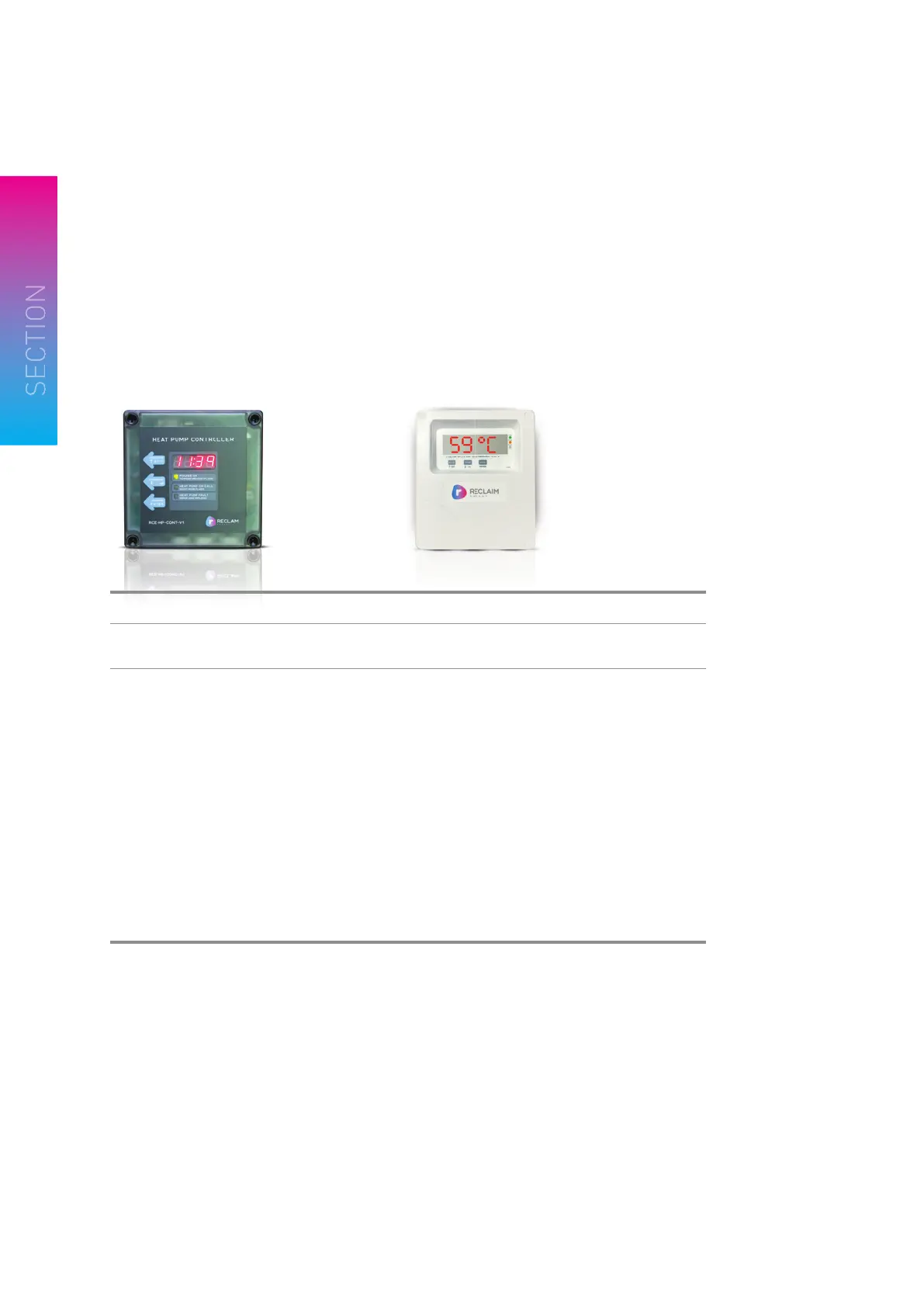

v1 CONTROLLER v1.1 CONTROLLER
Times at which temperature mode is
enabled:
All options are same as V1 with additional
of option 6 as below:
Option 1: 24/7
Option 2: 10 pm- 7 am
Option 3: Midnight -6 am
Option 4: 10 am- 4 pm
Option 5: two cycles – fi rst must set for
a minimum of 6 hours and second can
be set as little as 0 hours!
One shot boost: this activates the heat
pump if temperature is less than 59°c
and heating up until 59°c at sensor level
is achieved.
Option 6: One shot boost is activated by a
dry contact signal from home management
or PV inverters or dry contact smart switches
This is called “Remote” option.
