Reclaim Energy | Owners/Installation Manual – Controller v1.1
8
4
The following steps are required during the commissioning of controller:
1. The controller is connected to the power point and has
power on it.
2. The correct version of controller is chosen on the heat
pump

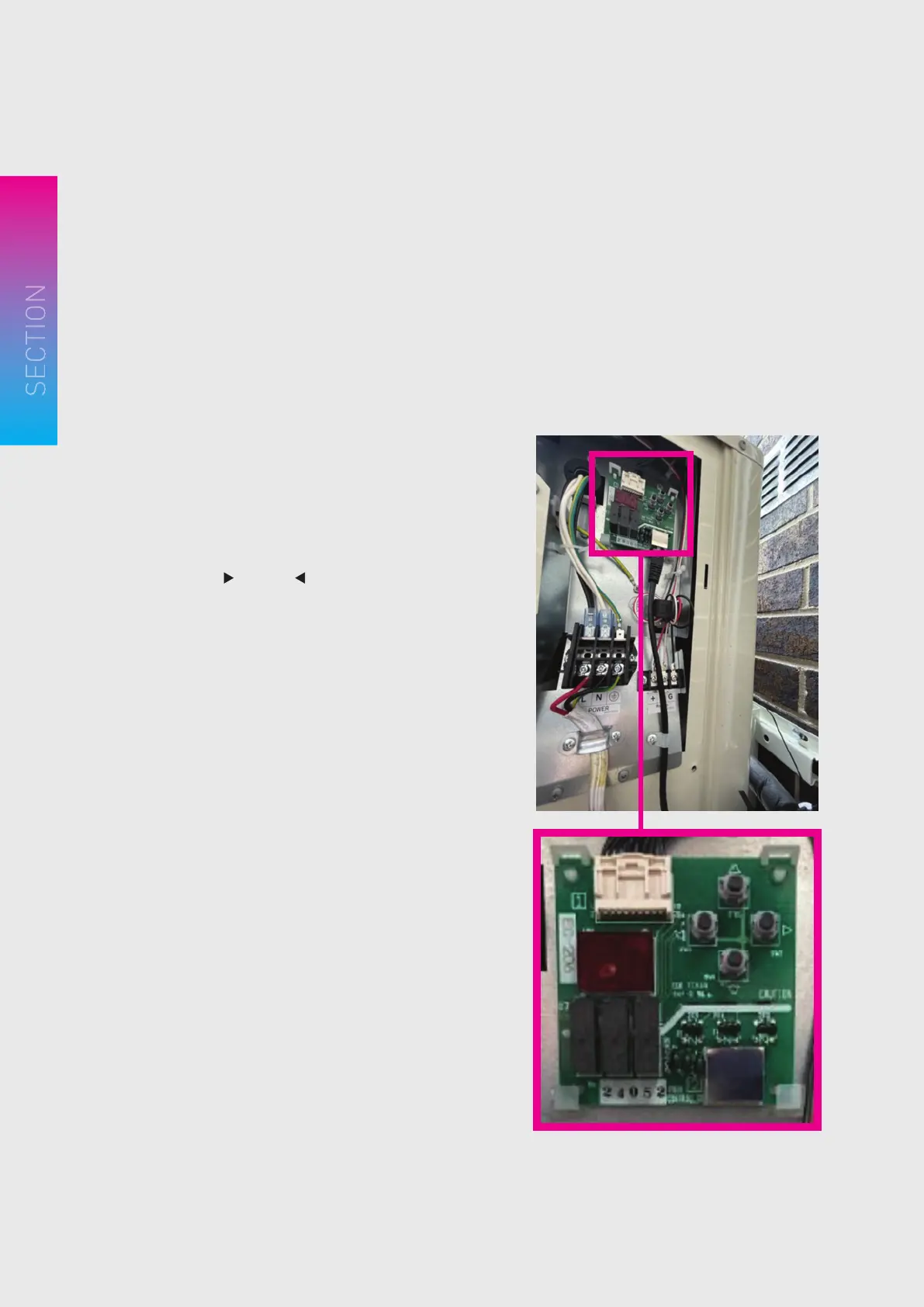

a. V1.1 controller requires “r1” to be set at “1”. This
can be checked as follows on the PCB main of the
heat pump
i. Change the value of “r1” to “2” as follows:
ii. Press and hold UP(▲) and DOWN(▼) buttons.
iii. The value displayed is “r1” & “1”
iv. Change the value of “r1” to “2” by pressing the
RIGHT ( ) or LEFT( ) button.
v. Press and hold UP(▲) and DOWN(▼) button to
complete the setting when display returns to its
original display (i.e. blank display).
vi. To check if “r1” & “2” is established, try step 1
one additional time and then go to step 4 to exit.
3. The controller shows the correct time of day>
SETTING THE TIME OF DAY
a. Press the Menu Button, “Menu” is displayed.
b. Press Temperature Button (move to next
parameter), “TIME” is displayed.
c. Press the Menu Button, Time of day “XX:XX” is
displayed, alternatively with “AdJ-“, indicating you
are in data change or adjust mode).
d. Use the Boost Button to increment the Time UP, or
the temperature button to decrement the Time
DOWN. The longer the button is pressed the faster
the time will change. Note that the “AdJ-“ prompt is
not displayed whilst the up/down buttons are
pressed.
e. Once the correct time of day is displayed, press the
Menu button.
f. “TIME” will be displayed. Press the Boost button
(exit) to revert to the normal display.
Note: If no button is pressed for 30 seconds, the display
reverts to Normal Display Mode.
Note that the clock is always in 24hr mode, and all
adjustments for day light saving must be done manually.
4. Connect the RJ 45 cable and initiate the purge cycle.
The controller communication cable is connected to
the heat pump. V1.1 controller: RJ 45 terminal block
to be used.
FIRST TIME COMMISSIONING PROCEDURE
