Record Power BS350S - Machine Assembly Procedures; Unpacking and Component Identification

13
4. Machine Assembly
4.1 Unpacking and components included
The machine is supplied partly assembled. Prior to use, further assembly is
required.

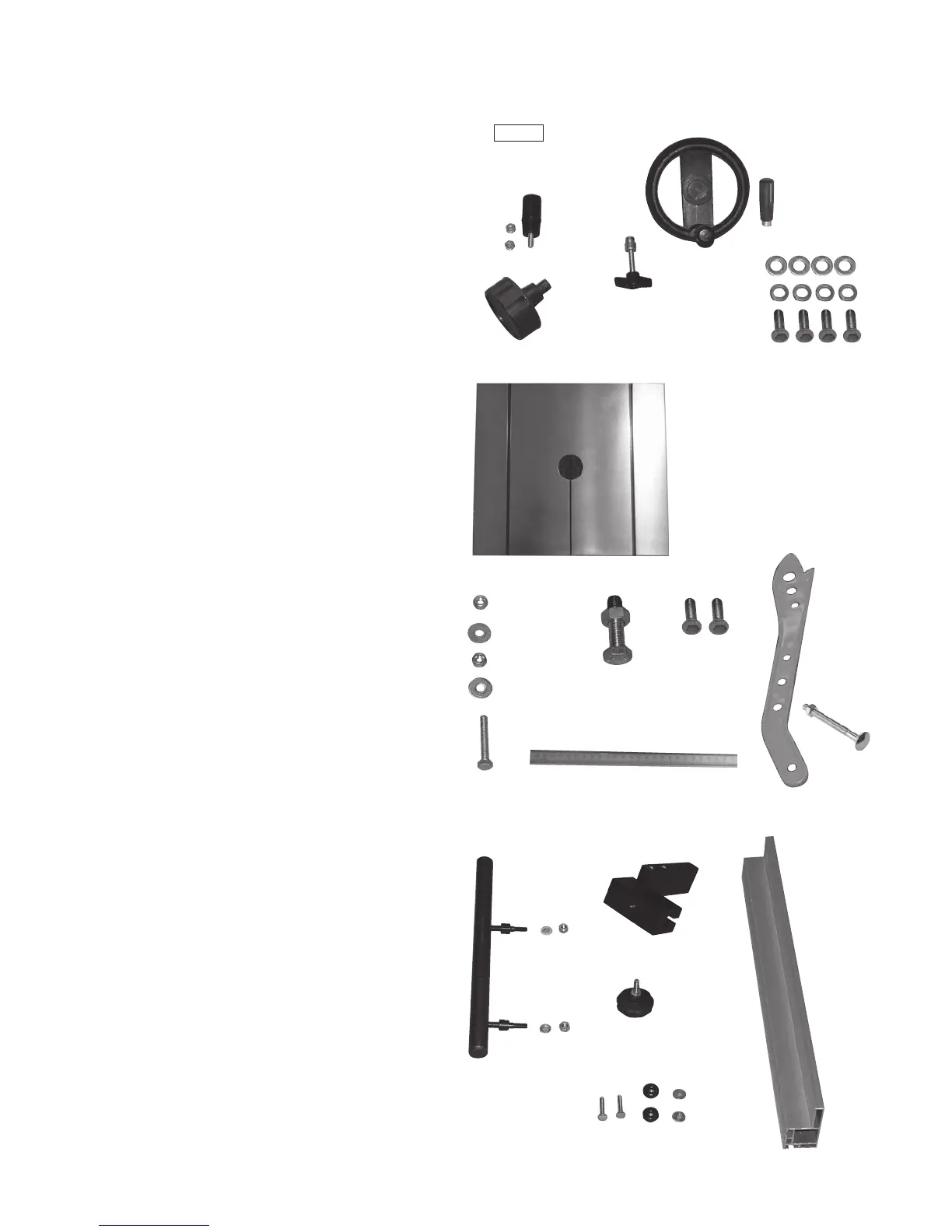

When unpacking the machine, in addition to the bandsaw itself, the
following components are included for the initial assembly Fig.4.1:
1. 2 x Nuts and small crank handle
2. Rise & fall hand wheel and crank handle
3. Blade tensioning knob
Table Assembly
4. Table stop safety bolt
5. Table
6. 4 x Table fixing bolts, washers and spring washers
7. 4 x Long fixing bolts, nuts and washers
8. Table levelling nut and bolt
9. Scale Bracket
10. 2 x hex head bolts
11. Push stick, holder and nut.
Fence Assembly
12. Fence bar
13. Fence fixing bar nuts and washers
14. Fence carrier
15. Fence
16. Fence lock knob
17. 2 x Nuts, bolts and washers
1
4
2
5
9
6
11
12
17
1514
16
13
3
Fig.4.1
7 8
( x 4 )
10
