CONTROL FUNCTION OPERATION / COMMENT
CL4-CAM Variable Speed Unit Starts and stops motor and controls speed. Green on, red off. Rotary control for speed selection.
CL3-CAM Switch Box Starts and stops motor. Green on, red off.
Tool rest Supports turning tool. Position as per lathe safety instructions.
4 Prong centre Holds and drives workpiece for spindle turning. Provides driving force from motor. Firm contact is required.
Cup centre Supports free end for spindle turning. Provides support for end of spindle which is not driven.
Headstock lock Locks headstock to bed bars. Allows headstock to Turn handle clockwise to lock. Firmly lock before
be rotated 90º for large faceplate turning. mounting work. Loosen and turn headstock to desired position;
Spindle must be parallel to bed bars when spindle turning. For bowls larger than 12” (max 30”) the headstock must be rotated
to 90º and used with optional bowl rest (part no. CL3B).
Toolrest lock Locks toolrest post into base. Turn clockwise to lock.
Toolrest cam lock Locks toolrest base to bed bars. Turn clockwise to lock.
Tailstock cam lock Locks tailstock to bed bars. Turn right to lock. Position tailstock along bed bars before locking.
Motor plate clamp Locks motor when belt is tensioned. Loosen to adjust belt for selected speeds. Tighten when belt
is properly positioned.
Tailstock handwheel Moves tailstock centre into workpiece. Rotate clockwise to move back centre towards workpiece.
Tailstock centre lock Locks tailstock centre. Turn clockwise to lock after positioning back centre with handwheel.
Thread protector Protects the spindle thread when using Morse taper accessories Protection: Threads into spindle.
and acts as a centre ejector Ejection: Hold belt or pulley and unscrew thread protector.
VSLK
(CL4-CAM only,
replaces switch
unit shown below)
Stop
Start
Speed
VSLK
Variable Speed Lathe Unit
Speed Pulley Speeds (RPM)
Setting 425 625 925 1360 2000
0 13 18 27 40 58
1 103 145 215 316 465
2 206 291 430 632 930
3 309 436 645 948 1394
4 417 581 860 1264 1859
5 515 727 1075 1581 2324
6 617 872 1290 1897 2789
7 720 1017 1505 2213 3254
8 823 1162 1720 2529 3718
9 926 1308 1935 2845 4184
10 1029 1453 2150 3161 4648
WARNING: Do not use this equipment before reading
the instruction manual.
For genuine Record Power spares and accessories please telephone 01246 561 520
or email sales@recordpower.co.uk.
Record Power Ltd, Unit B, Adelphi Way, Staveley S43 3LS
www.recordpower.co.uk
Always wear safety
glasses when using
woodworking
equipment.
Always read
the instructions
provided before
using woodworking
equipment.

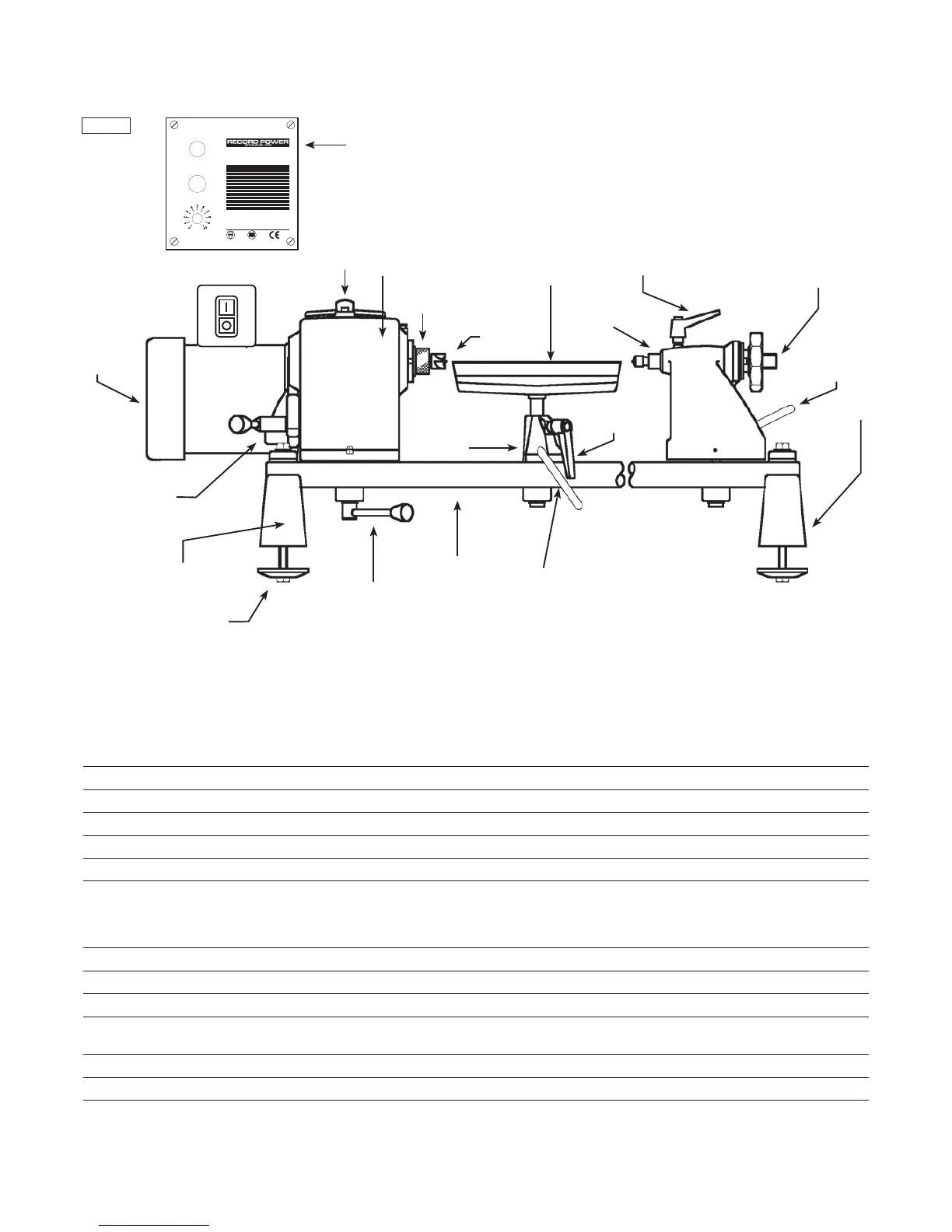

9. Control Identification & Function
Motor plate
clamp
Headstock
cover
Headstock
4 prong
centre
Toolrest
Tailstock
centre lock
Tailstock hand
wheel
End bracket
Tailstock
centre
Motor & switch
box (CL3-CAM
only features
switch)
Tool rest cam
lock
Bed bars
Headstock
lock
End bracket
Bench mounting washer
Fig.9.1
Toolrest banjo
Thread protector
& centre ejector
Tailstock cam
lock
Tool rest
locking handle
