19. Contents of the RPLB24-48 Package
1 CDLT Fabricated steel leg (front LH) 2
2 CDOT Fabricated steel leg (front RH) 2
3 CDMP Top plate 2
4 CDEM End rail (51 x 25 x 355 mm) 2
5 CDFU Upper side rail (57 x 40 x 978 mm) 2
6 CDMU Upper side rail (51 x 32 x 1074 mm) 2
7 CDFS Lower side rail (63 x 25 x 1023 mm) 2
8 CDMS Lower side rail (51 x 32 x 1124 mm) 2
9 ZAFE M8 x 45 Hex set screw 24
10 ZADB M8 x 20 Hex setscrew 12
11 ZACB M8 Hex nut 44
12 ZADD M8 Plain washer 44
13 BQST M8 x 55 Hex Setscrew 8
14 ZAEN M10 x 50 Hex Setscrew 8
15 CDHB M12 x 175 Hex Bolt 2
16 ZABO M12 Plain washer 2
17 End rail (2 x 1 16 3/4”) 2
Ref No Part No Description Quantity Ref No Part No Description Quantity

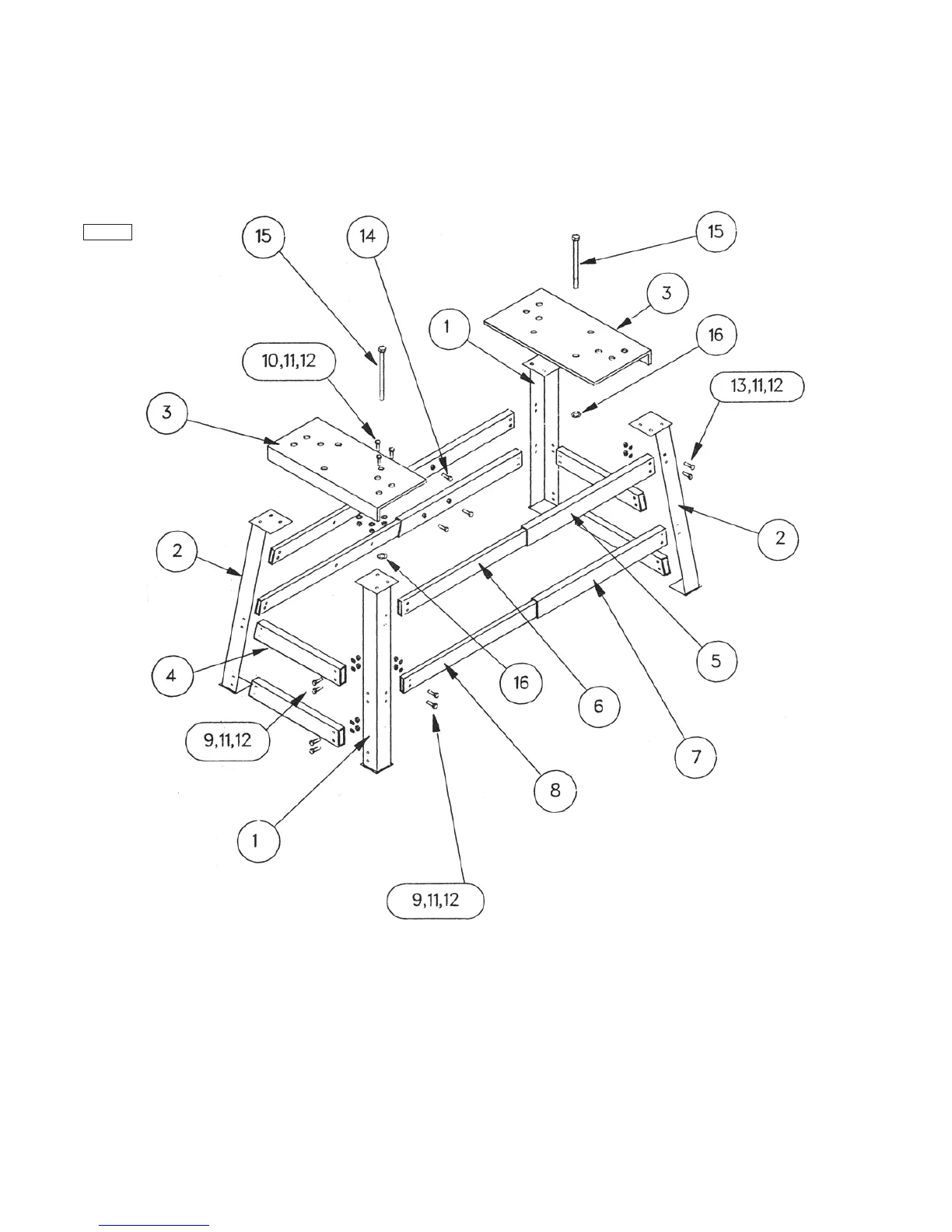

Remove bench parts from packaging and lay out in a clean, uncluttered
area. Check contents against parts list and diagram, Fig 19.1, then follow
assembly instructions.
Fig.19.1
