12. Maintenance

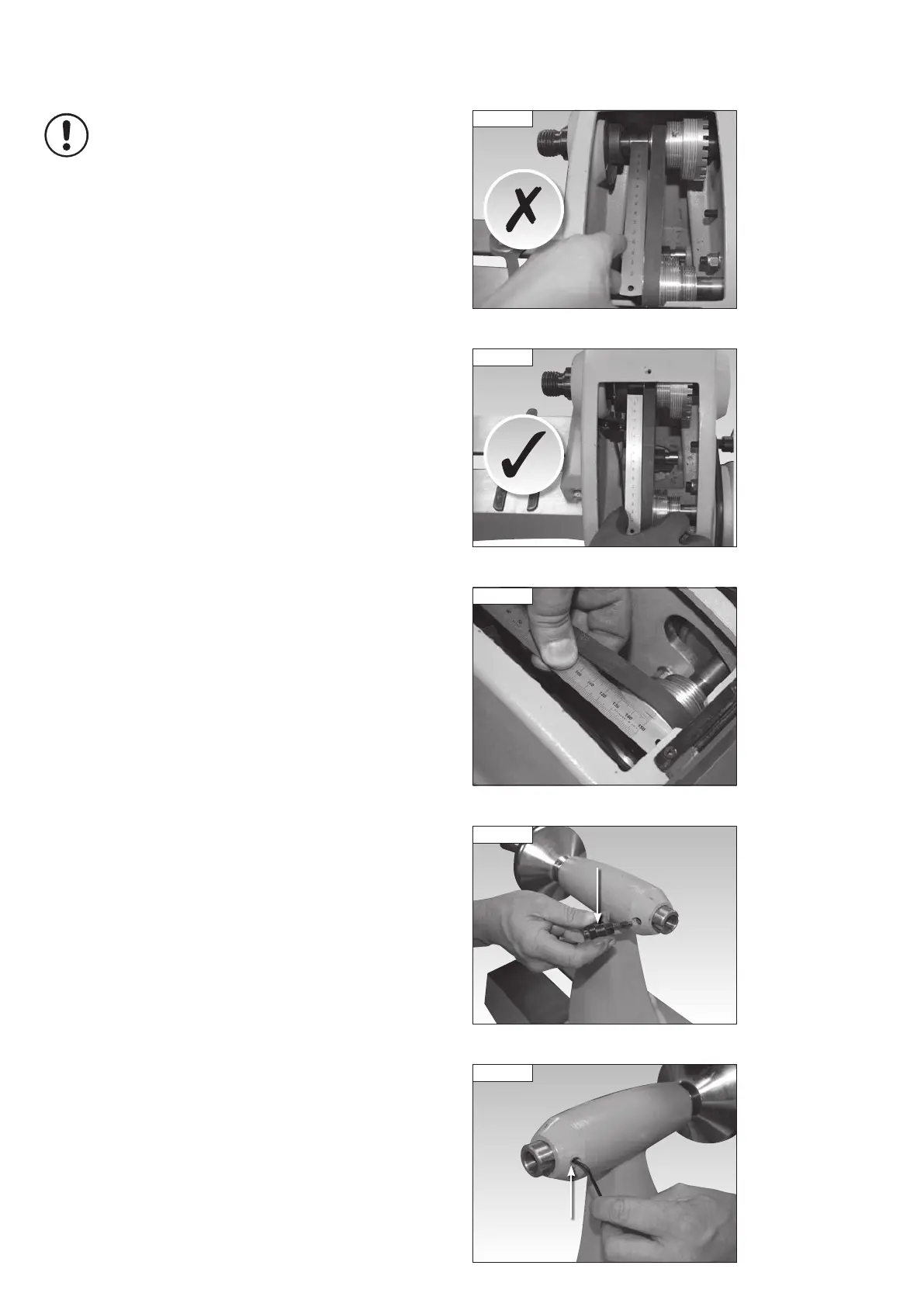

CAUTION: When re-fitting the spindle pulley, ensure it aligns with
the motor pulley. Misaligned pulleys will wear the drive belt very
quickly.
Fig 12.11 shows the pulley misaligned.
Fig 12.12 shows the pulley correctly aligned,
To aid alignment, a rule can be placed flush against the side of the motor
pulley as reference for the position of the spindle pulley. See Fig 12.13.
The motor can now be locked back in position to place tension on the drive
belt.
Cleaning the Tailstock Barrel
Remove the quill locking lever as shown in Fig 12.14.
Remove the blind set screw from the tailstock casting as shown in Fig 12.15
using a 2.5 mm hex wrench.
Fig 12.14
Quill locking
lever
Fig 12.15
Blind
set screw
Fig 12.12
Fig 12.11
