Record Power Coronet Envoy - Operation and Noise Troubleshooting

32
3
1
2
1
2
爆炸图明细表
序号 代号 名称
1
M10X30GB70D1Z
内六角圆柱头螺钉
2
M10GB6170Z
1型六角螺母
3
RCWL1601010001
床身
床身组件
RCWL1601010000
Sheet
4
1
2
3
5
爆炸图明细表
序号 代号 名称
1
WSH10GB97D1Z
平垫圈 A级
2
WSH10GB93Z
标准型弹性垫圈
3
M10X30GB70D1Z
内六角圆柱头螺钉
4
RCWL1601101007
铸铁支腿
5
WL3040A100102
地脚
铸铁支腿组件 RCWL1601101000
Sheet
1
10 9
2
3
4
5
6
7
8
爆炸图明细表
序号 代号 名称
1
JMWL1203050001B
12寸刀架
2
KTSB-1-B-M8X63X25
可调手柄
3
CLP21GB894D1B
A型轴用弹性挡圈
4
RCWL1801050002
偏心手柄
5
M10GB889D1ZF
Ⅰ型非金属嵌件六角
锁紧螺母(薄)
6
RCWL1601040004
固定板
7
JMWL1203050002
紧固螺套
8
RCWL1801050001A
刀架支座
9
BRG1528AXKASGB4605-2
推力轴承垫圈
10
CLP15GB894D1B
A型轴用弹性挡圈
刀架组件
RCWL1801050000
Sheet

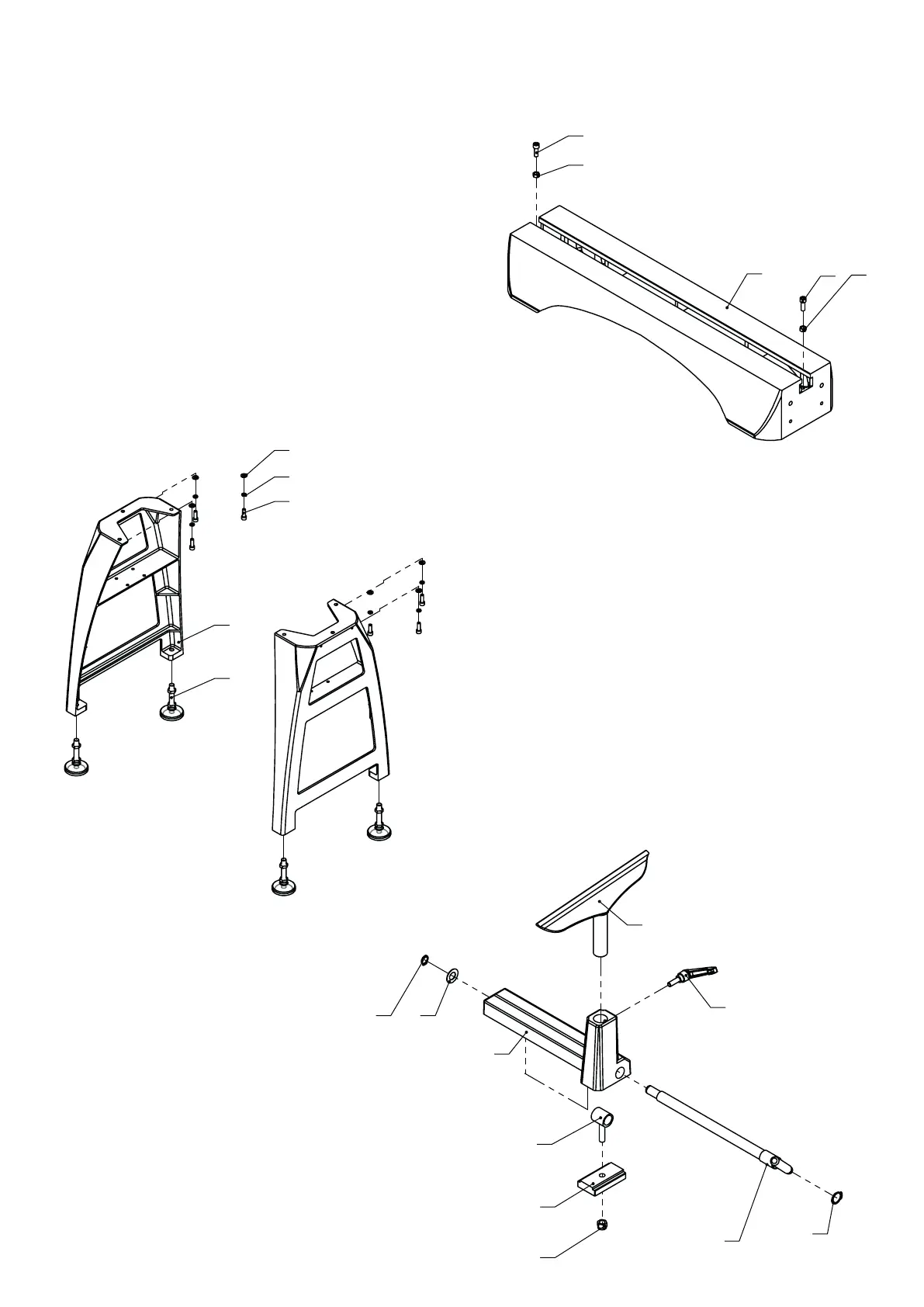

17. Parts Lists and Diagrams
Coronet Envoy and Regent Bed Assembly
Coronet Envoy and Regent Leg Stand Assembly
Coronet Envoy and Regent Tool Rest Assembly
No. Code Description
1 M10X30GB70D1Z M10 x 30 hexagon socket head screw
2 M10GB6170Z M10 hex nut
3 RCWL1601010001 Lathe bed
No. Code Description
1 WSH10GB97D1Z Flat washer
2 WSH10GB93Z Spring washer
3 M10X30GB70D1Z M10 x 30 hexagon socket head screw
4 RCWL1601101007 Stand
5 WL3040A100102 Adjustable feet
No. Code Description
1 JMWL1203050001B Tool rest
2 KTSB-1-B-M8X63X25 Adjusting handle
3 CLP21GB894D1B Circlip
4 RCWL1801050002 Cam lock handle
5 M10GB889D1ZF M10 hexagon lock nut
6 RCWL1601040004 Tool rest clamp
7 JMWL1203050002 Locking tube
8 RCWL1801050001A Tool rest base
9 BRG1528AXKASGB4605-2 Bearing washer
10 CLP15GB894D1B Circlip
