Coronet Envoy and Regent Leg Stand Assembly
16
1 2 3 4
5
6
7
8
9
10
14
13
12
11
15
17
爆炸图明细表
序号
代号
名称
1
JL93031000A
顶尖组件
2
JMWL1203041100
尾座轴组件
3
JMWL1203041000
可调手柄(1)
4
RCWL1601040002
尾座偏心手柄
5
CLP18GB894D1B
A型轴用弹性挡圈
6
ZTSL-D120-d15A
尾座手轮
7
M6X8GB80B
内六角凹端紧定螺钉
8
JL93030007
旋转手把
9
JMWL1203040007
弹簧圈
10
JL93030008
螺钉
11
M10GB889D1ZF
Ⅰ型非金属嵌件六角
锁紧螺母(薄)
12
RCWL1601040004
固定板
13
JL93030011
压缩弹簧
14
RCWL1601040003
螺柱
15
CLP14GB894D1B
A型轴用弹性挡圈
16
RCWL1601040001
尾座
17
M5X10GB79B
内六角圆柱端紧定螺
钉
尾座组件
RCWL1601040000
Sheet

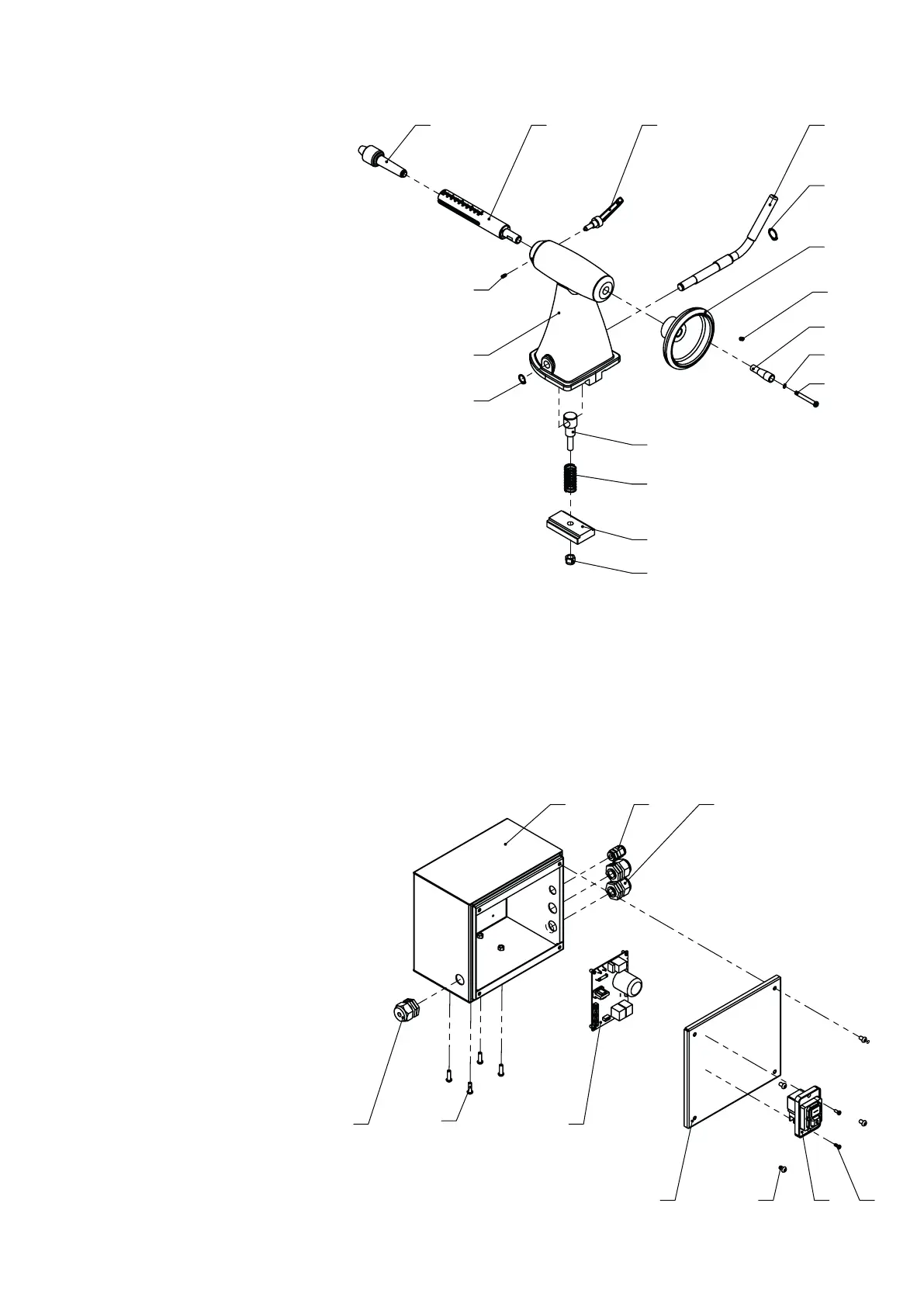

17. Parts Lists and Diagrams
Coronet Envoy and Regent Tailstock Assembly
No. Code Description
1 JL93031000A Revolving centre
2 JMWL1203041100 Tailstock barrel
3 JMWL1203041000 Ratchet handle
4 RCWL1601040002 Cam lock handle
5 CLP18GB894D1B Circlip
6 ZTSL-D120-d15A Tailstock hand wheel
7 M6X8GB80B M6 x 8 Hexagon socket set screw
8 JL93030007 Hand wheel handle
9 JMWL1203040007 Spring washer
10 JL93030008 Screw
11 M10GB889D1ZF M10 Hexagon lock nut
12 RCWL1601040004 Tailstock clamp
13 JL93030011 Compression spring
14 RCWL1601040003 Bolt
15 CLP14GB894D1B Circlip
16 RCWL1601040001 Tailstock (Envoy)
16 RCWL1801040001 Tailstock (Regent)
17 M5X10GB79B M5 x 10 Hexagon socket set screw
3
6
5
7
8
4
1 2
10
9
爆炸图明细表
序号
代号
名称
1
RCWL1601092100
控制器盒
2
ADD15D8
波纹管接头（M16）
3
JL91046100
M20拉不脱
4
RCWL1601090003
盘头梅花带柱螺钉
5
RCWL1601090001
盖板
6
RCWL1601092200
变频器组件
7
M6X20GB70D2Z
内六角平圆头螺钉
8
JL91046100A
M20拉不脱
9
M4X10GB823Z
十字槽小盘头螺钉
10
KJD12-10F-230V
电磁开关
控制器组件
RCWL1601092000
Sheet
Coronet Envoy Electrical Enclosure Box Assembly
No. Code Description
1 RCWL1601092100 Controller box
2 ADD15D8 Bellows joint (M16)
3 JL91046100 M20 Cable gland
4 RCWL1601090003 Pan head club screw
5 RCWL1601090001 Cover plate
6 RCWL1601092200 Transducer (Envoy)
7 M6X20GB70D2Z M6 x 20 hexagon socket button head screw
8 JL91046100A M20 cable gland
9 M4X10GB823Z M4 x 10 cross pan head screw
10 KJD12-10F-230V Electromagnetic switch
To Next Page
