Record Power Coronet Envoy - Page 34

34
1
7
3
4
5 6
2
12
10 9 8
13
11
爆炸图明细表
序号 代号 名称
1
RCWL1601091001-001S
开关盒
2
M6GB6170Z
1型六角螺母
3
RCWL1601091002-001S
开关盒盖
4
ST4D2X13GB846Z
十字槽沉头自攻螺钉
5
M6X16GB70D3Z
内六角沉头螺钉
6
JXPS1201052010
磁钢
7
JL91046100A
M20拉不脱
8
LA39-B2-R02Z-R
停止按钮
9
PB1S-20XS6-k
三位旋钮（自锁定）
10
LA39-B2-10-g
启动按钮
11
RCWL1601091003
电位器旋钮(25X17)
12
JMWL1203090008A
数显板
13
ST2D9X9D5GB845Z
十字槽盘头自攻螺钉
开关盒组件 RCWL1601091000
Sheet

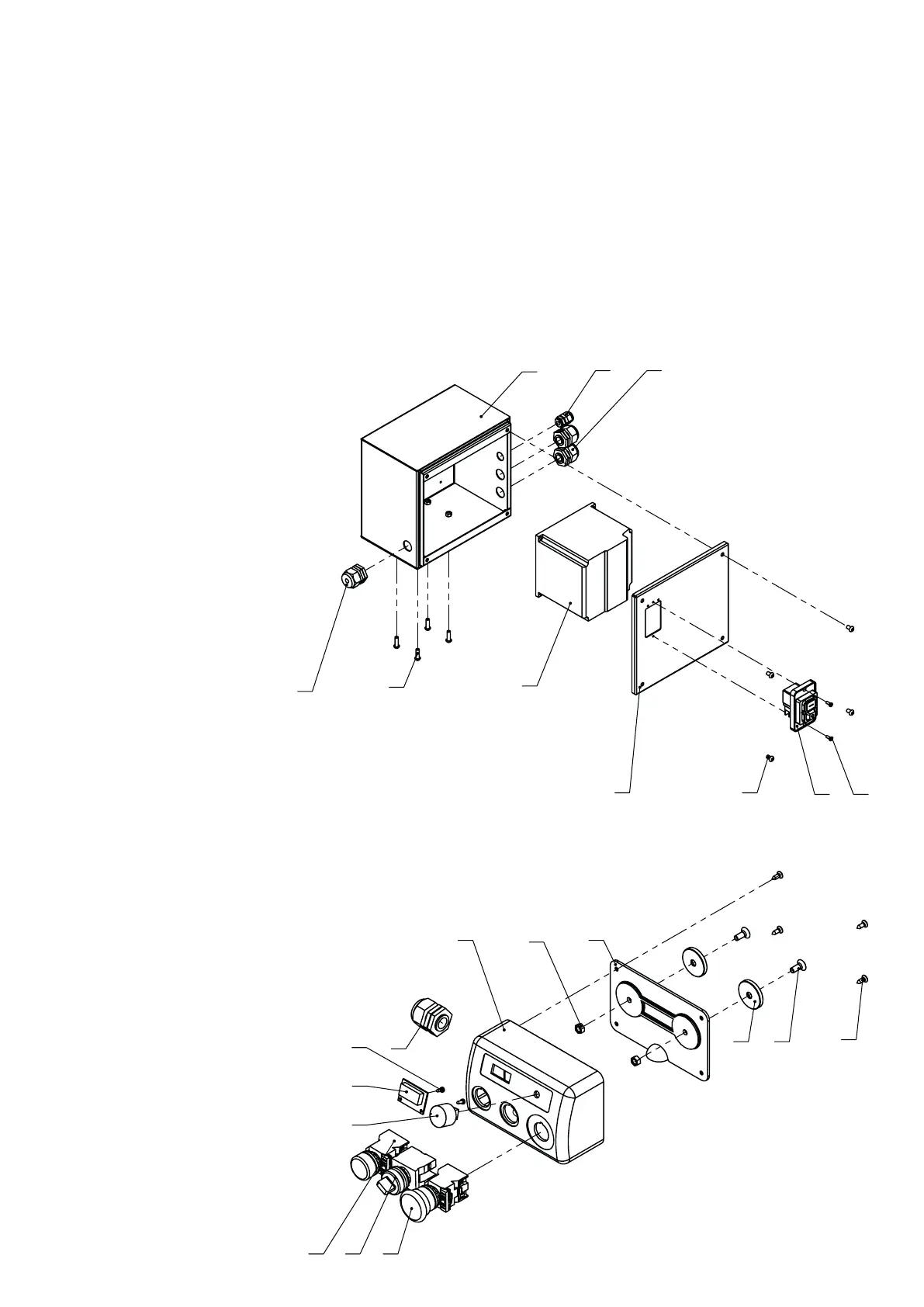

Coronet Envoy and Regent Control Unit Assembly
No. Code Description
1 RCWL1601091001-001S Switch box
2 M6GB6170Z M6 hex nut
3 RCWL1601091002-001S Switch cover
4 ST4D2X13GB846Z Countersunk head tapping screw
5 M6X16GB70D3Z M6 x 16 hexagon countersunk head screw
6 JXPS1201052010 Steel magnet
7 JL91046100A M20 Cable gland
8 LA39-B2-R02Z-R Stop button
9 PB1S-20XS6-k Three-position button (Self-locking)
10 LA39-B2-10-g Start button
11 RCWL1601091003 Potentiometer button (25 x 17)
12 JMWL1203090008A Digital display board
13 ST2D9X9D5GB845Z Cross pan head tapping screw
No. Code Description
1 RCWL1601092100 Controller box
2 ADD15D8 Bellows joint (M16)
3 JL91046100 M20 cable gland
4 RCWL1601090003 Pan head club screw
5 RCWL1601090001 Cover plate
6 DV1-128D0FB-C20C Transducer
7 M6X20GB70D2Z M6 x 20 Hexagon socket button head screw
8 JL91046100A M20 Cable gland
9 M4X10GB823Z M4 x 10 cross pan head screw
10 KJD12-10F-230V Electromagnetic switch
17. Parts Lists and Diagrams
Coronet Regent Electrical Enclosure Box Assembly
3
5
7
8
6
1
9 10
4
2
爆炸图明细表
序号 代号 名称
1
RCWL1601092100
控制器盒
2
ADD15D8
波纹管接头（M16）
3
JL91046100
M20拉不脱
4
RCWL1601090003
盘头梅花带柱螺钉
5
RCWL1601090001
盖板
6
DV1-128D0FB-C20C
变频器
7
M6X20GB70D2Z
内六角平圆头螺钉
8
JL91046100A
M20拉不脱
9
M4X10GB823Z
十字槽小盘头螺钉
10
KJD12-10F-230V
电磁开关
控制器组件 RCWL1801091000
Sheet
