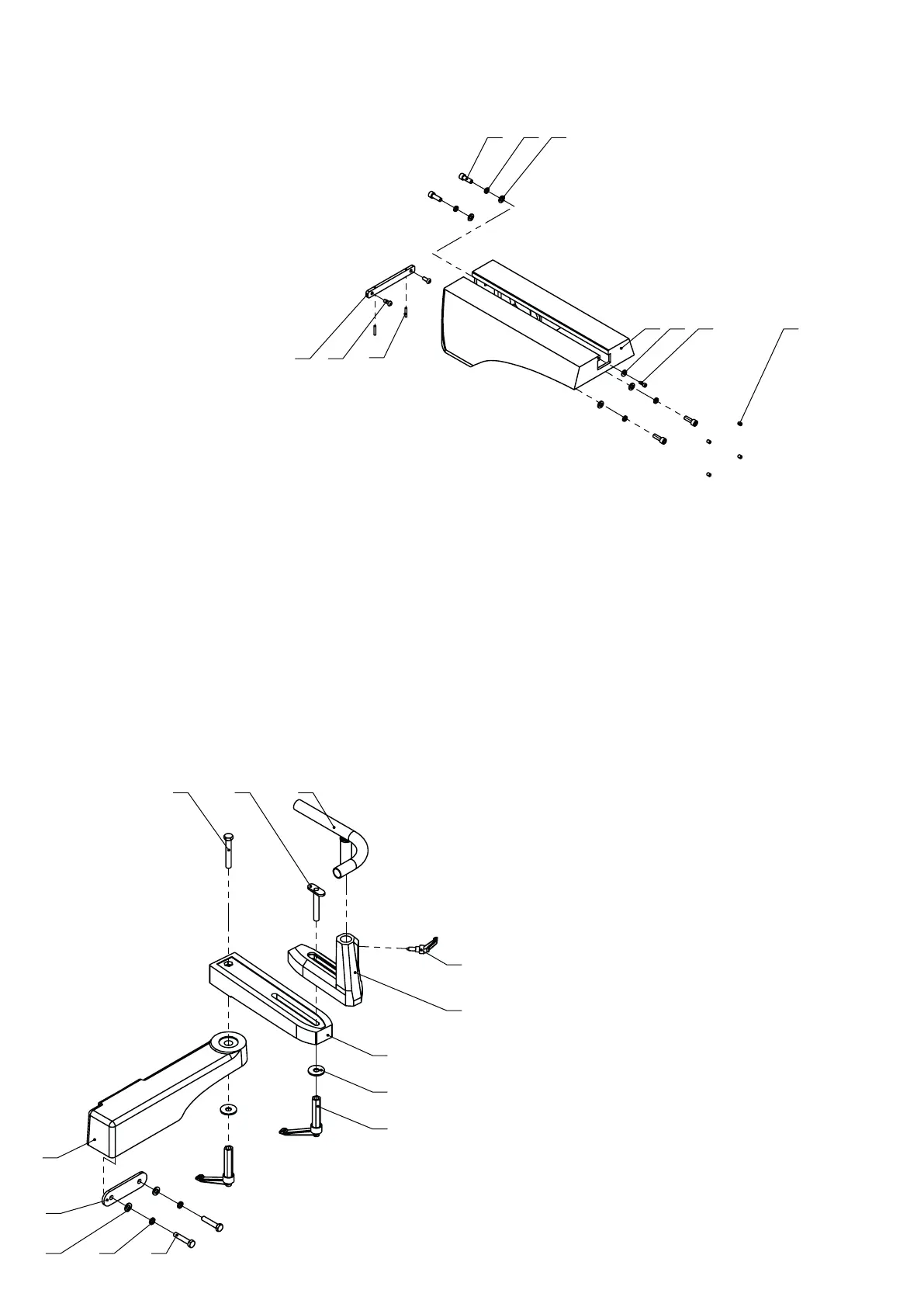

Coronet Envoy and Regent Optional Bed Extension
Coronet Envoy and Regent Optional Outrigger
No. Code Description
1 M10X30GB70D1Z M10 x 30 hexagon socket head screw
2 WSH10GB93Z Spring washer
3 WSH10GB97D1Z Flat washer
4 RCWL1601030001 Extension bed
5 WSH6GB96D1Z Large washer
6 M6X16GB70D1Z M6 x 16 hexagon socket head screw
7 M8X10GB77B M8 x 10 hexagon socket set screw
8 M5X25GB77B M5 x 25 hexagon socket set screw
9 M8X20GB70D2Z M8 x 20 hexagon socket button head screws
10 RCWL1601030002 Supporting plate
No. Code Description
1 M12X80GB5783Z M12X80 Hexagonal head bolt
2 RCWL1601050003 T-Type bolt
3 RCWL1201030100 Tubular bowl rest
4 JMWL1203041000 Ratchet handle
5 RCWL1601050004 Tool rest bracket
6 RCWL1201030004 Supporting seat
7 WSH12GB96D1Z Big washer
8 RCWL1201030008 Ratchet handle
9 M10X50GB5783Z M10 x 50 Hexagonal head bolt
10 WSH10GB93Z Spring washer
11 WSH10GB97D1Z Flat washer
12 RCWL1601050002 Locking plate
13 RCWL1601050001 Extension bracket
17. Parts Lists and Diagrams
1 2 3
4 5
6 7
8
9
10
爆炸图明细表
序号 代号 名称
1
M10X30GB70D1Z
内六角圆柱头螺钉
2
WSH10GB93Z
标准型弹性垫圈
3
WSH10GB97D1Z
平垫圈 A级
4
RCWL1601030001
辅助床身
5
WSH6GB96D1Z
大垫圈 A级
6
M6X16GB70D1Z
内六角圆柱头螺钉
7
M8X10GB77B
内六角平端紧定螺钉
8
M5X25GB77B
内六角平端紧定螺钉
9
M8X20GB70D2Z
内六角平圆头螺钉
10
RCWL1601030002
支撑板
延伸床身组件 RCWL1601030000
Sheet
1 32
4
5
6
7
8
13
12
11 10 9
爆炸图明细表
序号 代号 名称
1
M12X80GB5783Z
六角头螺栓(全螺纹)
2
RCWL1601050003
T型螺柱
3
RCWL1201030100
弯型刀架
4
JMWL1203041000
可调手柄(1)
5
RCWL1601050004
刀架支座
6
RCWL1201030004
支座
7
WSH12GB96D1Z
大垫圈 A级
8
RCWL1201030008
可调手柄
9
M10X50GB5783Z
六角头螺栓(全螺纹）
10
WSH10GB93Z
标准型弹性垫圈
11
WSH10GB97D1Z
平垫圈 A级
12
RCWL1601050002
锁紧板
13
RCWL1601050001
延伸床身
后旋组件 RCWL1601050000
Sheet
