13
1. Attach the upright column to the base using two M10 x 80 mm bolts,
ensuring that there is an M10 washer between each bolt and the upright
column and another M10 washer between each M10 nut and the base,
Fig.9.1. Repeat this process to assemble the second base onto the second
upright column.
2. Attach the upright plinth to the upright column using two M10 x 80 mm
bolts to the desired height, making sure that the overhang of the plate on
top of the plinth is facing towards the inside of the legstand. Also ensure
that there is at least one hole space between the two bolts and that both
bolts pass through the upright column. Fig.9.2. Repeat this process to
complete the assembly of the second leg.
Please note: The leg stand is adjustable in height to allow for
comfortable use of the lathe. As a general rule, the centre height
of the lathe should be at elbow height.
3. Attach the female cross brace to one of the upright columns using two
M10 x 80 mm bolts. Attach the male cross brace to the remaining upright
column in the same manner, Fig.9.3.
4. To complete assembly of the legstand, insert the male cross brace into
the female cross brace, ensuring that the distance from the inside of one
leg to the other is approximately 590 mm. Hold in place using two M10 x
25mm set screws. Fig.9.4.
The remaining bolts, nuts and washers are used to attach the lathe to
the stand.

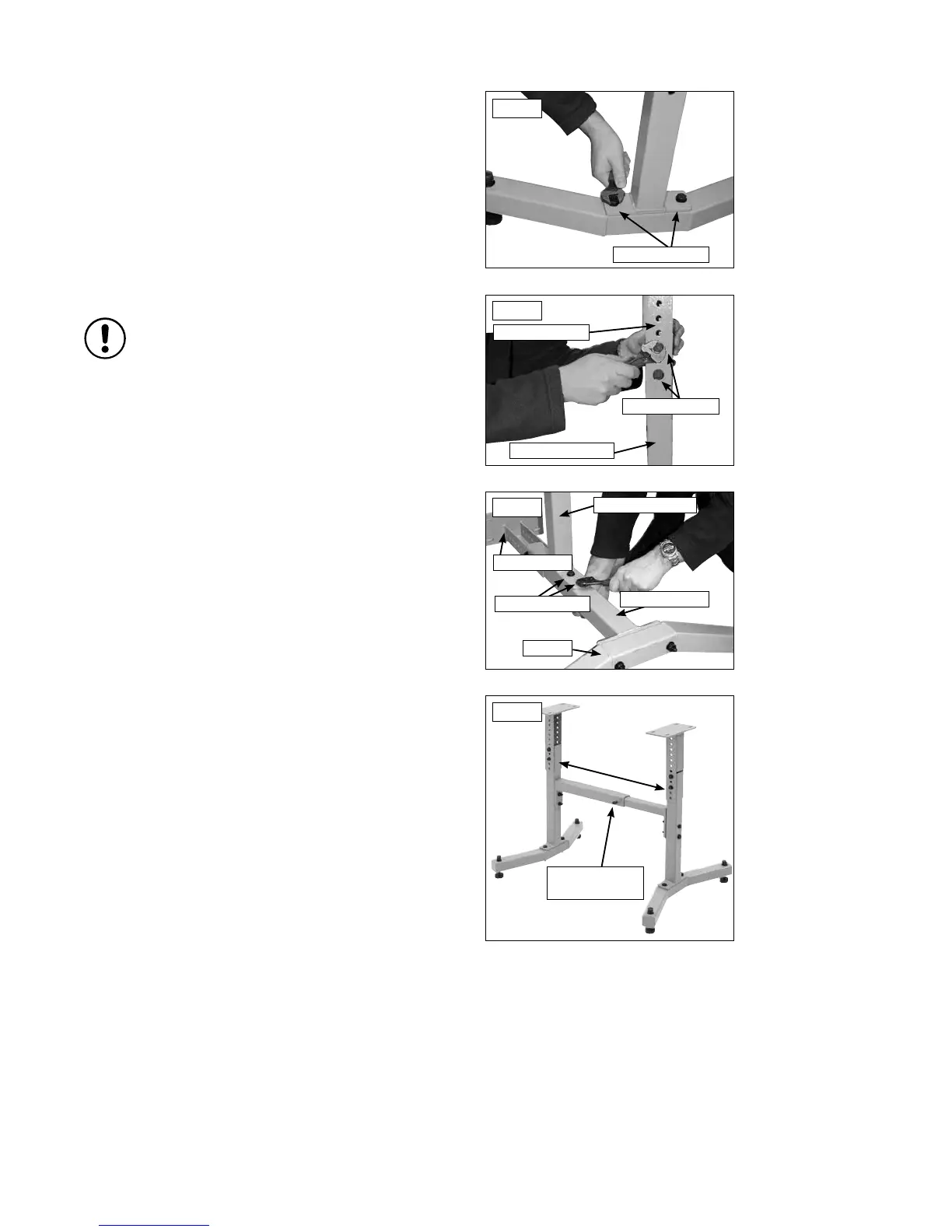

9. Assembly of the Optional DML305/A Leg Stand - cont.
80 mm M10 bolts
Fig.9.1
Upright column
Upright plinth
80 mm M10 bolts
Fig.9.2
Base
Upright column
Female cross brace
Upright plinth
80 mm M10 bolts
Fig.9.3
M10 x 25 mm set
screws
590 mm
Fig.9.4
