Record Power DML305 - Assembly of the Optional DML305;L Extension Support and DML305;E Bed Extension

14
10. Assembly of the Optional DML305/L Extension
Support and DML305/E Bed Extension

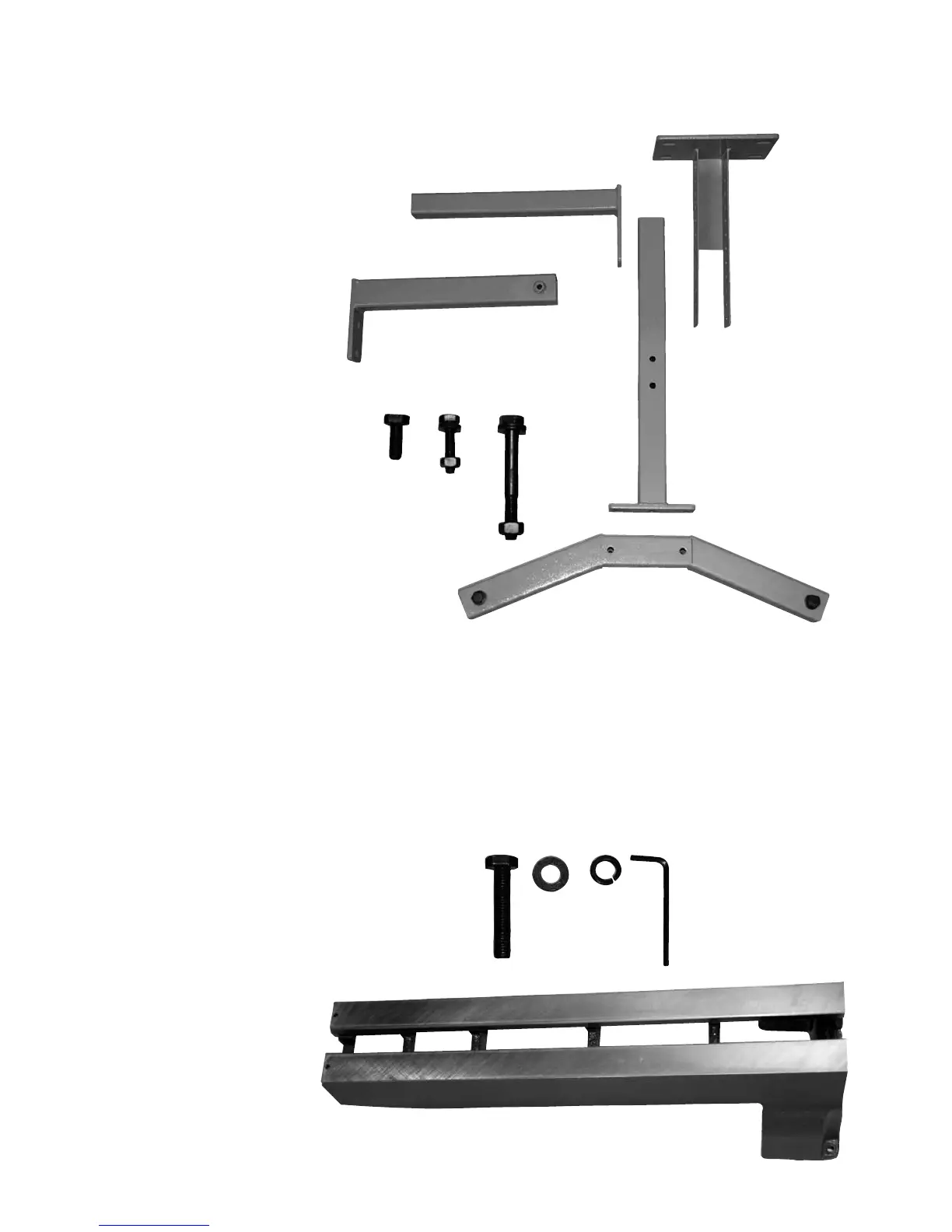

Contents of the DML305/L Extension Support Package
1 Upright plinth
2 Male cross brace
3 Female cross brace
4 M10 x 25mm set screws x 2
5 M8 x 35 mm bolts, nuts and washers x 2
6 M10 x 80 mm bolts, nuts and washers x 6
7 Upright column
8 Base
2
3
7
8
1
4 5 6
Contents of the DML305/E Bed Extension Package
1 M10 x 50 mm bolts x 2
2 M10 washers x 2
3 M10 spring washers x 2
4 Hex wrench
5 Bed extension
5
2 3 41
