10.7. WG250/G Short Knife Jig
Using the Short Knife Jig
Place the support arm in the upper position.
Adjust the depth screw and locking knob to allow the blade to be held in
the jig as shown in Fig 10.7.1 and secure the blade in place, ensuring the
cutting edge is as parallel to the clamp as possible.
Rest the stop of the jig on the support arm as shown in Fig 10.7.2.
Adjust the height of the support arm until the blade of the knife meets the
stone at the required angle. The fine adjustment knob can be used to alter
the position of the stop to achieve the most accurate angle possible.
Pass the blade across the stone to sharpen the bevelled edge, tilting the jig if
necessary to follow the curve of the blade.
Use to sharpen:
• Knives up to 100 mm (4”) in length
• Pocket knives
• Small cutlery knives

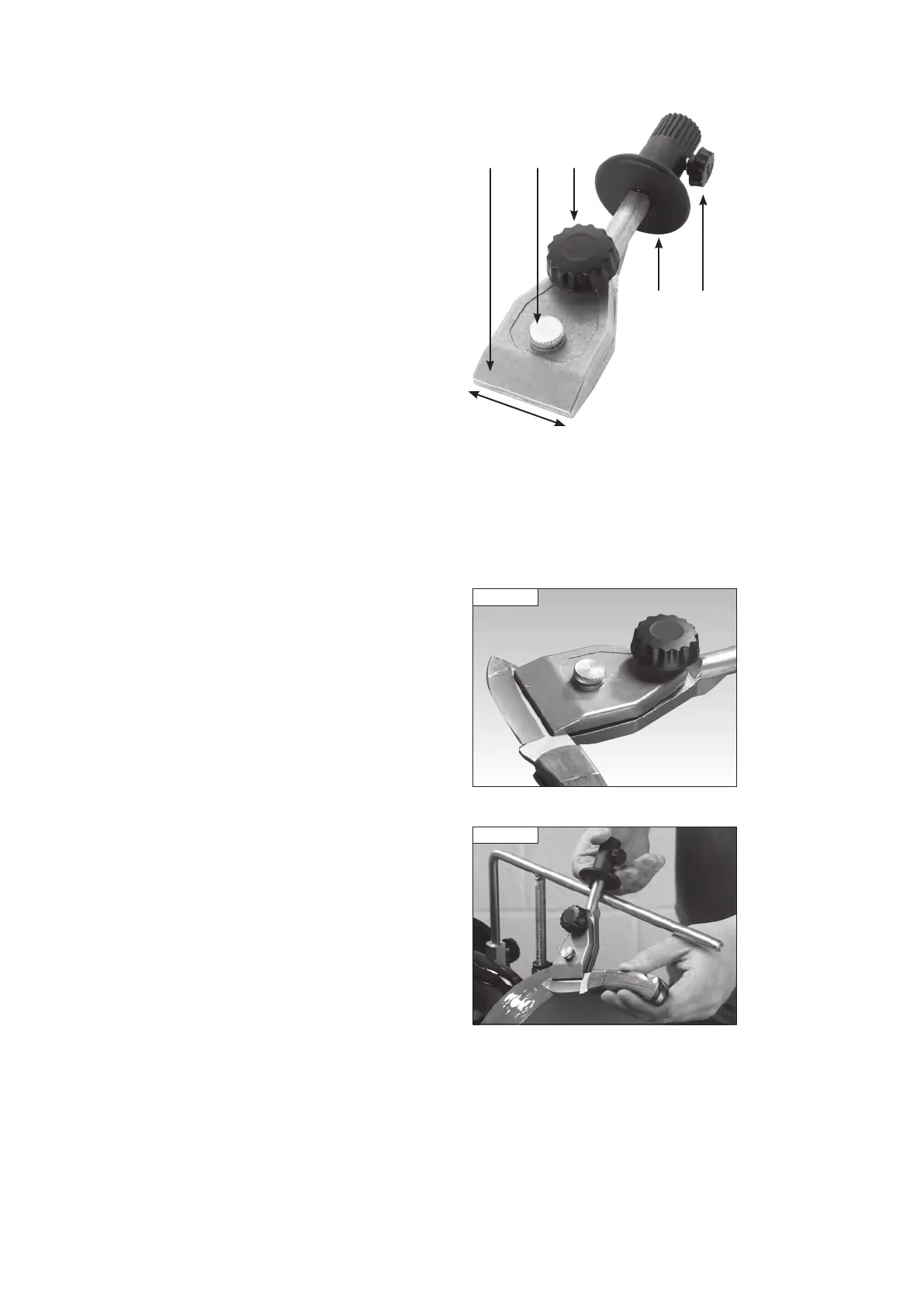

A Clamp
B Depth screw
C Locking knob
D Stop
E Fine adjustment knob
A B C
D
45 mm
E
Fig 10.7.2
Fig 10.7.1
