SERIES 2000 PAGE 2.
INSTALLATION INSTRUCTIONS
ELECTRICAL PREPARATION
ELECTRICAL PREPARATION
Before preparing jambs, determine the method and requirements for the electrical wiring
involved and whether mats or other type of activation is used.
For mounting on-off-hold switch proceed to Operator Installation section.

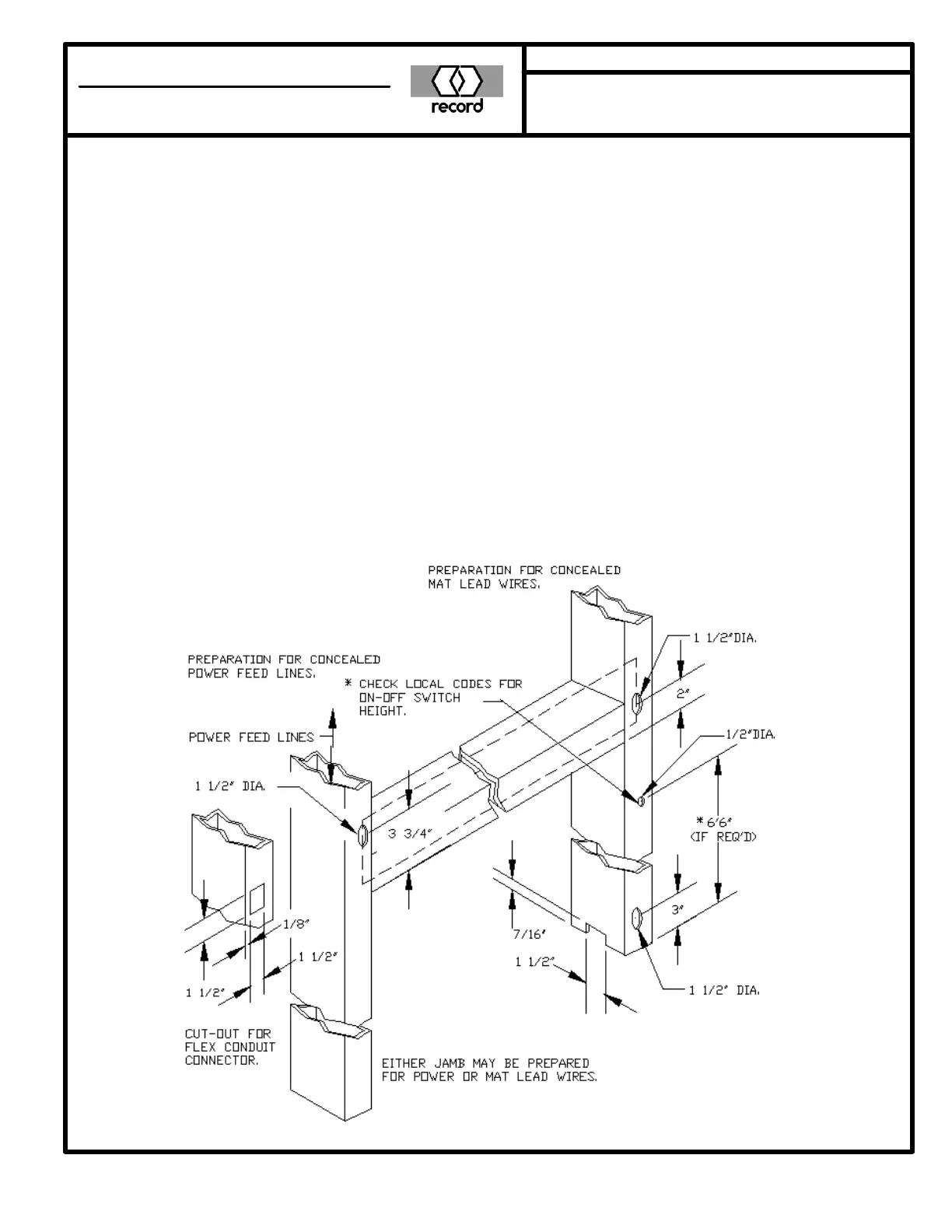

CAUTION - Some local codes require on-off-hold open switches to be installed no higher
than 6’-6” above the floor. A suggested method of installation is to prepare a 1/2” dia. hole
as shown. To install, place switch through top hole (1-1/2” dia.). While holding lead wires,
lower switch to second hole (1/2” dia.) and fish out toggle end of switch.
Install tabbed legend washer with mounting nut and secure with self-tapping screw.
OWNER INFORMATION TO BE PROVIDED BY THE DISTRIBUTOR / INSTALLER
• After the installation instruct the owner on the safe operation of the door.
• Location and proper use of the power switches.
• Location of the main cutoff breaker.
• Necessary warnings not covered in general instructions.
• Owners Manual and Daily Safety Checklist.
• Phone number(s) for the local servicing dealer.
• What to do in the event that a dangerous situation should occur, and how to shut the doors
down and call for service.
