Sensor Values as a starting point only. Every sensor must be set up and tested for
compliance with EN16005
Activations (AKI & AKA ) – Sensitivity 15
Safety (SI & SA) – Filter –10 or 20
Field Size – 3 (BI part)
ROW 1 – ON
ROW 2 – ON
ROW 3 – OFF
If the floor is dark grey or black you may need to remove the X in suppression
-------------------------------------------------------------------------------------

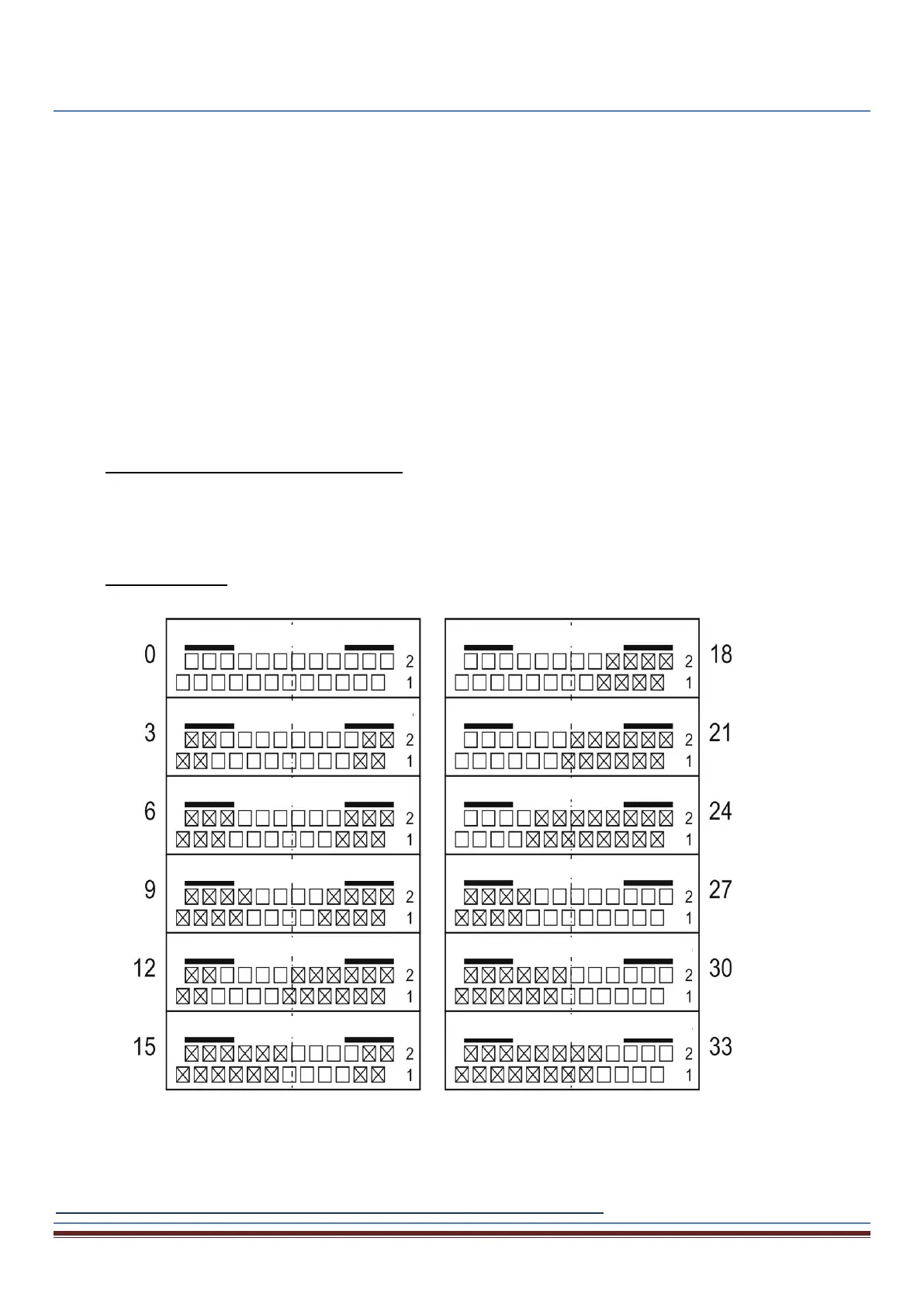

Below is a guide (Birds Eye View) – Of different Threshold safety Fields you can map. To
change to the required field map change the corresponding Number – Default is 0
E.g If you had a narrow door way you may select Map 3 or for No Approach from the Right you
select Map 18
FIELD SIZE S
Now It Is time to set up Your Speeds & running Parameters
