1. Fit Sensors. Please see separate manuals supplied with the sensor for full installation and
adjustment details.

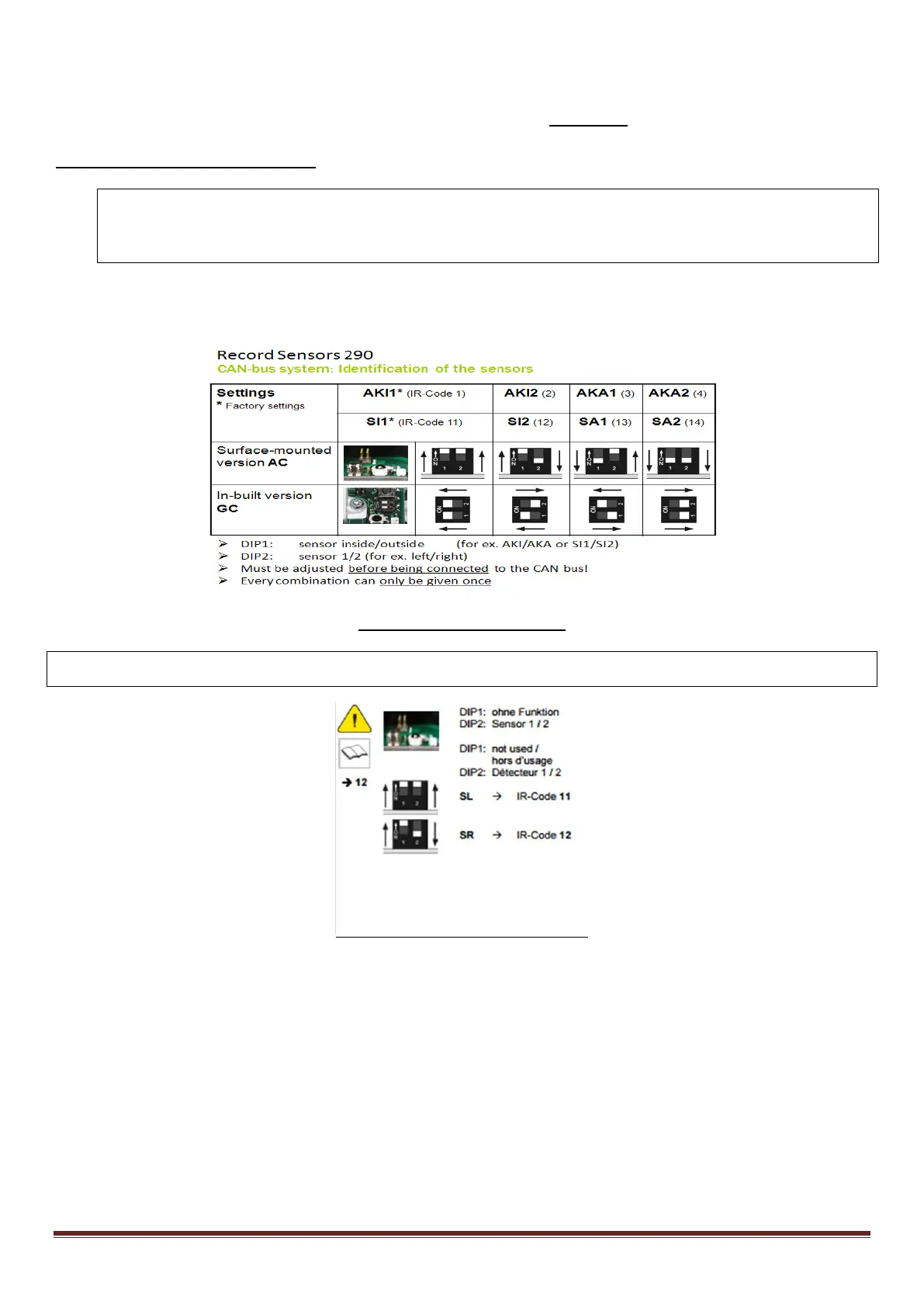

2. Set dipswitches so the system knows what type they are – See Below
RIC 290 Dual Threshold and Safety
AKI = Inner Activation AKA = Outer Activation
SI = Inner Threshold Safety SA = Outer Threshold Safety
Most Situations only call for 1x Dual sensor per side of the operator but you can have 2x per side on wider
openings and as such you need to address them. E.g AKA 1 = Outer Sensor 1 & AKA 2 = Outer sensor 2.
AIS290 Side Screen Sensors
SL = Left hand Side Screen Safety sensor SR = Right hand Side Screen Safety sensor
To Next Page
