Record STA20 - System 20 Basic Wiring; Control Board and Sensor Connections; Sensor Identification and Options

RECORD UK DIRECT 25-03-2019 Page 7
28 27 26 25
5 7 6 3 4 11 12

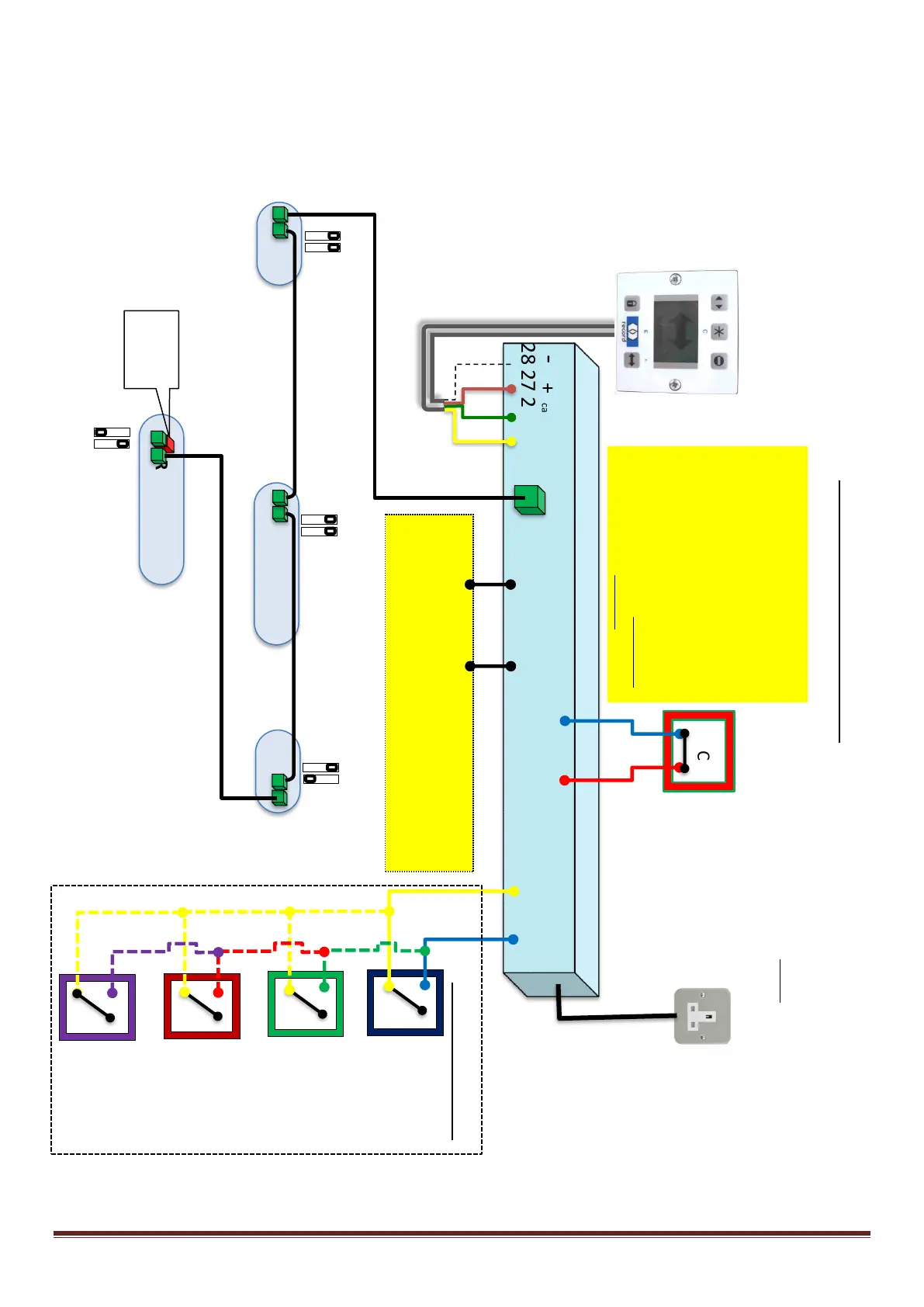

Control Board Connections
N/C
- + can L Can H
+24V 0V AUX01 +24 V AUX00 SSK SSKA
RIC290 AKI
RIC290 AKA
CAN bus termination
The Fire Alarm Relay is
Located in the same
position as the spur.
An independent
conduit is required
–
1
st
Entry Key
Switch
–
N/O
Basic Setup for System 20
N/C fire alarm contact to operate
24hrs all the time.
 Safety Opening (
SOK)
 Program the AUX00 to
SOK/NSK and then the
SOK/NSK menu to SOK
 For Open If Not Locked:
Daytime operation only,
programme for
Emergency
Opening
CAN BUS
Break Glass Switch
– N/O
If using standard switching side screen safety
sensors
then: Program AUX01 to SIO
And then program the SIO configuration for the door
to slow into creep mode upon sensor activation
24hour Access Control
Switch
– N/O
13A Plug Socket
within
1 meter from
the door on the right
hand side.
Set Address 0
/ 0 for AKI
Before Applying Power
Set Address 1 / 0 for AKA Before Applying Power
Screened Cable BDE
AND / OR Options
System 20 requires
2xRIC290 to cover the threshold area. Option 1 can use standard sensors for side safety Option 2 uses the CAN BUS sensors from Record Any more items than those shown will require
a FEM
-0 control board.
Internal Push To Exit Only Switch
– N/O
The Sensors may be
surface mounted (AC) or recessed into the cover (GC). When recessed into the cover a 150mm cover is
required
AIS 290 S / Right
AIS 290 S / Left
Set Address 0 / 1
Set Address 0 / 0
