Red Sea MAX - Mechanical Filtration Material Installation; Filter Comb and Shutter Installation

Red Sea MAX User Manual

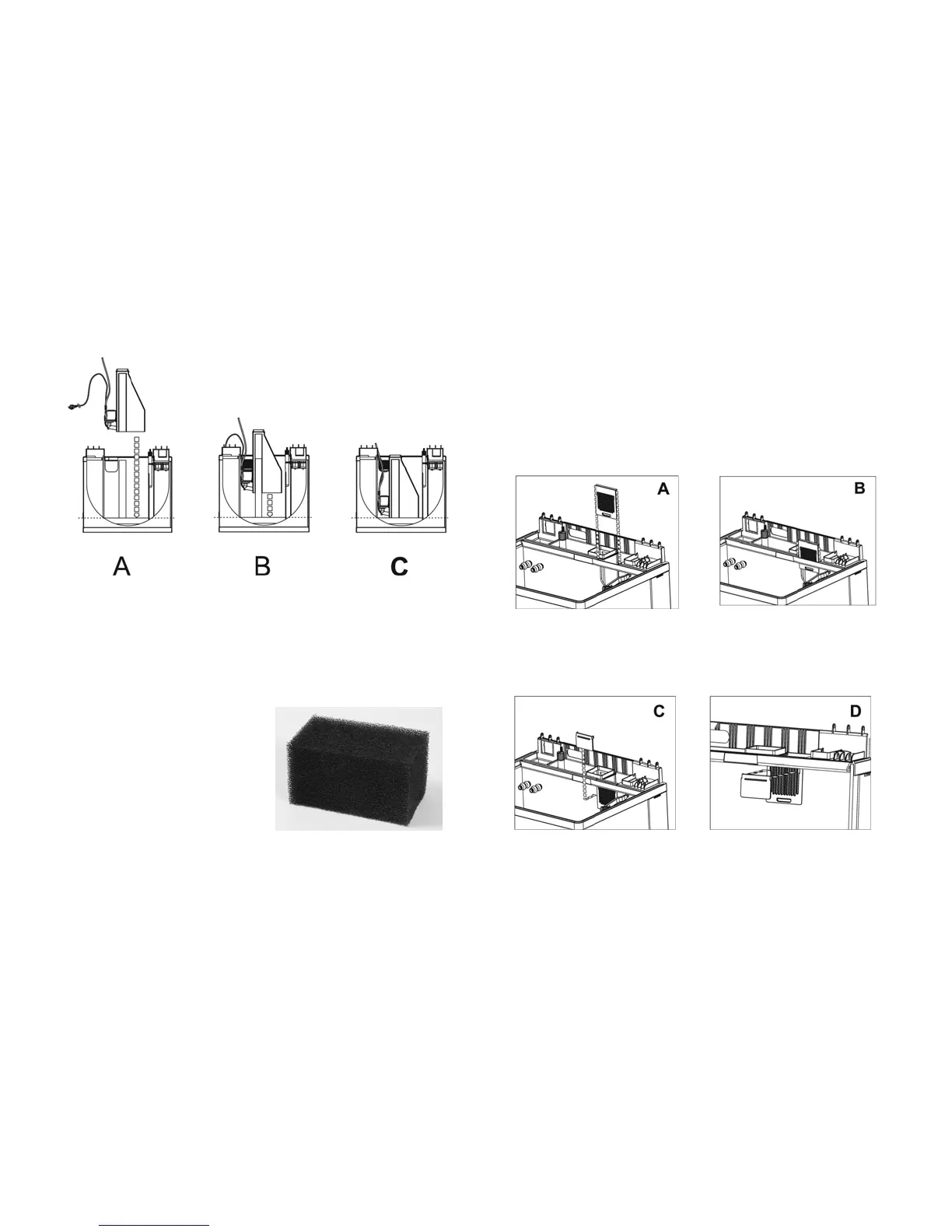

Figure 11: Inserting protein skimmer
8.
1.
2.
The collection cup should be placed in position after the
hood has been attached (see below).
Mechanical filtration material
Slide the coarse black foam
vertically into the skimmer
chamber, bringing it to rest
on top of the skimmer
pump.
Place the fine white pad on
top of the black foam in
the chamber, whilst
ensuring that no pressure
Figure 12: Mechanical
filtration material
is put on the air line.
Filter comb and shutter
1. Slide the filter comb into position in the hole at the top of
the tank's back wall.
F
2. ttach the filter shutter to the ribs in the filter comb and
push it down to its lowest position.
igure 13: Inserting filter comb
A
12
