Power center

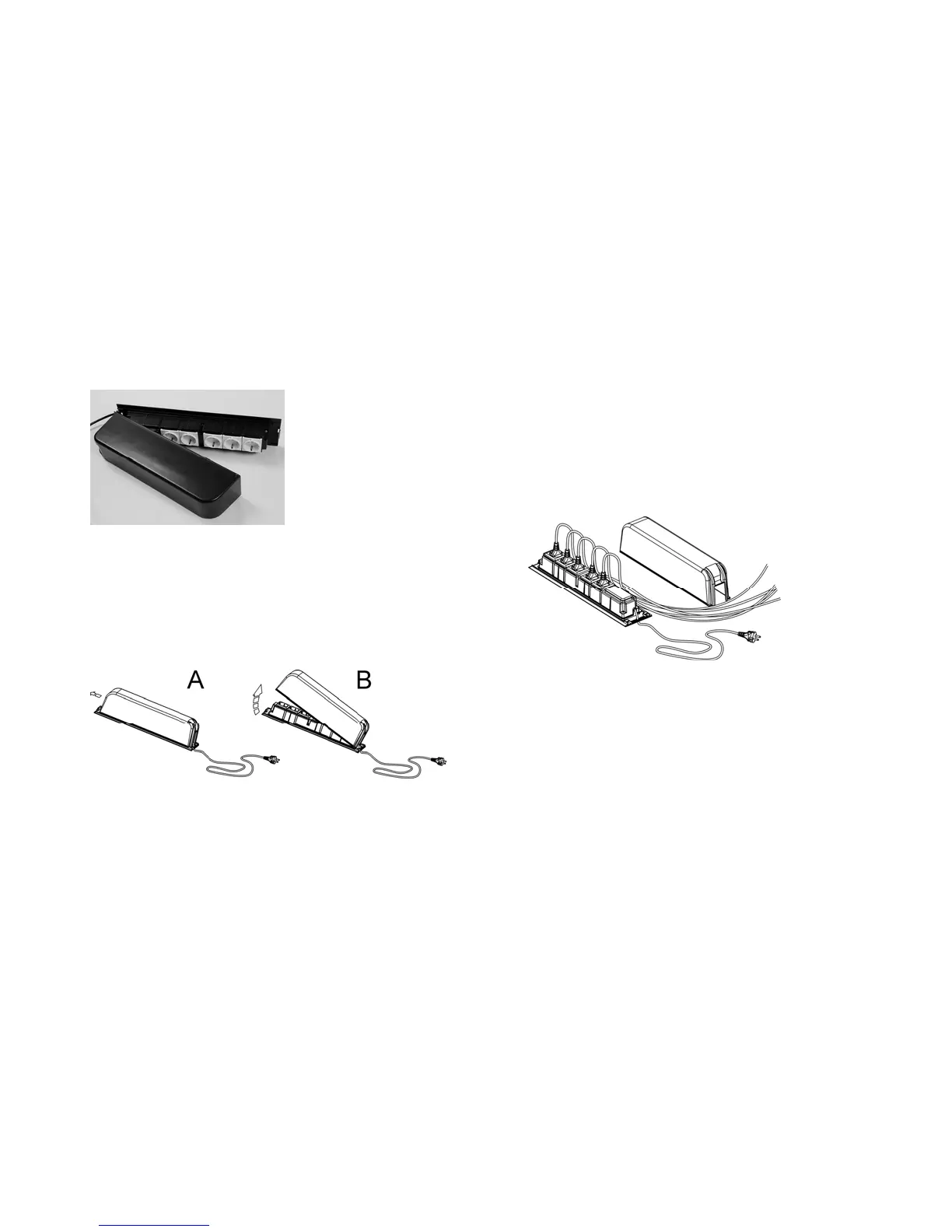

Figure 24: Power center
1.
2.
Ensure that your hands are dry.
Remove the power center splash cover by sliding it away
from the power cord and lifting. Familiarize yourself with
how the splash cover locks in position.
Figure 25: Removing the splash cover
3.
4.
5.
6.
7.
8.
Connect the cables from the various components to the
power center in the following order, placing the plugs in
the matching sockets:
Connect the circulation pumps in the two sockets #4 and
#5.
Connect the heater plug in socket #3.
Connect the skimmer plug in socket #2.
Connect the hood cord in socket #1.
Gather the component cables together and replace the
splash cover.
Figure 26: Replacing the splash cover
9. Insert the power center, narrow side in and component
power cords down, into the niche in the back right corner
of the aquarium. Use the lip at the bottom of the niche to
position the box properly.
16

Red Sea MAX Specifications

General

Type	Aquarium
Sizes	Various
Filtration	Integrated
Lighting	LED
Heater	Included
Protein Skimmer	Included
Circulation Pump	Included
