Red Sea MAX User Manual
6.

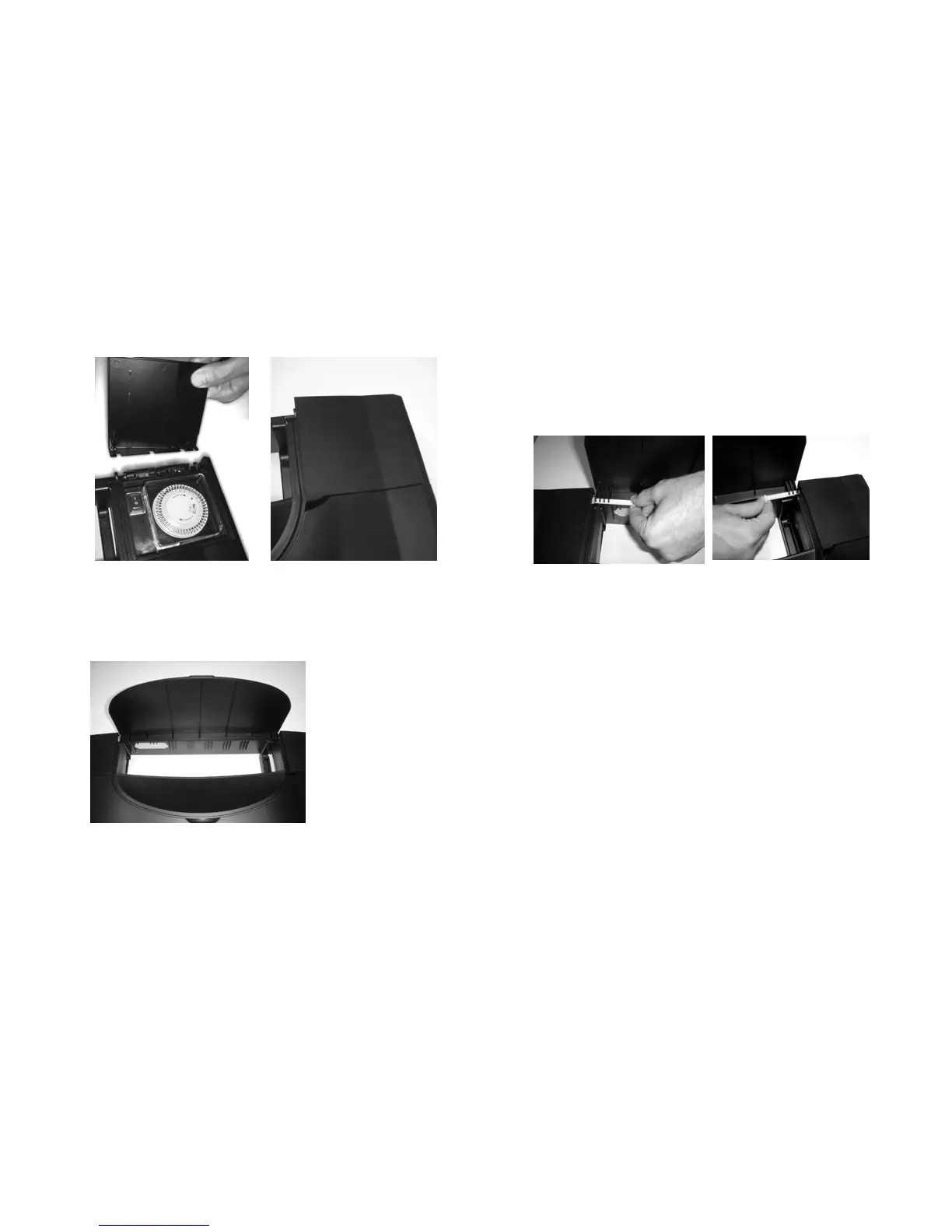

Figure 17: Positioning lighting control cover
5. Hold the skimmer cover in the "open" position over the
skimmer chamber, lining up its hinges with those of the
hood.
Figure 18: Positioning skimmer hood
Insert the hood pins that you removed for unpacking,
attaching both the skimmer cover and the lighting control
cover to the hood. The covers should open and close easily
with the pins securing the hinge.
Figure 19: Attaching the skimmer hood
To secure the hood supports
1.
2.
3.
Fold back the front of the hood.
With one hand, lift the open hood and support it.
With your free hand, straighten the hood supports on
either side of the hood and insert the support pins to
connect the supports to the hood as shown (some force
will be required). Do not use any tools (pliers or hammer)
to perform this operation. If you have difficulty, check the
alignment of the pins with the hole and try again.
