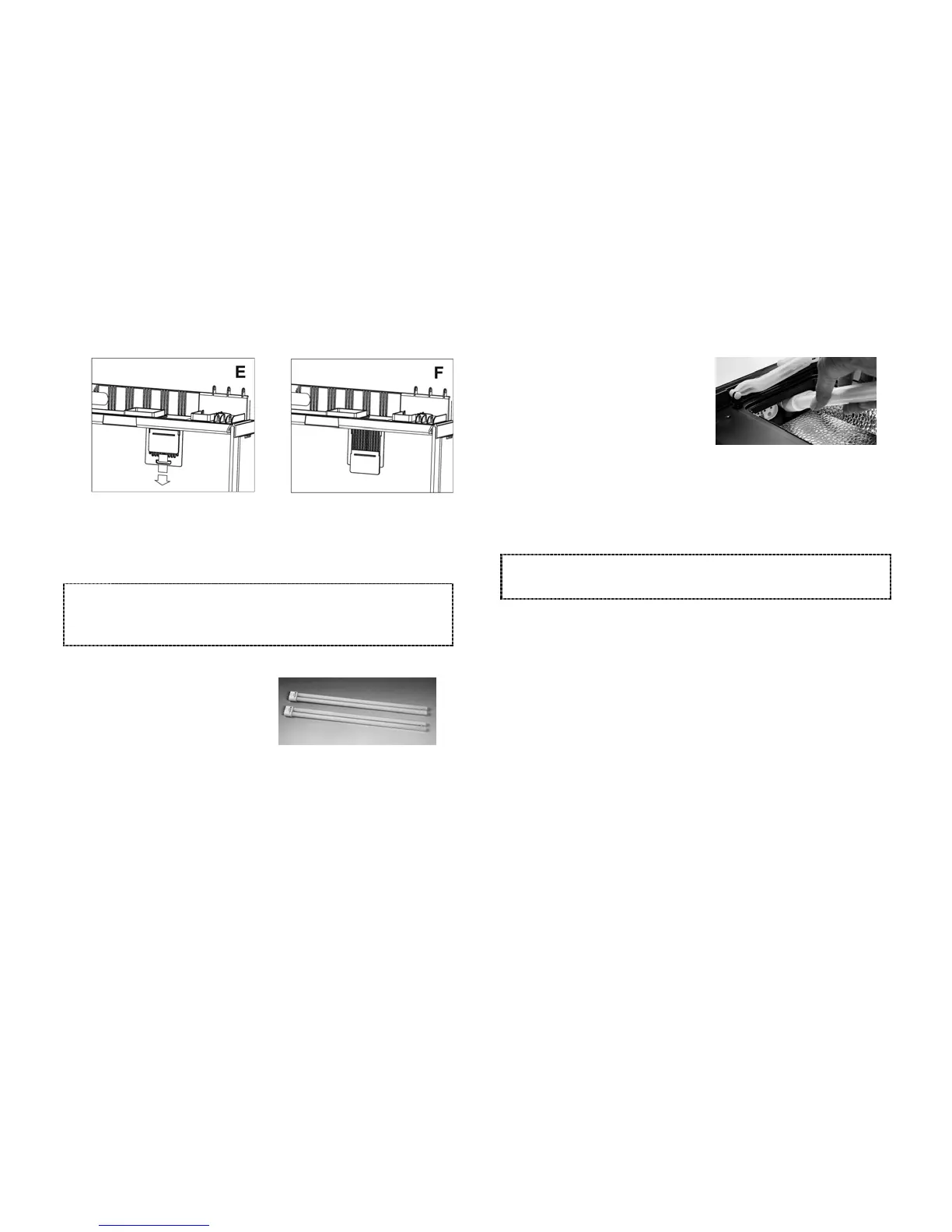

Figure 14: Attaching and positioning filter shutter
Light tubes
NOTE Only use Red Sea Max lighting tubes. The hood is
designed for the special T5 tubes, which are smaller
than the regular T6 power compacts (biax).
1.
2.
Using the protective
packaging as a cushion,
place the hood upside down
on a level surface.
Remove the 8 plastic screws
from the light’s transparent
lens.
Figure 15: Light tubes
3.
4.
5.
Remove the lens and place in on a smooth surface to
prevent scratches.
Place the lighting tubes in position by first inserting the
electrical connectors into their sockets and then pushing
the tubes into the metal
clips. A small amount of
force may be required to
push the tube through the
opening in the hood.
Replace the cover securely,
ensuring that the gasket
Figure 16: Inserting bulb
around its inner edge is properly positioned.
6. Replace the 8 screws. You are now ready to place the
hood on the aquarium.
NOTE After initial assembly, replacing the light tubes can be
performed with the hood attached to the aquarium.
To attach the hood
1.
2.
3.
4.
Thread the hood's electrical cord through the cord access
hole in the top of the tank.
Place the hood on top of the tank, lining up the cutout in
the hood with the protein skimmer chamber of the tank.
Make sure that the hood fits securely around the rim of
the tank; it may be necessary to adjust the position of the
hood supports to do this.
Place the lighting control cover onto the hood.
13
