10
2 INSTALLATION
12V
Loads
Load
Fuse
30A
Fuse
All ground points must
be connected to chassis
earth.
Auxiliary
Battery
Battery
config
wire
Start
Battery
30A
Fuse
INPUT
BCDC1220
12V
Loads
Load
Fuse
30A
Fuse
All ground points must
be connected to chassis
earth.
Auxiliary
Battery
Battery
config
wire
Start
Battery
30A
Fuse
INPUT
To vehicle ignition
BCDC1220-IGN

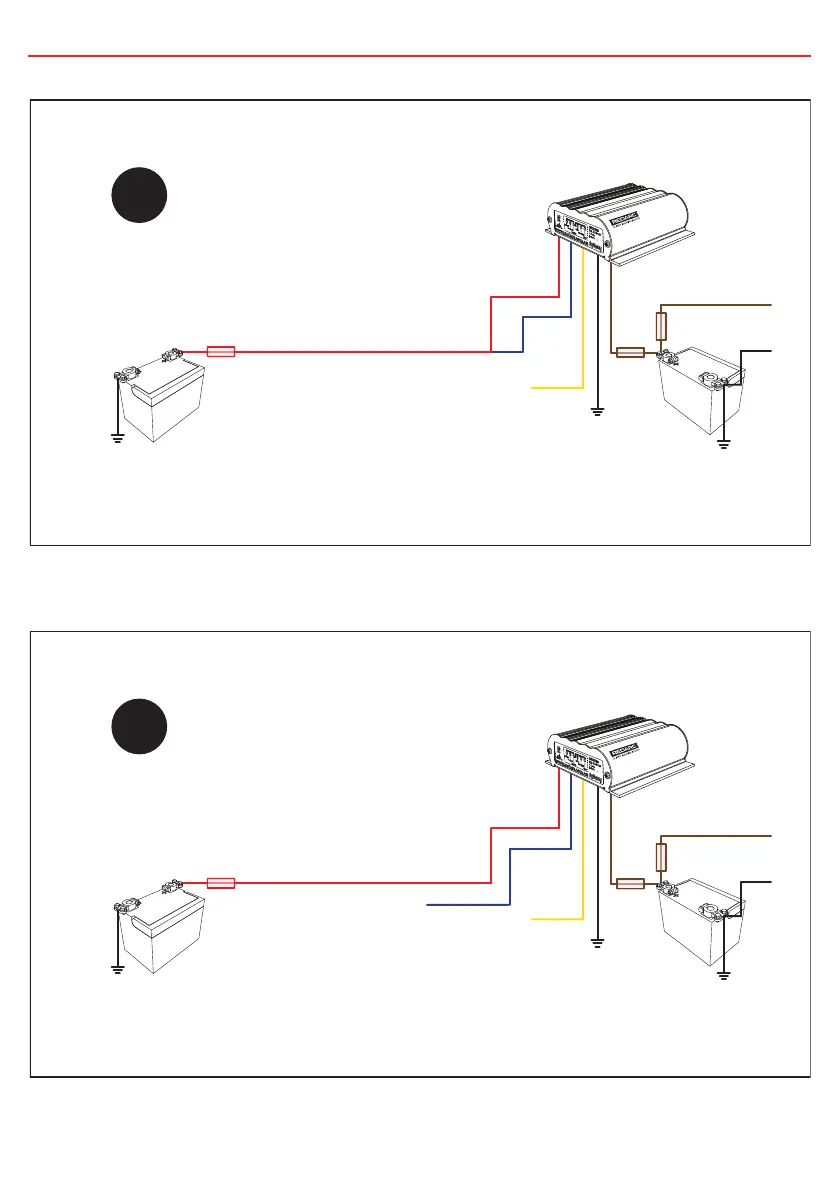

Figure 2.7b - BCDC1220-IGN 12V Starter battery installation
Figure 2.7a - BCDC1220 12V Starter battery installation

Table of Contents

Other manuals for Redarc BCDC1220

Preview: Manual
Manual20 pages
Preview: User Manual
User Manual12 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Redarc BCDC1220 and is the answer not in the manual?

Redarc BCDC1220 Specifications

General IconGeneral
Input Voltage9 - 32VDC
Output Voltage12V DC
Output Current20A
Dimensions150mm x 120mm x 37mm
Weight0.65 kg
Battery Types SupportedAGM, Gel, Calcium
Charger TypeDC to DC
Protection FeaturesOver Temperature, Short Circuit, Reverse Polarity
