2 INSTALLATION
2.9 Fusing
REDARC recommend using MIDI style bolt down fuses as
they ensure a low resistance connection. The REDARC
FK40 fuse kit is recommended.
Blade type fuses are not recommended as they can result
in a high resistance connection which causes excess heat
and may damage the fuse holder and/or the wiring. Self-
resetting circuit breakers are not recommended as they
may trip prematurely due to the heat generated by the
current flowing through the wires.

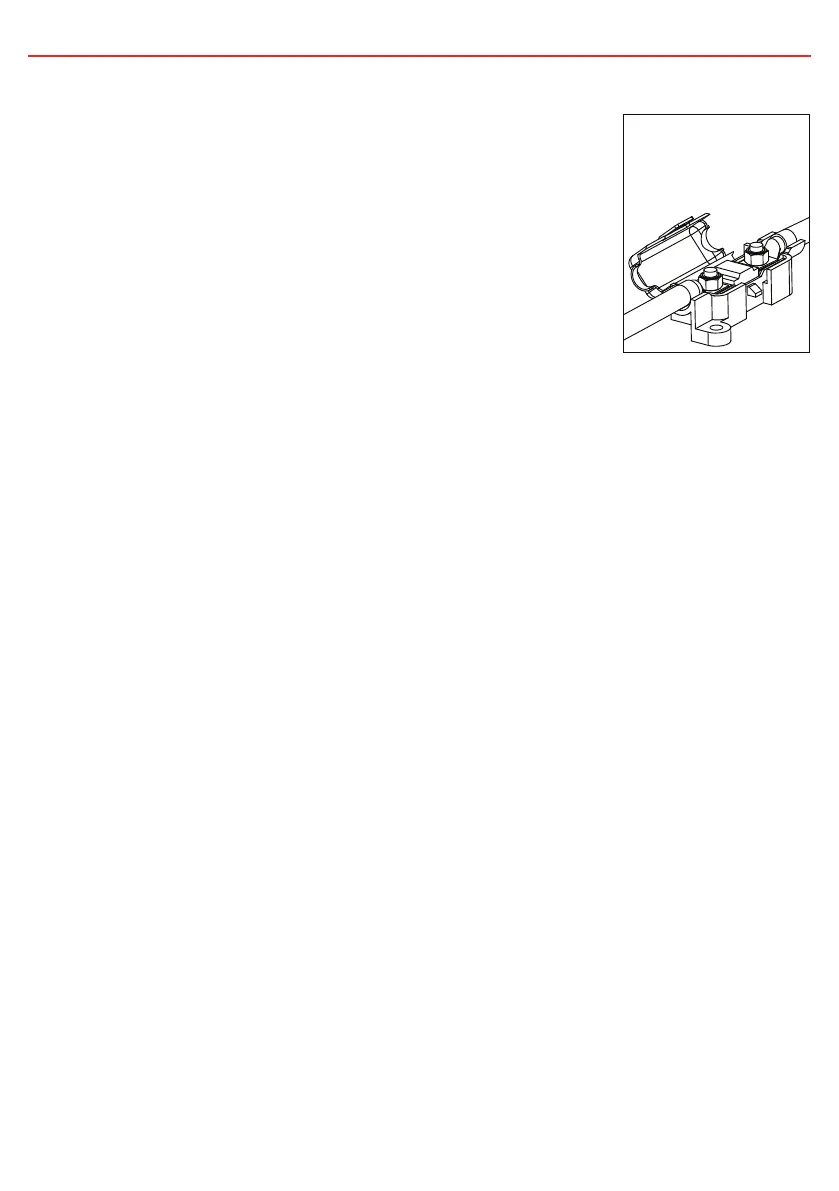

A single fuse and holder
setup from the Fuse Kits
available from REDARC.
Part number FK40 (40A).
