Redback RB4 5KVA - SPARK PLUG AND ARRESTER MAINTENANCE

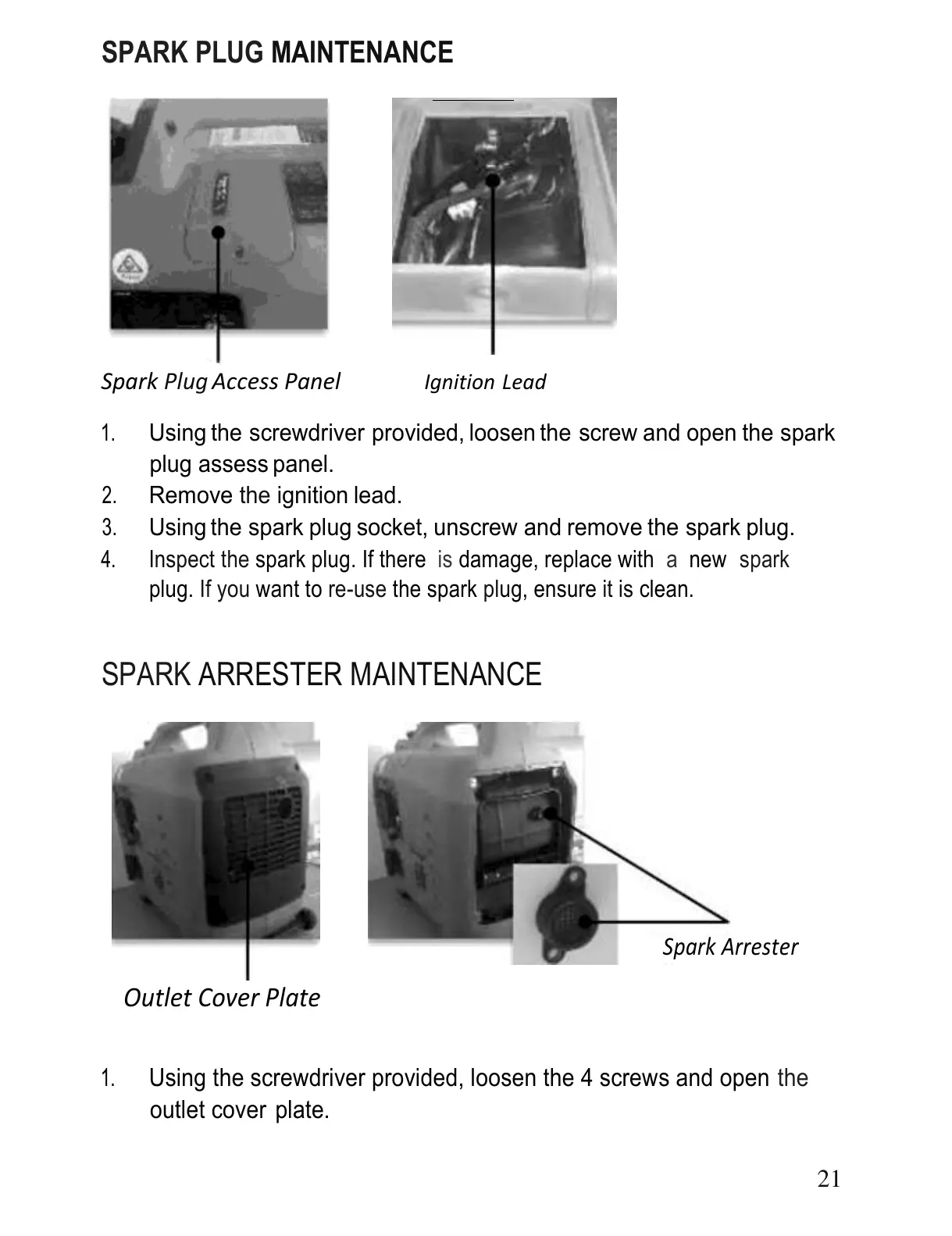

SPARK PLUG MAINTENANCE
Spark Plug Access Panel Ignition Lead
1. Using the screwdriver provided, loosen the screw and open the spark
plug assess panel.
2. Remove the ignition lead.
3. Using the spark plug socket, unscrew and remove the spark plug.
4. Inspect the spark plug. If there is damage, replace with a new spark
plug. If you want to re-use the spark plug, ensure it is clean.
SPARK ARRESTER MAINTENANCE
Spark Arrester
Outlet Cover Plate
1. Using the screwdriver provided, loosen the 4 screws and open the
outlet cover plate.
21
