STRATO CHARGED ENGINE  GZ25N
6. SERVICE GUIDE

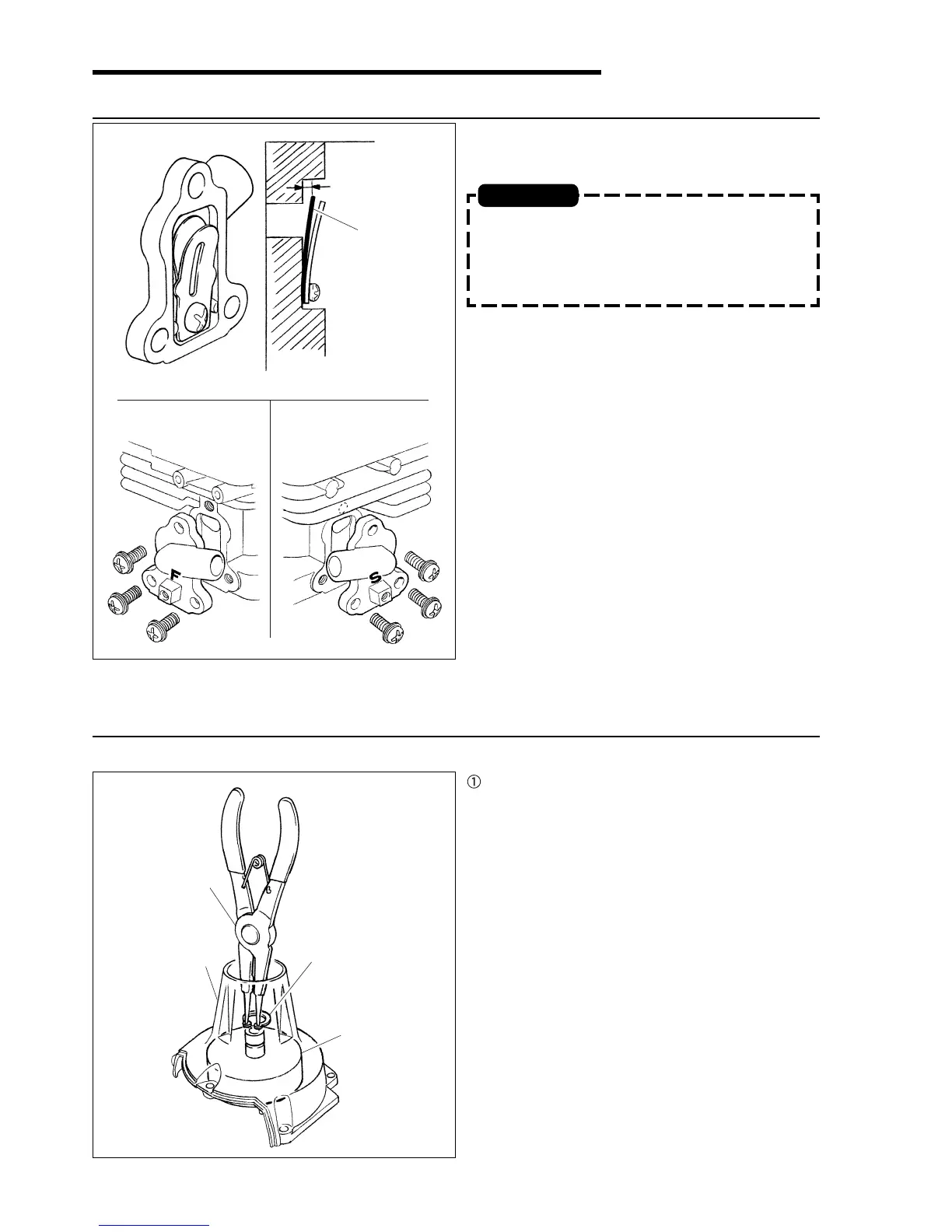

6-17 Mounting of Reed Valve
Checkthatthereisnoforeignmatterinsidethevalve
case.
Important:
Check the gap between the valve case and the reed
valve.
Replace with new valve if the gap is larger than
0.2mm (0.008in.), or the valve is distorted.
Screwlockagentshallbeappliedtothereedvalve
andthestopperfixingscrew.
ThereedvalvecasehasamarkingeitherSor
F.
Sisforthestarterside,andFforthefanside.
Assemblingpositionshallnotbemixedup.
Max.0.2mm

ReedValv
e
6-18 Removal of Clutch Drum
Removethesnapringontheclutchdrumend
usingasnapringpliers(5500-96110).
1) Removing Snap Ring
Snap Ring
Pliers
Snap Ring
Clutch Drum
Housing Assy
