11

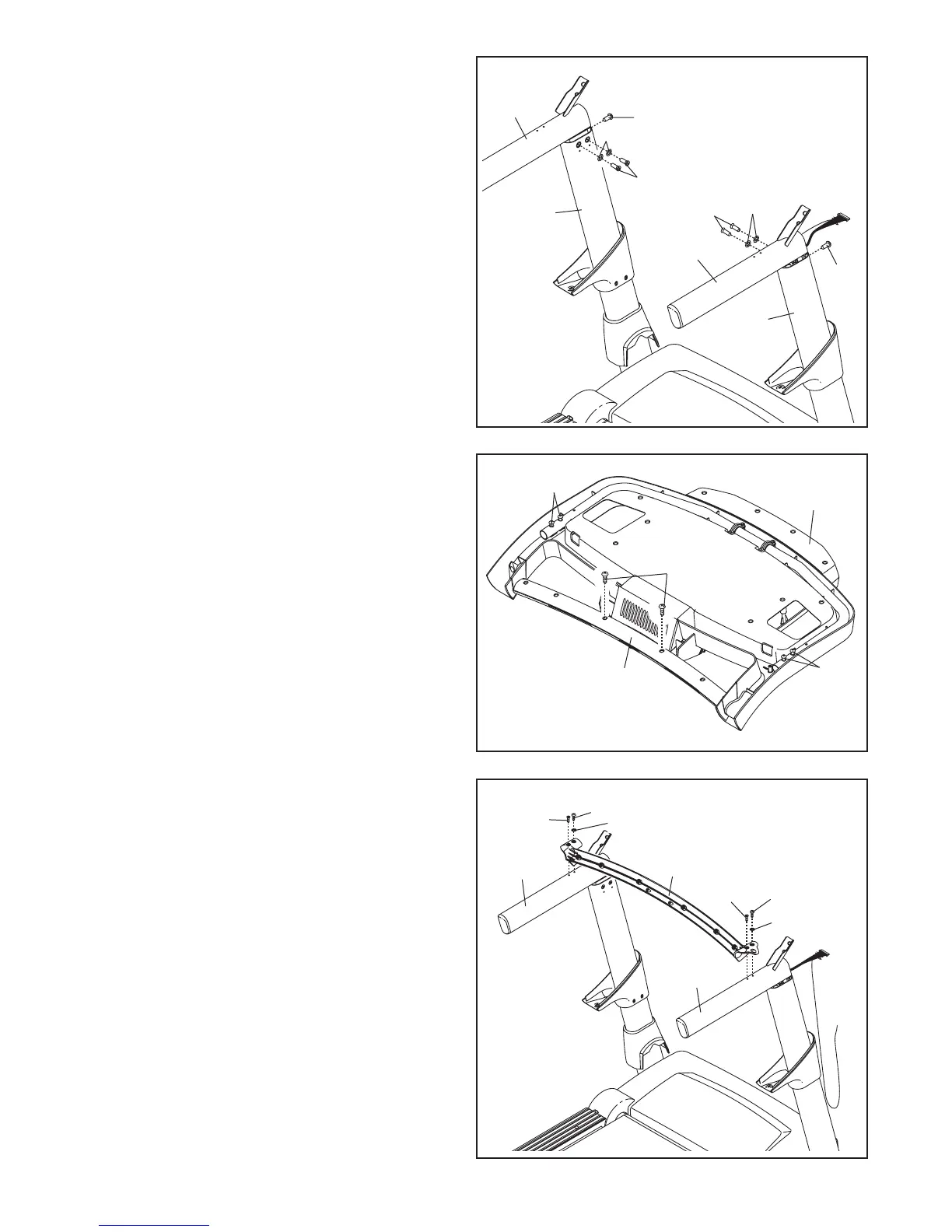

9. Attach the Right Handrail (85) to the Right
Upright (81) with two 5/16" x 1" Screws (5), two
5/16" Star Washers (13), and a 5/16" x 1 1/4"
Bolt (2). Do not fully tighten the Screws and
Bolt yet.
Attach the Left Handrail (84) in the same
way.
9
80
85
84
2
2
5
5
13
13
81
10. Set the console assembly face down on a soft
surface to avoid scratching the console assem-
bly. Remove the two Screws (A). Next, lift off the
Crossbar (107). Discard the two Screws.
Remove and save the four 1/4" x 1/2" Screws
(3). They will be used in step 13.
107
Console
Assembly
A
3
3
10
11. IMPORTANT: To avoid damaging the
Crossbar (107), do not use power tools and
do not overtighten the #10 x 3/4" Screws (4)
or the #10 x 3/4" Flat Head Screws (109).
Orient the Crossbar (107) as shown. Attach the
Crossbar to the Handrails (84, 85) with two #10
x 3/4" Flat Head Screws (109), two #10 x 3/4"
Screws (4), and two #10 Star Washers (12) as
shown. Start all four Screws, and then tighten
them.
107
84
4
4
11
109
109
85
12
12
To Next Page
