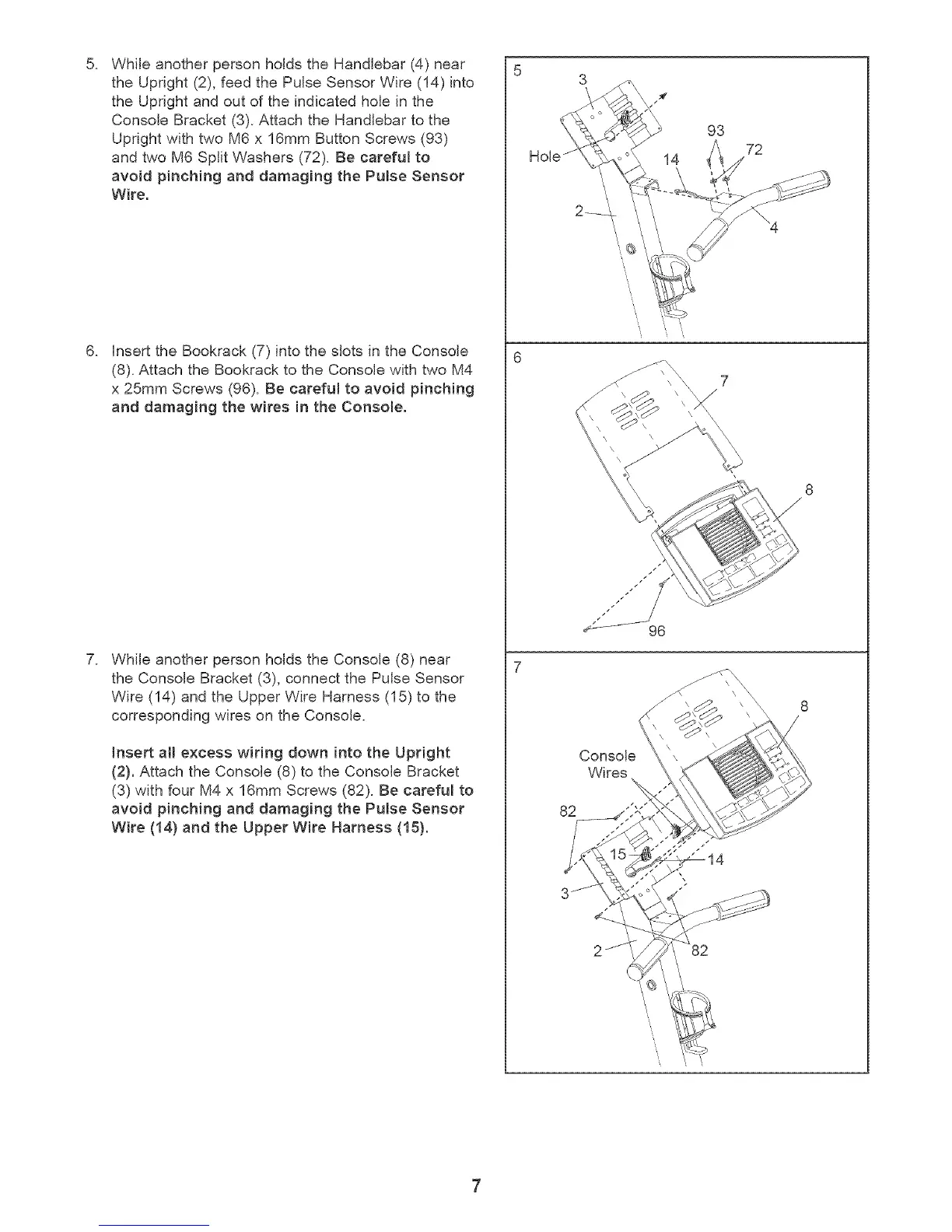

While another person holds the Handlebar (4) near
the Upright (2), feed the Pulse Sensor Wire (14) into
the Upright and out of the indicated hole in the
Console Bracket (3). Attach the Handlebar to the
Upright with two M6 x 16mm Button Screws (93)
and two M6 Split Washers (72). Be careful to
avoid pinching and damaging the Pulse Sensor
Wire.
Insert the Bookrack (7) into the slots in the Console
(8). Attach the Bookrack to the Console with two M4
x 25mm Screws (96). Be carefuI to avoid pinching
and damaging the wires in the Console.
While another person holds the Console (8) near
the Console Bracket (3), connect the Pulse Sensor
Wire (14) and the Upper Wire Harness (15) to the
corresponding wires on the Console.
insert all excess wiring down into the Upright
(2). Attach the Console (8) to the Console Bracket
(3) with four M4 x 16mm Screws (82). Be careful to
avoid pinching and damaging the Pulse Sensor
Wire (14) and the Upper Wire Harness (15).
93
72
8
Console
Wires
82
82
To Next Page
