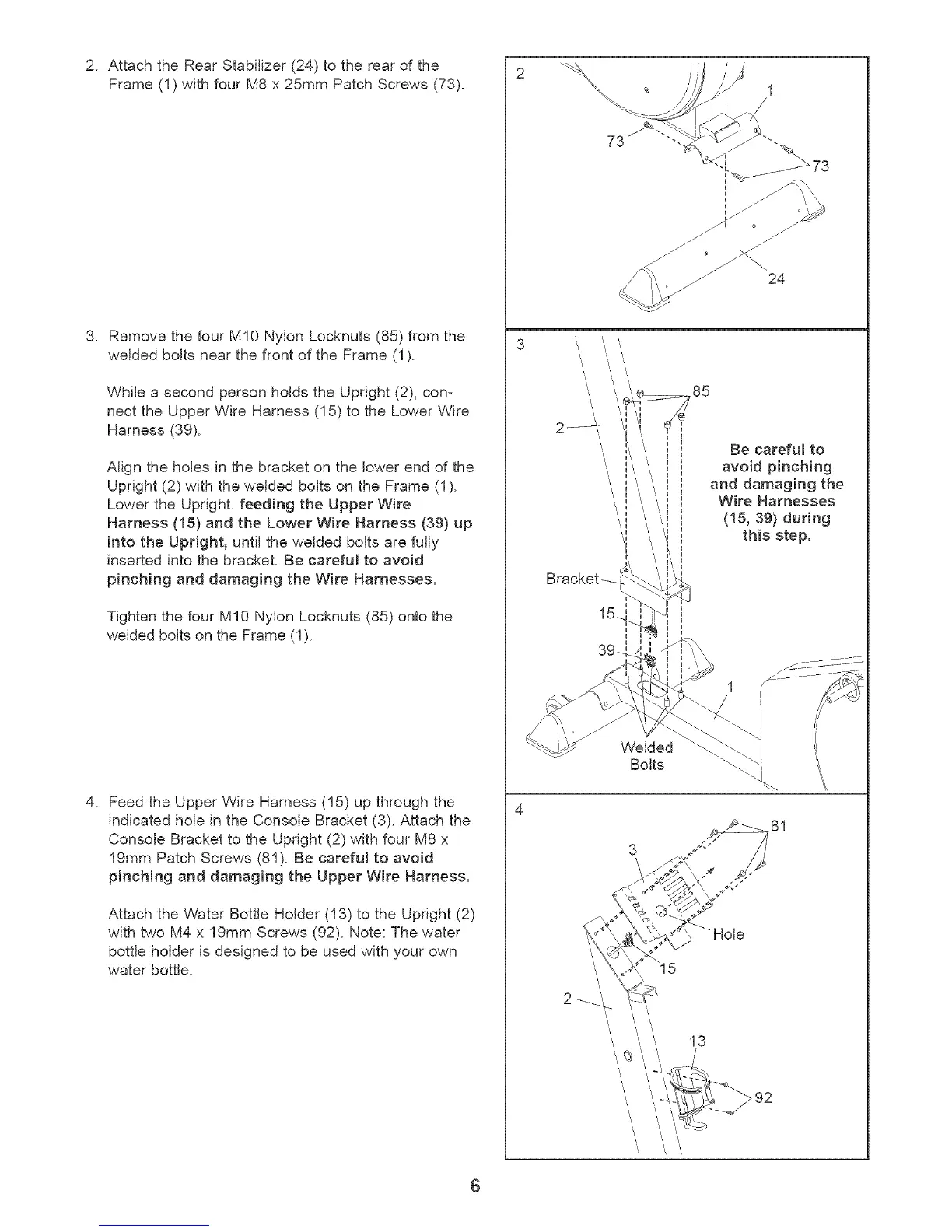

2. Attach the Rear Stabilizer (24) to the rear of the
Frame (1) with four M8 x 25ram Patch Screws (73).
3. Remove the four MI0 Nylon Locknuts (85) from the
welded bolts near the front of the Frame (1).
While a second person holds the Upright (2), con z
nect the Upper Wire Harness (15) to the Lower Wire
Harness (39).
Align the holes in the bracket on the lower end of the
Upright (2) with the welded bolts on the Frame (1).
Lower the Upright, feeding the Upper Wire
Harness (15) and the Lower W{re Harness (39) up
into the Upright, until the welded bolts are fully
inserted into the bracket. Be careful to avoid
p{nching and damaging the Wire Harnesses.
Tighten the four M10 Nylon Locknuts (85) onto the
welded bolts on the Frame (1).
4. Feed the Upper Wire Harness (15) up through the
indicated hole in the Console Bracket (3). Attach the
Console Bracket to the Upright (2) with four M8 x
19mm Patch Screws (81). Be careful to avoid
pinching and damaging the Upper Wire Harness.
Attach the VVater Bottle Holder (13) to the Upright (2)
with two M4 x 19mm Screws (92). Note: The water
bottle holder is designed to be used with your own
water bottle.
I
73
Be careful to
avoid pinching
and damaging the
Wire Harnesses
(18, 39} during
this step.
Welded
Bolts
Hole
\15
81
To Next Page
