4. Press the CAL button again and a 30 second countdown will appear

on the screen.

5. Afterthecountdowniscomplete,a"PASS"or"FAIL"willshowon

the display.

6. Press the CALbuttonathirdtime,and"SRT"willappearontheLCD

screen,indicatingtotheusertoputtheshortingbaracrossthe"+"

and"-"inputterminals.

7. PresstheCAL button a fourth time, and a 30 second countdown will

appear on the screen.

Afterthecalibrationprocedureisnisheda"PASS"or"FAIL"willappear

on the LCD screen.

Press the CAL button a fth time and the calibration data will be saved

if"PASS"wasdisplayedforboththeOpen&Shortcalibrations.

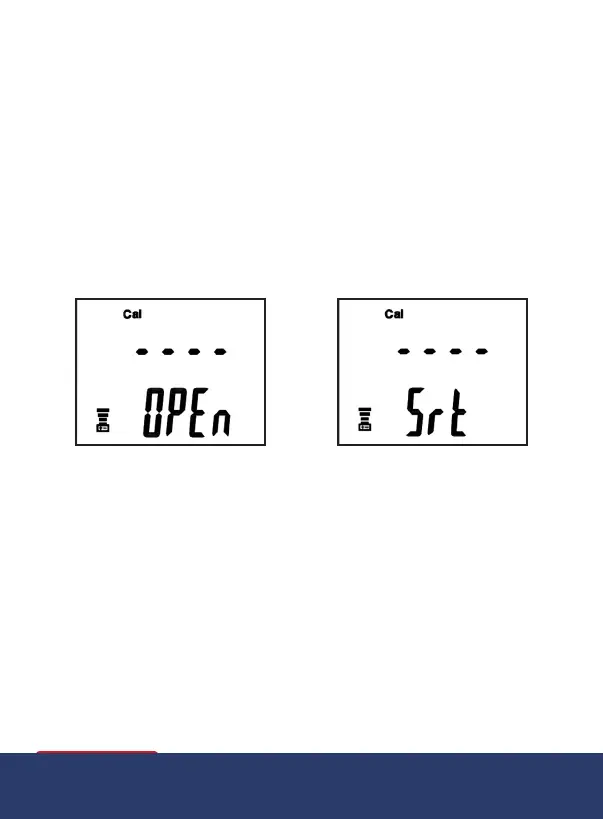

OpenCalibration(left)andShortCalibration(right)

Sorting Mode

Sorting mode helps the user quickly sort through multiple components.

Selecttheprimarymeasurementmode(L/C/R)basedonthetypeof

components to be measured. Insert the component to be used as the

standard or good reference value that will be used for testing against all

other components.

Note: The meter needs a component connected to either the input sockets

or terminals for sorting mode to activate.

1. When ready, turn the meter on and press the SORTING button to

enter sorting mode.

2. Theupperdisplaywillindicate"PASS"andthelowerdisplaywill

indicate the value of the component.

Note:Thedefaultsorting%is+/-1%.

continued...
