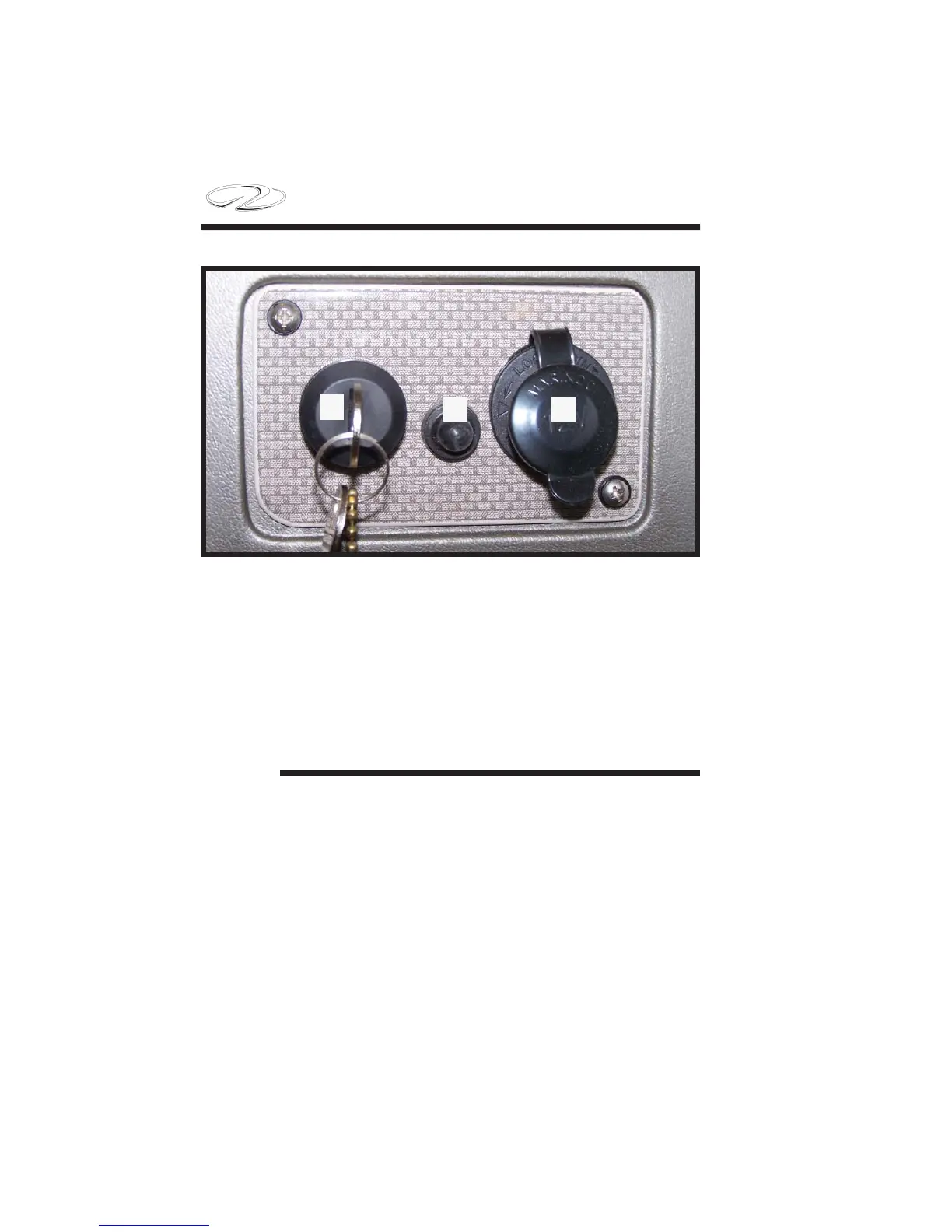

Typical Ignition Panel
1) Ignition Switch 3) 12 Volt Accessory Plug
2) Ignition Breaker
Your ignition panel features a 20 amp ignition breaker that protects
the dash instrumentation. Should this breaker pop, investigate the
cause before resetting it.
Control
Your vessel uses a single side-mount control lever (binnacle lever) to
control the stern drive on your Regal. The three gears the binnacle
can shift into are forward, reverse, and neutral.
To help visualize the operating principles, we have used a clock mode.
The lever in the straight up position is indented in the neutral position.
In order to start the engine, your control lever must be in the 12
o’clock neutral position. Your neutral release button may be useful in
helping to fi nd the locked neutral position.
