23
Equipment Operation
SALON UPHOLSTERY

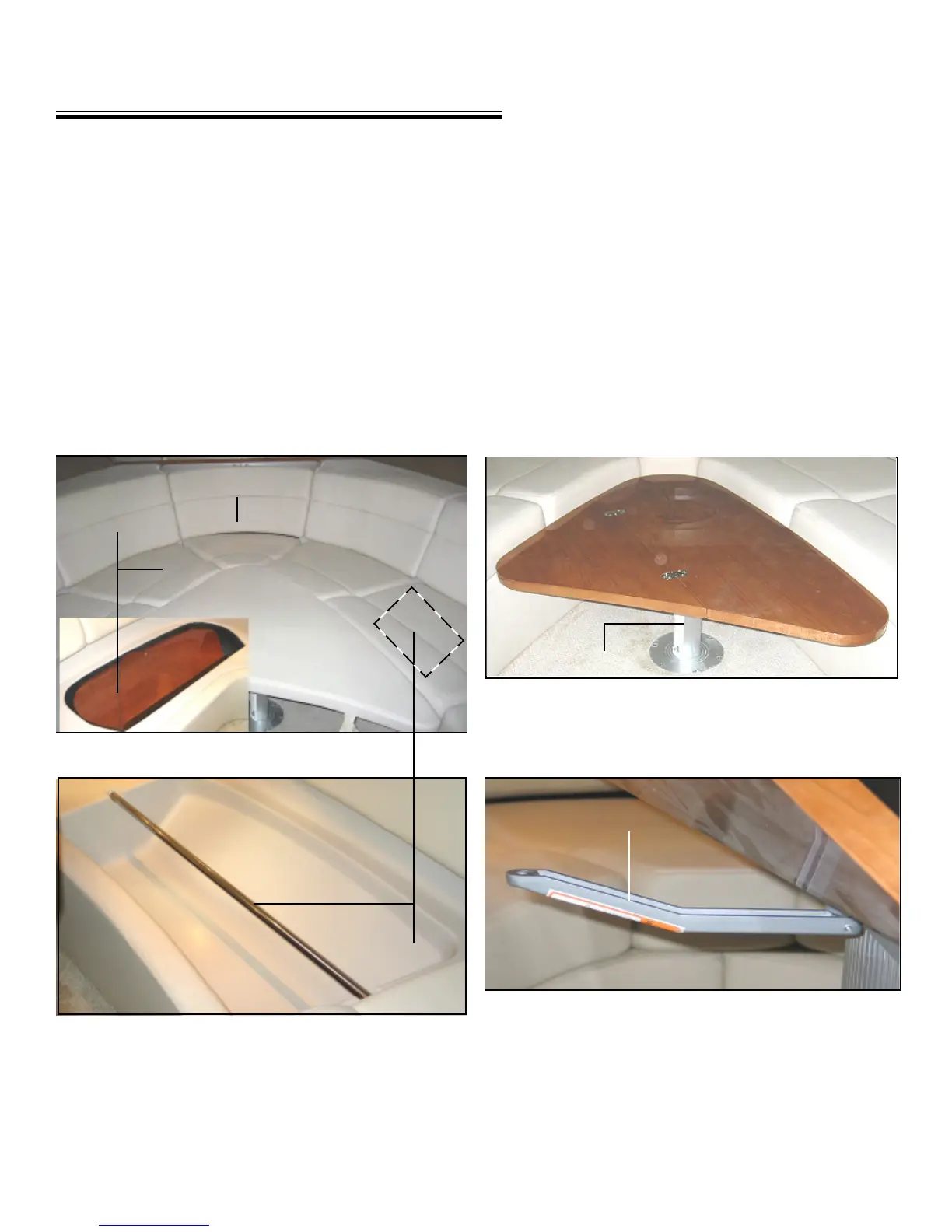

The salon features a convertible dinette with storage un-
der the cushions. The dinette table stores under the port
cushion. Also, the forward backrest cushion lifts to store
the table cushion.
Under the starboard cushion you will find a metal bar.
This provides cushion support. It must be kept in its des-
ignated holder when the cushion is being used as a seat.
See the illustration.
DINETTE TO SLEEPER VIEW
TYPICAL MID CABIN
Dinette
Receiver
Table&Leg
Storage
The table features an adjuster mechanism (knob). When
setting up the table back off the adjustment knob far
enough to allow the table to slip into the pedestal leg. Then
tighten the knob to eliminate any excess table movement.
Notice there is a pivoting leaf support arm attached to the
table support base. Be sure leaf support arm is centered
under the table leaf especially when converting the table
to the sleeper position. See the illustration below for fur-
ther information.
TABLE W/ LEAF
TABLE LEAF OPERATION
Table Cushion Storage
Table Storage
Use short leg for sleeper conversion
Cushion Support
Bar
OVERVIEW
Table Leaf Support
