Technical Information
12-16
FWD
STBD
NOTES:
1. ROUTE CABLES AS SHOWN.
2. HARNESS SHALL BE SECURED AT LEAST
EVERY 18 INCHES TO COMPLY WITH
ABYC/NMMA STANDARDS, OR AT LEAST
EVERY 12 INCHES TO COMPLY FOR
CE CERTIFICATION.
3. USE CHAFE PROTECTION AS NEEDED.
REV. DATE:
EVC22E

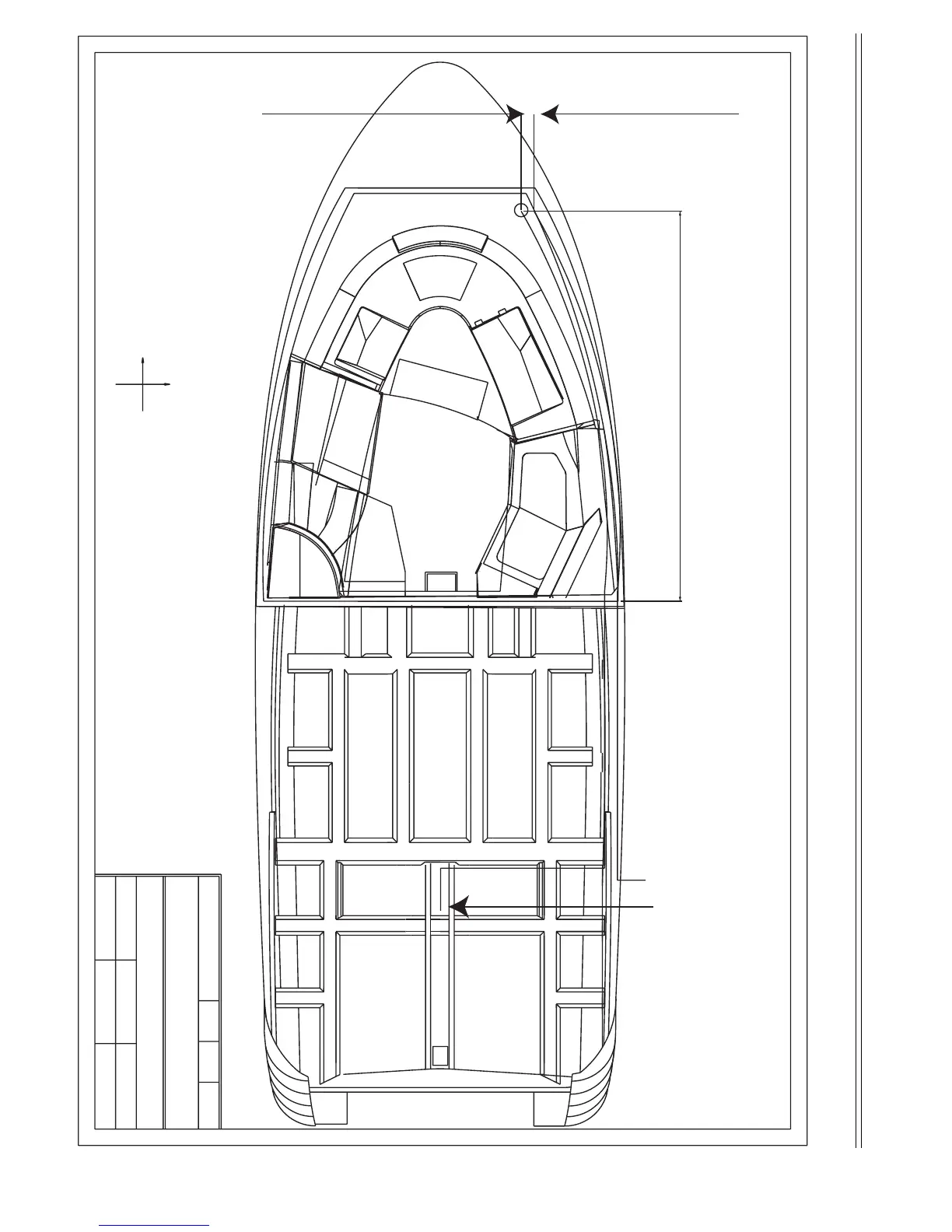

VC WINDLASS CABLE INSTALLATION
2300 JETPORT DRIVE
DWG. NO.:
ORLANDO FLORIDA 32809-7895
REGAL MARINE INDUSTRIES
TELEPHONE (407) 851-4360
APP. BY:
DR. BY:
REVISION DESCRIPTION
DRAWING TITLE:
DATE:
APP. BY:
LATEST REV :
01-21-04
DR. BY:
SCALE:
THIS SECTION
IS ROUTED UNDER LINER
TERMINATE TO
LOAD SIDE OF
WINDLASS BREAKER
TERMINATE TO WINDLASS
BATTERY SWITCH ON DECK
TERMINATE TO WINDLASS
MOTOR GROUND STUD
TERMINATE TO MAIN
DC GROUND BUSS
