28 | Regency CI1150 Wood Cast Insert
maintenance
I1200 CONTEMPORARY
Page 1 of 1 157-500.SLDASM 10/15/2019

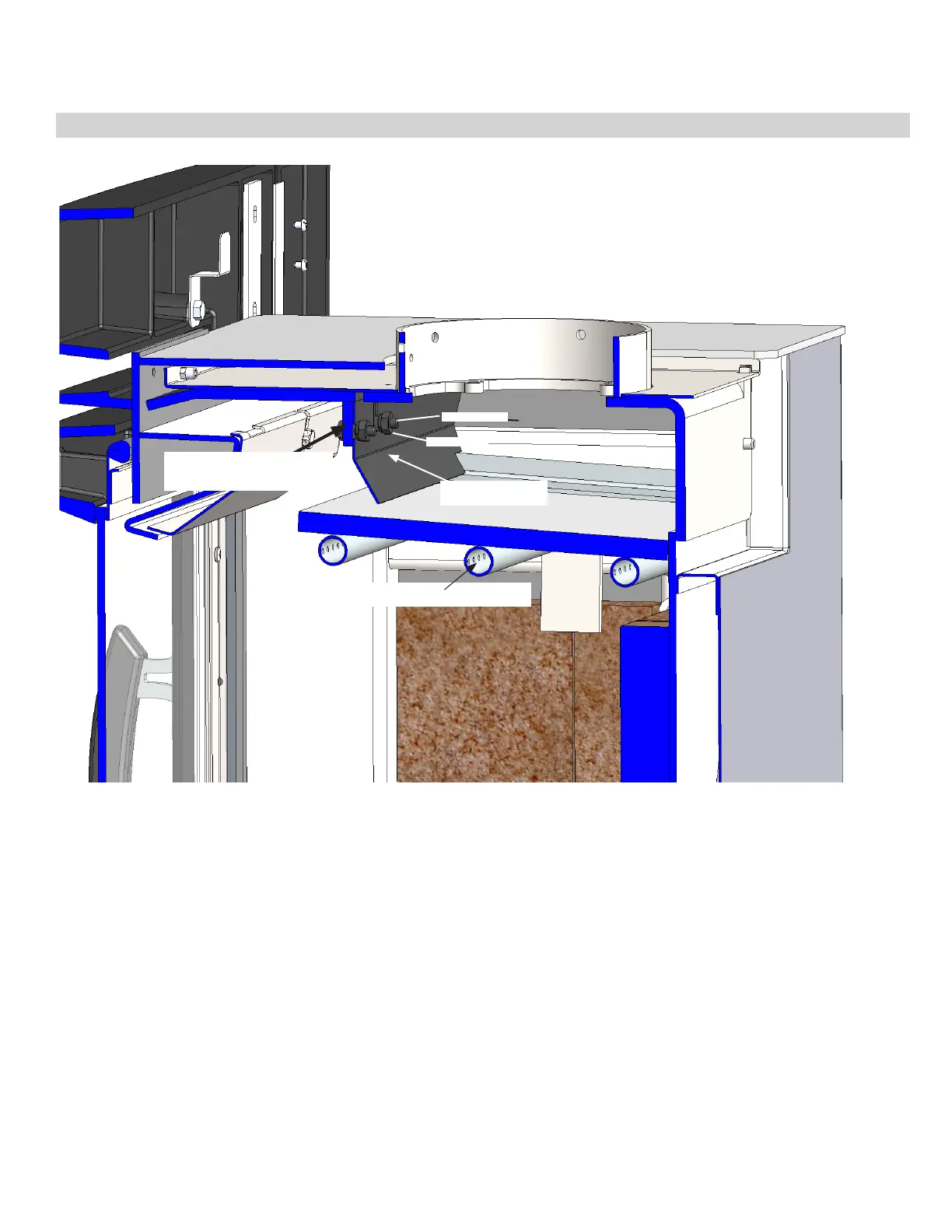

Vertical Stainless Deflector Replacement
7/16'' Nuts
7/16'' Bolts
1. Remove 2 front secondary air tubes / vermiculite baffles (see manual for details).
2. Loosen the two 7/16'' bolts + nuts to remove / replace vertical baffle.
3. Repeat steps to install new vertical deflector.
NOTE: ENSURE BAFFLE IS PUSHED UP AS FAR AS POSSIBLE. TIGHT TO TOP OF FIREBOX.
Vertical Deflector
Remove 2 front air tubes
Slide right + down to remove.
Reverse to replace.
To Next Page
