Regency Alterra CI1150 - Dimensions; Unit Dimensions

Regency CI1150 Wood Cast Insert | 5
dimensions

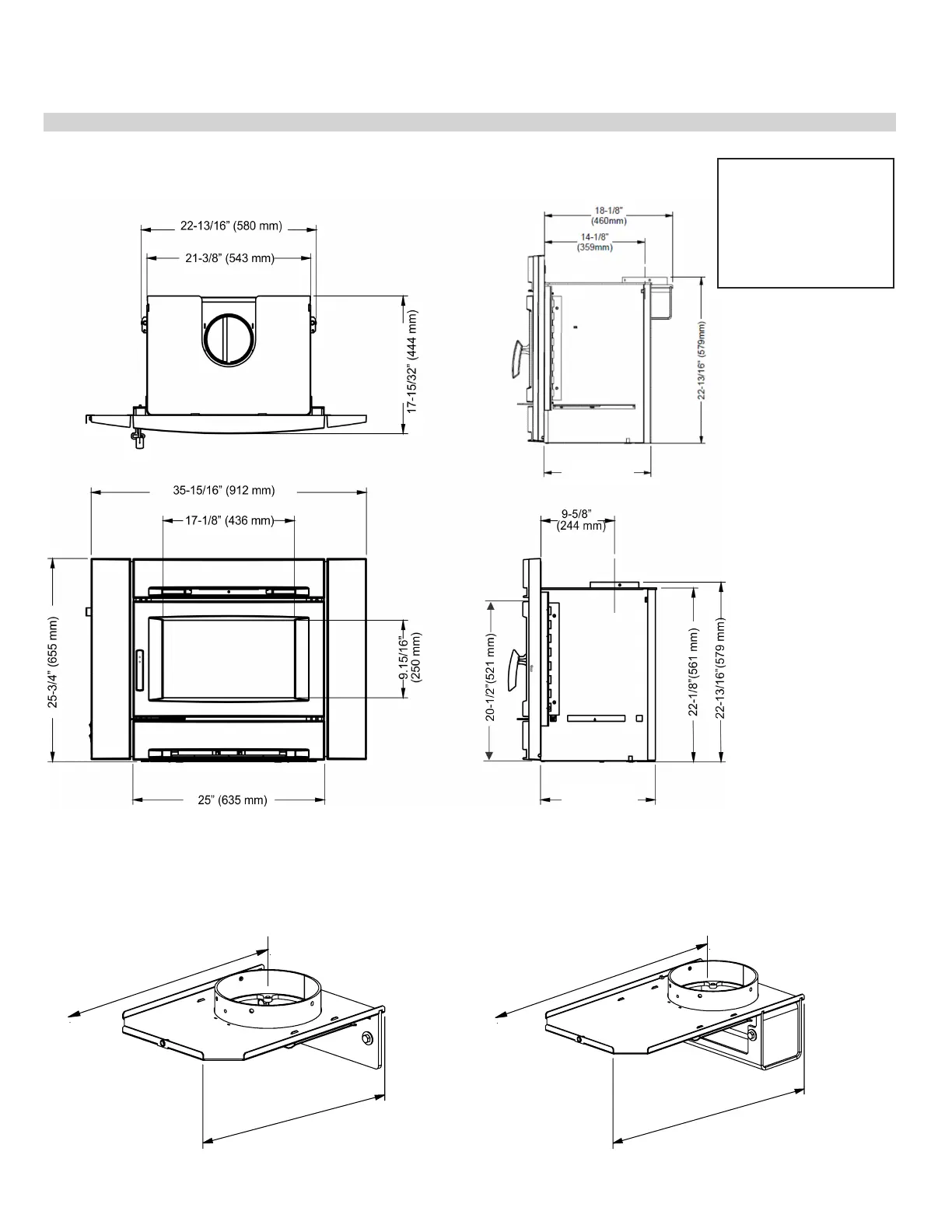

Unit Dimensions
6" (152mm) Diameter
STANDARD FLUE ADAPTOR (172-942)
6" (152mm) Diameter
OFFSET FLUE ADAPTOR (172-946)
13-9/16" (345mm)
9-5/8" from flue centerline to rear of faceplate
6" (152mm) Diameter
STANDARD FLUE ADAPTOR (172-942)
17-5/16" (440mm)
14-1/8" from flue centerline to rear of faceplate
6" (152mm) Diameter
OFFSET FLUE ADAPTOR (172-946)
NOTE: Before assembling
your Insert, use these
dimensions to ensure ap-
propriate clearances will
be met (refer to Masonry
and Factory Built Fire-
place Clearances section).
Offset Flue Adapter
Standard Flue Adapter
15 1/8"
(384 mm)
15 1/8"
(384 mm)
