1. Allow the stove to burn out and cool down.
2. Open stove door bring the side baffl e into the stove in the orientation shown
below.

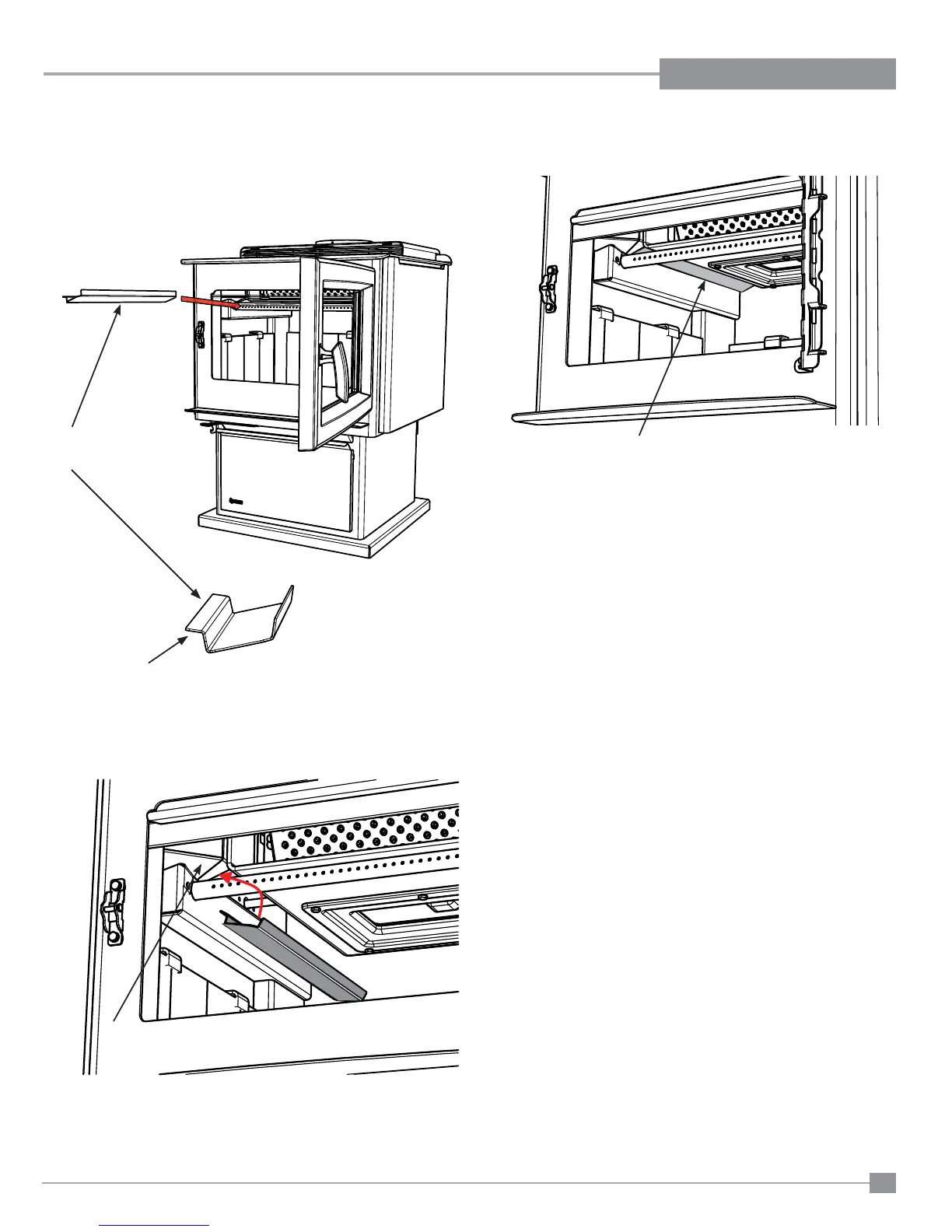

SIDE BAFFLE INSTALLATION / REMOVAL
3. Manoeuvre the side baffl e underneath the upper corner fi ller, then let the
baffl e rest on the side of the combustor housing.
4. Repeat process on other side.
Corner fi ller
Side Baffl e
Orientation
Side Baffl e
Installed
This edge to
outside of fi rebox
