F5100 Regency Freestanding Woodstove
INSTALLATION

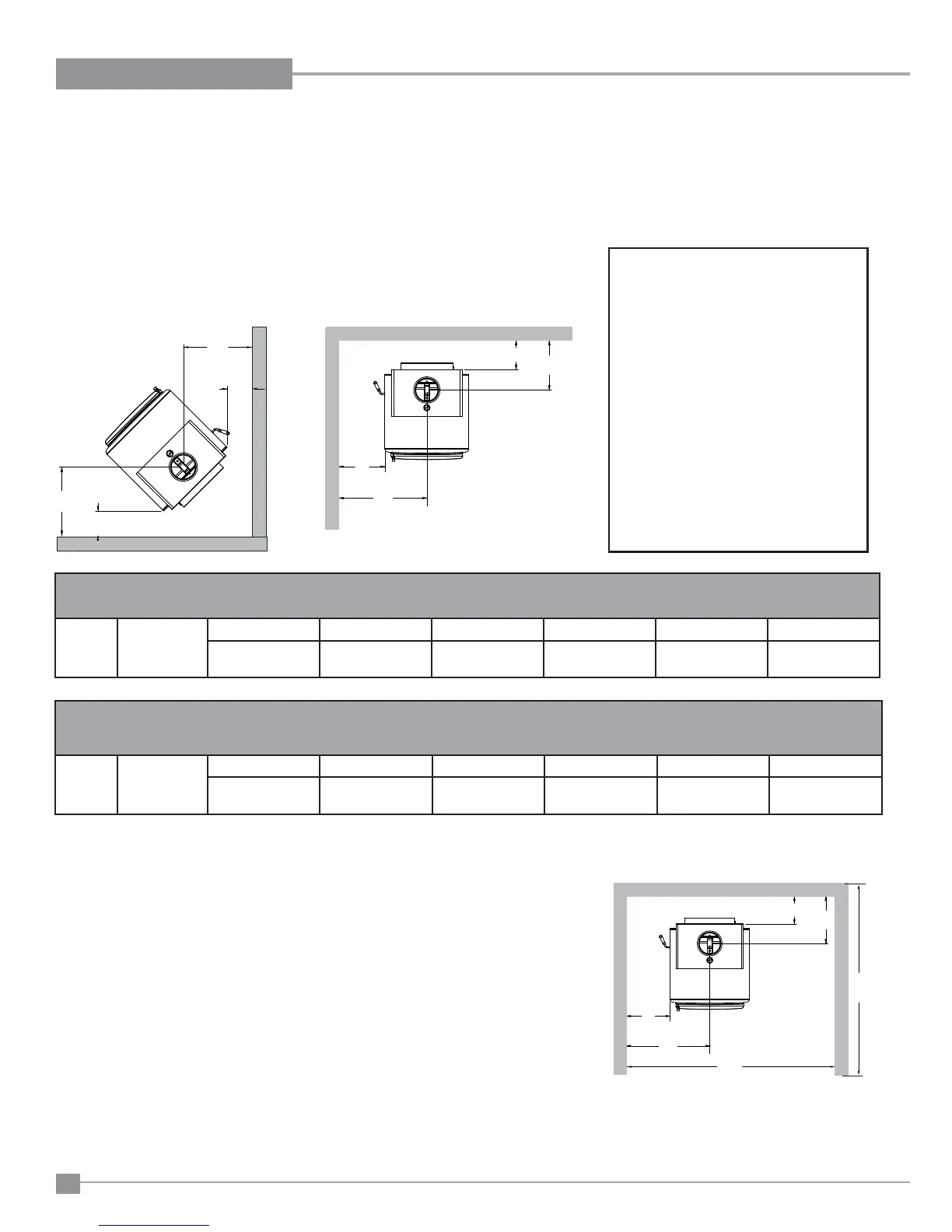

MINIMUM CLEARANCE TO COMBUSTIBLE MATERIALS
Please read the section below carefully as clearances depend on whether the Airmate or the Rear Heat Defl ector is installed on the stove.
Measurements "From Unit" are from the top plate of the stove to a side wall or to a corner, and from the rear heat shield to a back wall.
Clearances may only be reduced by means approved by the regulatory authority.
Note: Minimum ceiling height roof exit - 83" (2108 mm)
B
A
D
E
F
F
C
C
NOTE: Be aware that local Codes and
Regulations may override some
clearances listed in this manual.
Check with your local inspector.
Residential Close Clearance (To be installed with required pipe components) Listed Double Wall Pipe
When the stove is installed as a close clearance residential unit, a listed double wall connector is required from the stove collar to the ceiling level.
F5100 with Airmate or
Rear Defl ector
ABCDEF
11"
279mm
10"
254mm
8"
203mm
25-1/2"
648mm
17-1/8"
435mm
22-1/2"
572mm
Mobile Home Close Clearance (To be installed with required pipe components) Listed Double Wall Pipe When
the stove is installed as a close clearance residential unit, a listed double wall connector is required from the stove collar to the ceiling level.
Refer to Mobile Home Installation in this manual.
F5100 with Airmate or
Rear Defl ector
ABCDEF
11"
279mm
10"
254mm
8"
203mm
25-1/2"
648mm
17-1/8"
435mm
22-1/2"
572mm"
Minimum Alcove Clearance to Combustible Materials
The Regency Freestanding models have been alcove approved and must be installed
with a listed double wall connector to the ceiling level.
Note: Minimum alcove ceiling height - 83" (2108 mm) Vertical Termination}
H = Maximum depth of alcove - 48" (1219mm)
G= Minimum width of alcove - 63" (1600mm)
B
A
D
E
H
G
ROOF EXIT
WALL EXIT
ROOF EXIT
WALL EXIT
ROOF EXIT
WALL EXIT
NOTE: Approved with Listed Double Wall
pipe only. Do not use single wall
pipe.
NOTE: Clearances to combustibles are for
the safety of the property. To avoid
overheating and damaging the
appliance these clearances should
be maintained for non-combustibles
also.
