P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace 9
INSTALLATION
COMBUSTIBLE MANTELS
CLEARANCES
The clearances listed below are Minimum distances unless otherwise stated (refer to diagrams on page 8):
WARNING:
Fire hazard is an extreme risk
if these clearances (air space)
to combustible materials are
not adhered to. It is of greatest
importance that this fi replace
and fl ue system be installed
only in accordance with these
instructions.
Clearance to Combustibles from:
Back 0" (0mm)
Side 0" (0mm)
Floor 0" (0mm)
CAUTION REQUIREMENTS: The top, back and sides of the fi replace are defi ned by
standoffs. The metal ends of the standoffs may NOT be recessed into combustible
construction.
Determine the total thickness of the fi nished fl oor (eg. tile, carpet, slate) to allow the
fi nished surface to be fl ush with the base of the unit.
Ceiling Height from Floor 72" (1828mm)
Mantel Height from Base of Unit:
39" min. (991mm)
Horizontal Flue Clearances:
Top 2-1/2" (64mm)
Side 1-1/2" (38mm)
Bottom 1-1/2" (38mm)
Vertical Flue Clearances 1-1/4" (32mm)

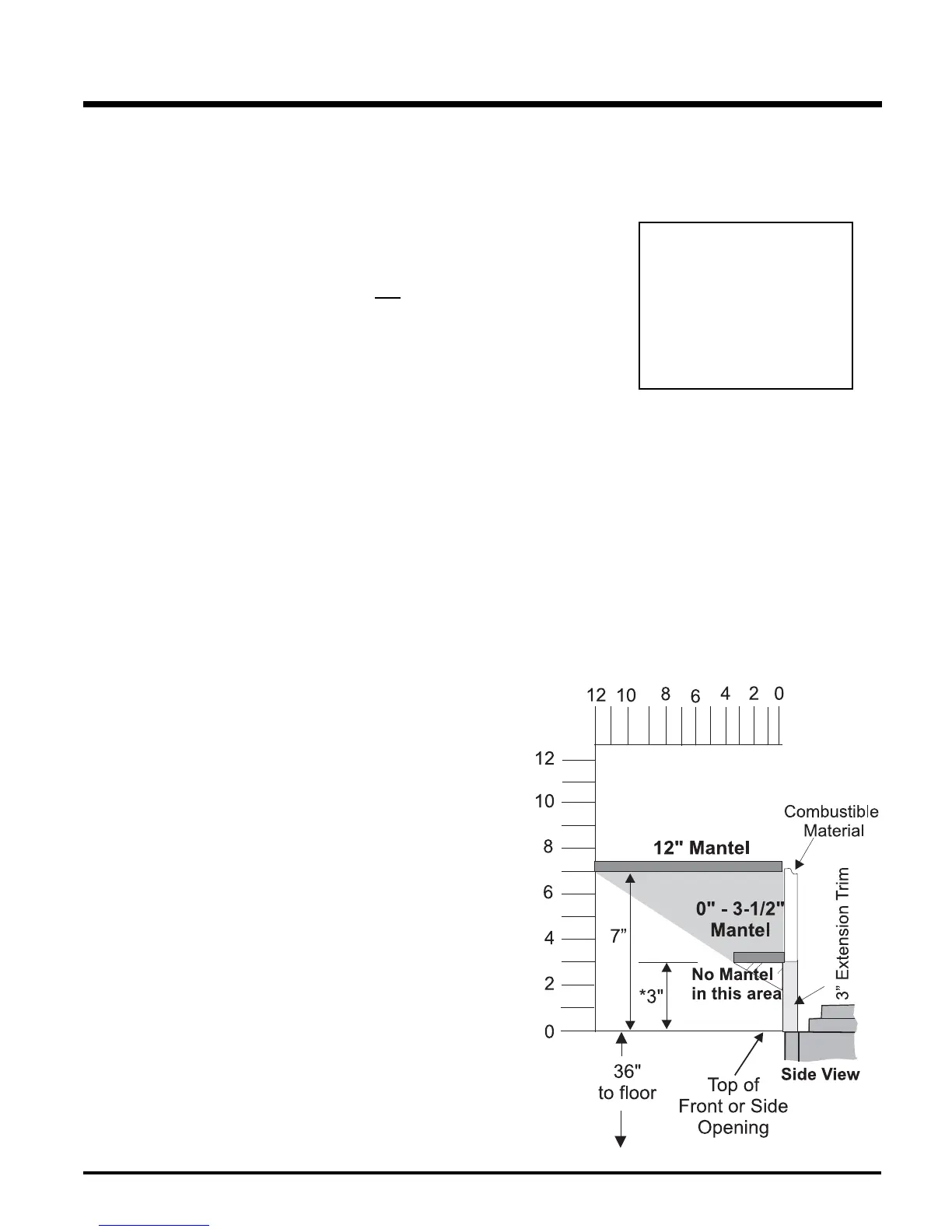

Because of the extreme heat this fi replace emits, the mantel clearances are
critical. Combustible mantel clearances from top of unit are shown in Diagram
to the right.
Note: A non-combustible mantel may be installed at a lower height if the
framing is made of metal studs covered with a non-combustible
board.
This drawing is to scale at 1:6 (one inch = 6 inches)
Mantel can be installed anywhere in shaded area or higher using this scale.
Caution: Ensure the paint that is used on the mantel and the facing is
"heat resistant" or the paint may discolour.
* If the 3" (76mm) metal extension trim is removed it must be replaced with a 8"
(203mm) non-combustible material.
Mantel Clearances
