P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace 25
INSTALLATION
LOG INSTALLATION
Read the instructions below carefully and refer to the diagrams. If
logs are broken do not use the unit until they are replaced. Broken
logs can interfere with the pilot operation.
Log Kit # 360-930 contains the following pieces:
a) 326 Front Right Log
b) 327 Front Left Log
c) 328 Middle Right Log
d) 329 Middle Left Log
e) Embers 902-154
Please note that there are 2 of each log. This log
set is mirrored front and back.
326
Push back side of the left end of the log up
against the tab on the burner.
326
326
327
Grate Post
1) Carefully remove the logs from the box and unwrap them. The logs
are fragile, handle with care - do not force into position.
2) Place Log 326 on the front right side of the burner. Ensure that the
notches on the far right side of the log fi t into the grate posts. Push back
side of the left end of the log up against the tab on the burner.
Repeat step 2 on the opposite side of the burner.
Tab on Burner
3) Place Log 327 on the front left side of the burner. Position the right
end of the log in between the two tabs and the left end of the log into
the grate post.
328327 329 326

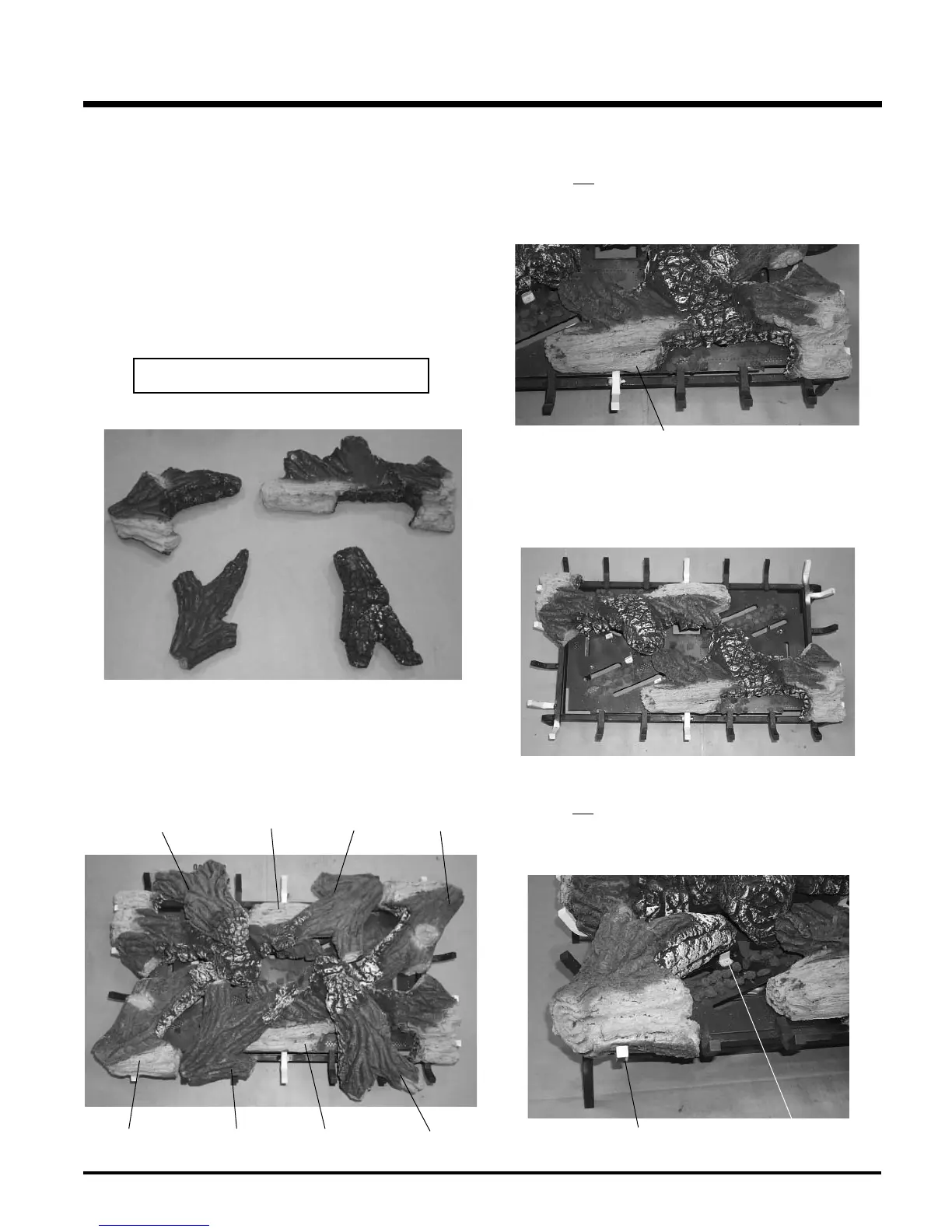

The image below shows all of the logs in place.
326
329328
327
The 3-digit numbers (ie. 327) are
molded into the rear of each log.
326
327
329
328
