42 | Regency
®
P121-10/P131-10 Zero Clearance Direct Vent Gas Fireplace
|
42
parts list

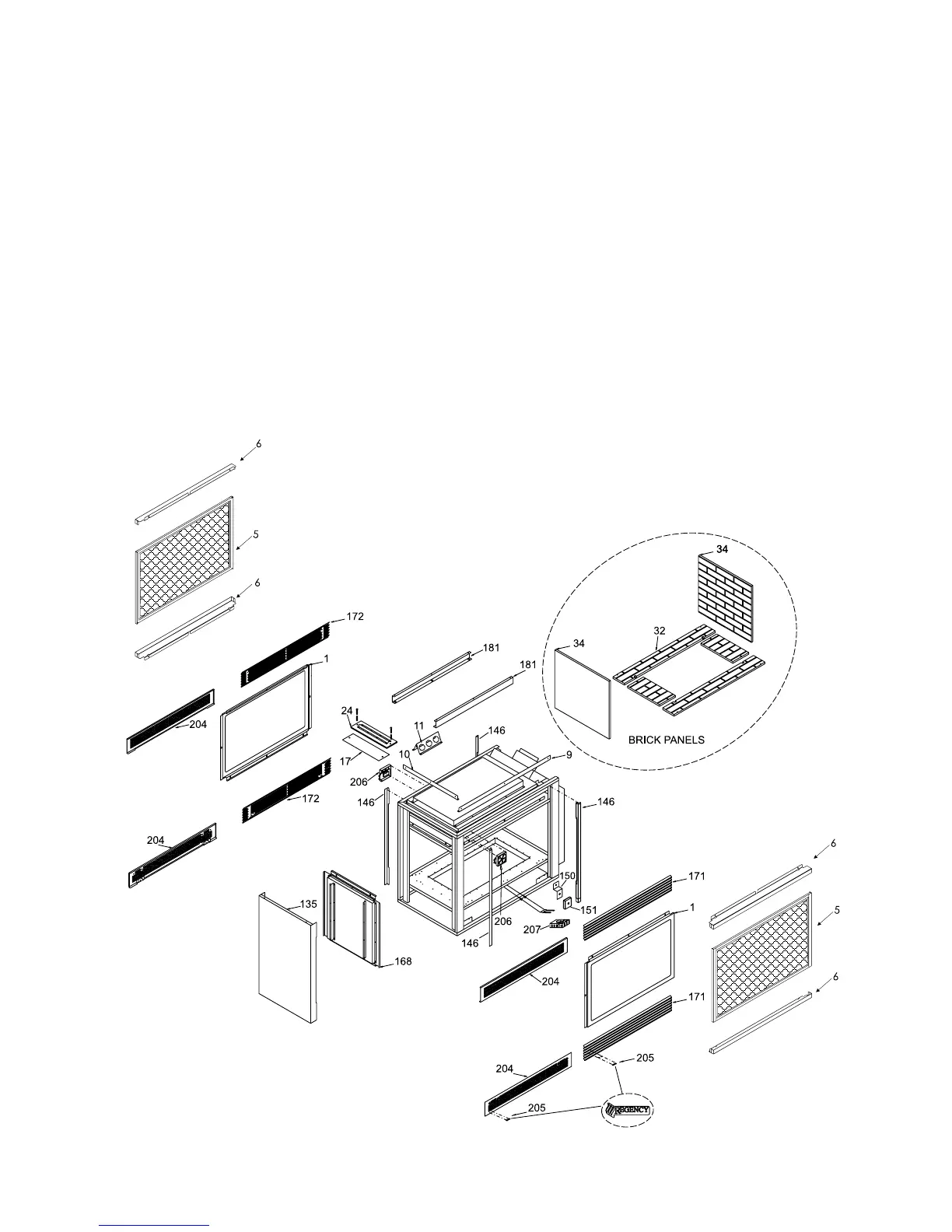

P121-10 (SEE THRU) MAIN ASSEMBLY
1) 360-528 Door Assy Front - Tempered
360-946 Door Assy Front - Ceramic
(Optional)
2) 360-529 Door Assy Side - Tempered
5) 363-000 Safety Screen (Each)
6) 363-002 Horizontal bracket (Each)
** 363-004 Vertical Bracket (Each)
9) 360-046 Nailing Strip - Top - Front
10) 360-047 Nailing Strip - Top - Side
11) 430-001 Standoff - Top
17) 360-086 Gasket - Relief Door
24) * Relief Door Assembly
32) 362-528 Brick Panel Base (Set of 4)
34) 902-603 Brick Panel - Std. Red (Side)
135) 360-069 Heat Shield - Side
146) 360-033 Left Side Door Trim
360-034 Right Side Door Trim
150) 360-123 Magnet Bracket - Front
151) 904-258 Magnet
168) 360-068 Door Cover Assembly - Side
171) 360-920 Louver Front - Black (set)
360-924 Louver Front - Black/Steel (set)
181) * Extension Trim - See Thru
204) 360-940 Dec. Grill Front - Black (set)
205) 948-216 Regency
®
Logo Plate
206) 910-171 Fan Axial 115V
207) 910-142 Thermodisc
919-498 Manual
*Not available as a replacement part.
**Not Shown
Part # Description Part # Description Part # Description
