maintenance
VALVE REPLACEMENT
8. Disconnect the gas at the valve. Access throught
the front (with access panel removed) The gas
line may also be accessed by removing the rear
pedestal cover plate.
9. Carefully remove the logs and lava rock.
10. Remove two (2) screws to remove burner.
Note: Use a magnetic type screwdriver if
possible.
If the valve requires maintenance or replacement,
use the following instructions:
Note: Always shut off the gas supply and turn
off electrical before removing the valve.
1. Remove safety screen and open front pedestal
door. You may want to put a soft cloth on the
base of the unit so that when the pedestal door
is open it doesn't scratch the paint.
2. Remove 2 screws to remove receiver cover.
3. Remove chain from door and unit,remove 4
screws holding the access panel in place.
11. Remove all 18 screws holding the burner tray
assembly in place.
12. Carefully lift the valve tray assembly out.
14 Reverse Steps 1-11 to complete.
13. Remove the valve tray and replace.
6. If fan installed–disconnect the "Com" wire from
the valve.
7. Disconnect the DC spark generator wires from
the valve.
4. Disconnect receiver wire from the back of the
panel and then remove panel. Set the panel
on a soft cloth so it doesn't get scratched.
5. Disconnect stepper motor wire.

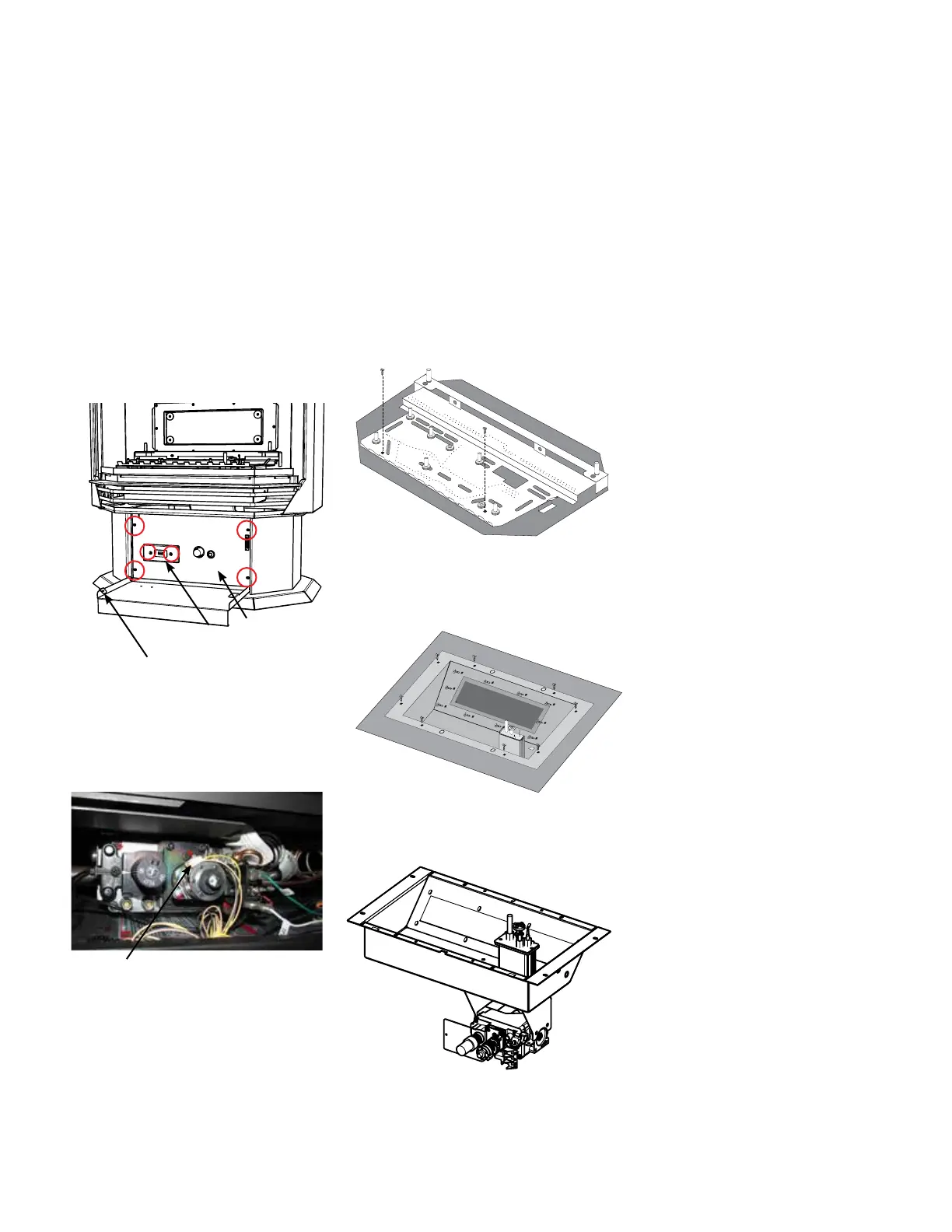

Chain slot
Stepper motor wire
Receiver cover
Access panel
To Next Page
