01/13/15918-039b
GAS STOVES
U38 / U39

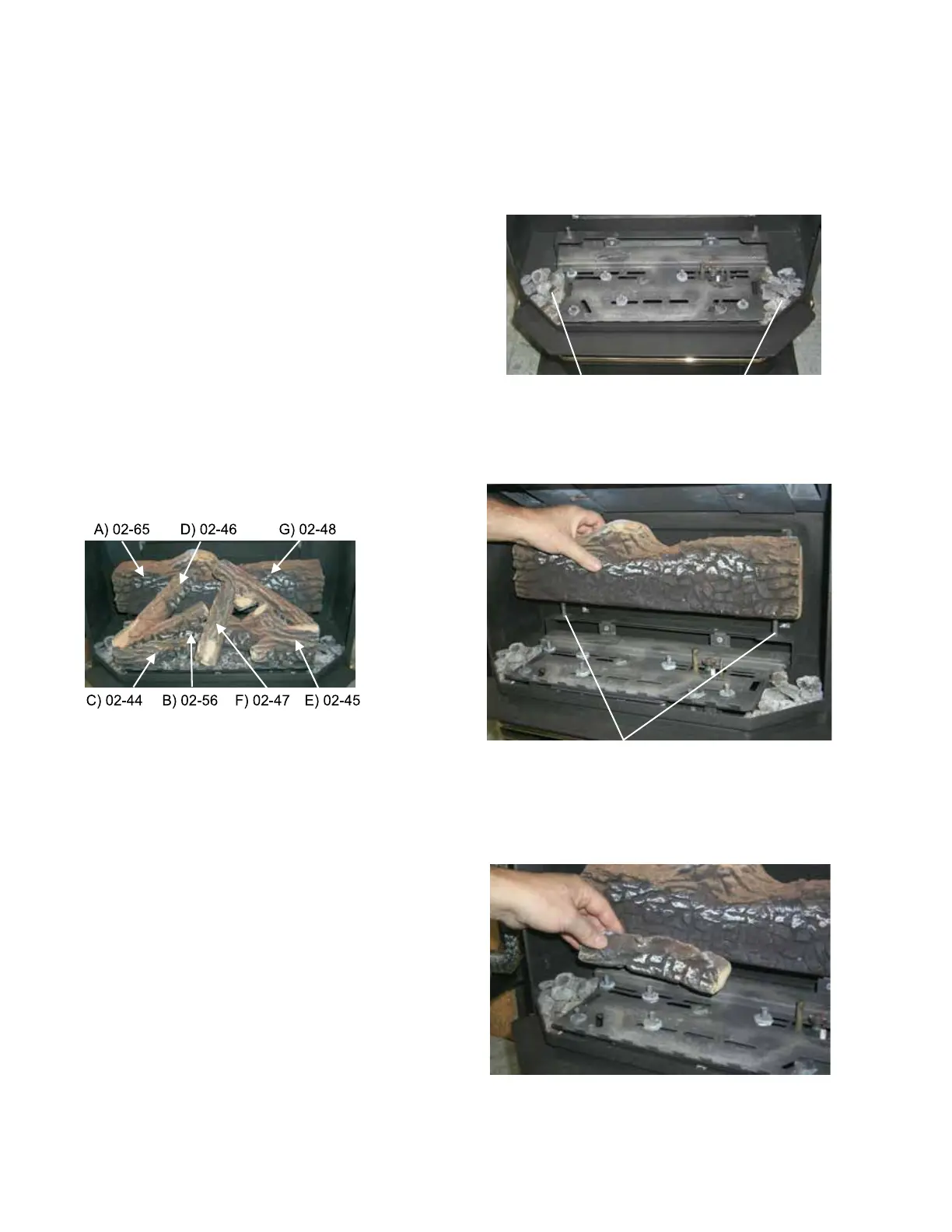

LOG SET INSTALLATION
Embers Embers
The "02" refer numbers (i.e. 02-65) are
molded into the rear of each log.
1) Carefully remove the logs from the box and unwrap
them. The logs are fragile, handle with care - do
not force into position.
Pins on Rear Log Support
A)02-65
B)02-56
3) Place Rear Log A)02-65 on the two pins on the rear
log support.
4) Place the Middle Left Log B)02-56 on the two pins
as shown.
Read the instructions below carefully and refer to
the diagrams. If logs are broken do not use the unit
until they are replaced. Broken logs can interfere
with the pilot operation.
The gas log kit contains the following:
a) 02-65 Rear Log
b) 02-56 Middle Left Log
c) 02-44 Front Left Log
d) 02-46 Left Top Log
e) 02-45 Front Right Log
f) 02-47 Center Log
g) 02-48 Middle Right Log
h) 902-151 Embers
i) 902-154 Lava
j) 946-669 Platinum Embers
(supplied w/packaged manual)
Page 1 of 2
2) Sprinkle the embers on the left and right sides of the
fi rebox base.
To Next Page
