Regency
®
U39-10 ULTIMATE Direct Vent Freestanding Gas Stove | 41
41
|
parts list
30) 630-021 Fan Access Panel
31. 730-019 Rear Panel
32. 730-565 Firebox Bafe/Restrictor Assy
33. 630-520 False Top Assembly
36. 936-194 Gasket-Starter Collar/Air Passage
37. * Gasket-Flue Collar/Starter Collar
38. 820-058 Pedestal Base Cover
39. * Gasket - Air Passage
910-073 Spark Generator Battery Holder
910-074 Spark Generator Switch c/w Wire
948-223 Logo Plate
919-482 Manual
*Not available as a replacement part.
1. 732-929 Safety Screen
2. 560-920 Louver Assy - Gold
560-921 Louver Assy - Brush Nickel
560-922 Louver Assy - Black
9. 730-560 Relief Door Assembly
10. 730-034 Mounting Plate Gasket
11. 730-517/P Fan Assembly
910-331/P Fan Motor (120 Volt)
12. 910-813 Power Cord (120 Volt)
15. * Pedestal Assembly
16. 730-039 Pedestal Door
17. 904-257 Pedestal Door Magnet
18. 732-084 Pedestal Back
20. * Short Side Panel Door Assy
21. 560-031 Hinge for Side Panel
23. 904-258 Side Panel Door Magnet
24. 948-255 Door Latch c/w Hook
25. * Flex Pipe 3" ID
26. * Hose Clamp
27. 910-233 Thermodisc - Fan Auto/On/Off
28. * Mounting Bracket - Thermodisc

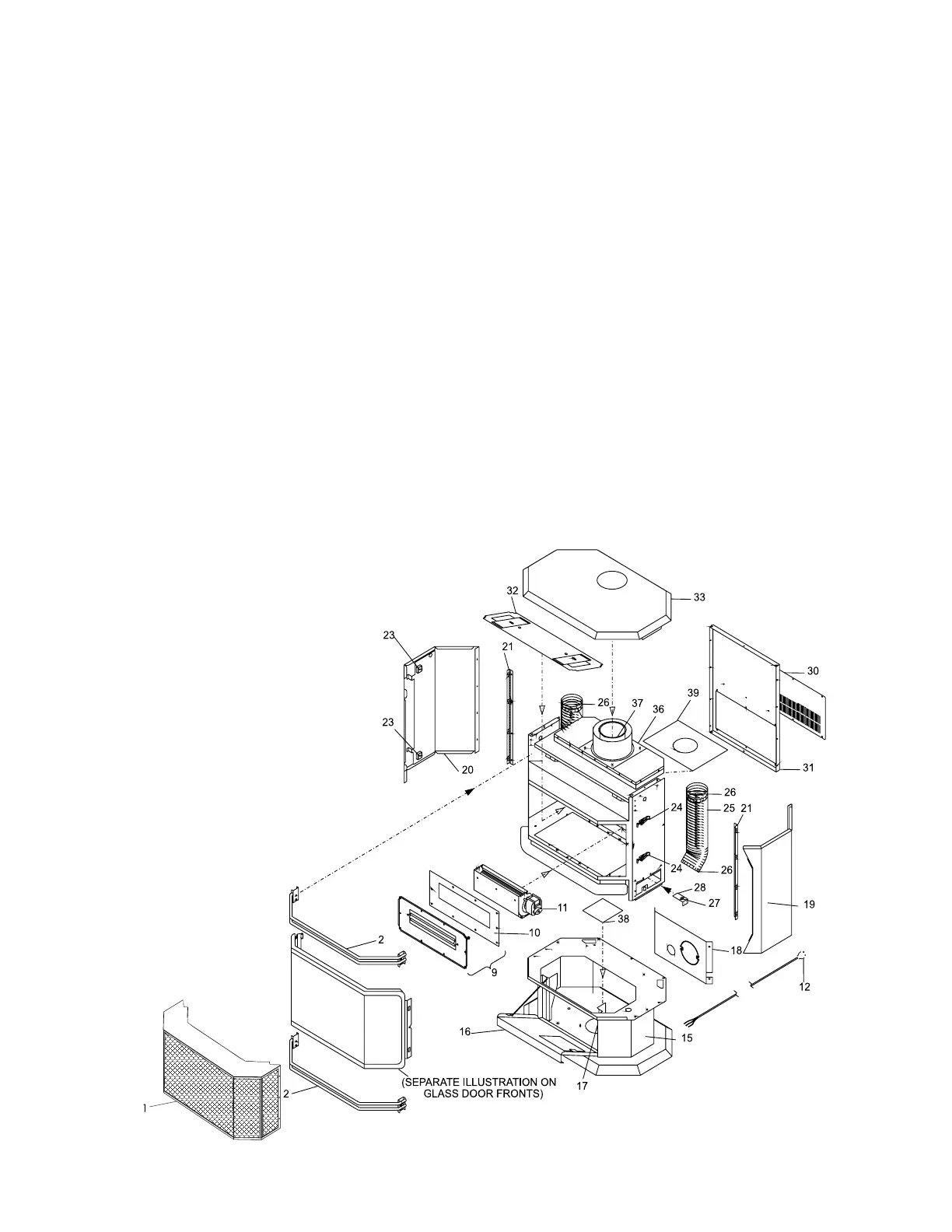

MAIN ASSEMBLY
Part # Description Part # Description
