U39-10 ULTIMATE Direct Vent Freestanding Gas Stove
|
30
installation
01/13/15918-039b
GAS STOVES
U38 / U39
Cutout
Pin
D)02-46
B)02-56
A)02-65

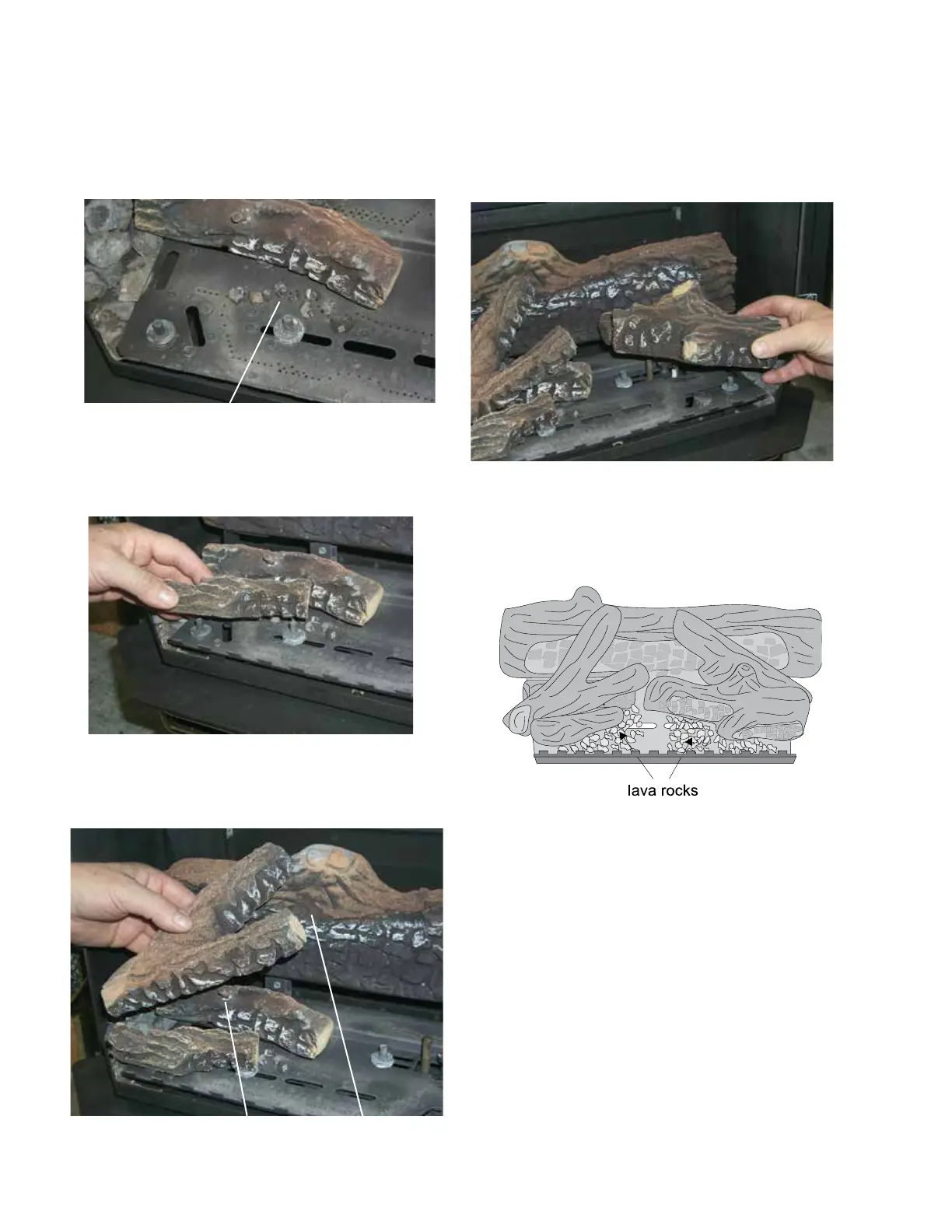

7) Place the Left Top Log D)02-46 on the pin on Log
B)02-56 and on top of the cutout on Log A)02-65.
E)02-45
C)02-44
8) Place Front Right Log E)02-45 on the two pins as
shown.
9) Place the lava rock in the area between the left and
right logs, leaving a space in the middle for
log (F) 02-47.
Page 2 of 2
C)02-44
5) Sprinkle some lava rock just in front of B)
02-56 on the burner holes.
Lava Rock
B)02-56
6) Place Front Left Log C)02-44 onto the 2 front pins
as shown.
10) Separate platinum embers and place around the
lava rock on the burner. Avoid stacking platinum
embers.
