U39-10 ULTIMATE Direct Vent Freestanding Gas Stove | 31
31
|
installation
01/13/15918-039b
GAS STOVES
U38 / U39
Cutout
Notch
F)02-47
E)02-45
A)02-65

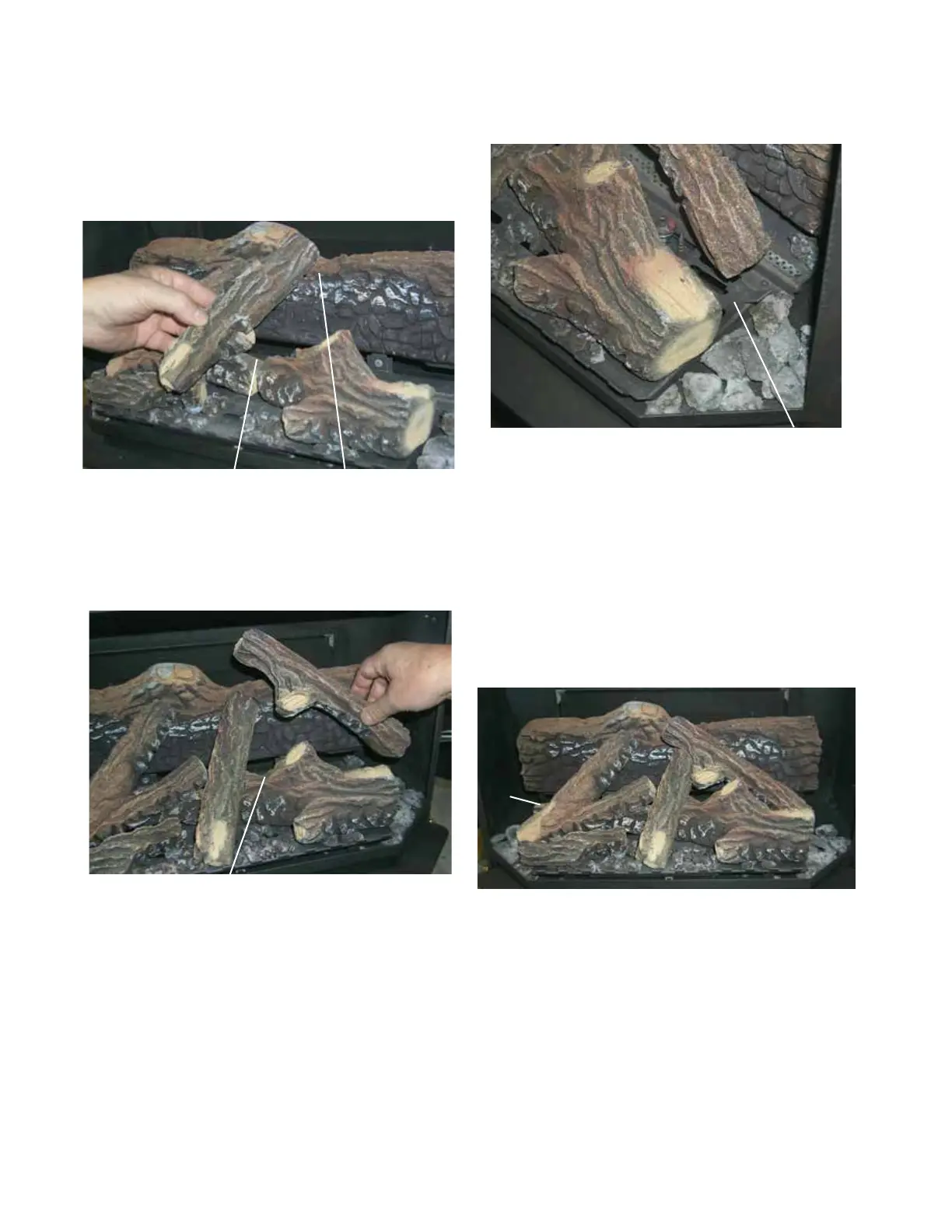

11) Place the notch in Center Log F)02-47 over
Log E)02-45 and across the cutout on Log A)02-
65.
Notch
E)02-45
Bracket
A)02-65
The bottom right edge of Log G)02-48
must sit snugly against the bracket
Side
View
G)02-48
E)02-45
F)02-47
12) Position notch in Front Right Log G)02-48 on Log
F)02-47 and push the bottom right edge against the
bracket on the burner tray.
G)02-48
13) Te st fi re to ensure proper light off (make sure fl ame
fl ows smoothly from one end of burner to the other.
If there is any fl ame hesitation, check that area for
any blockage of the burner port.
F)02-47
E)02-45
A)02-65
G)02-48
D)02-46
B)02-56
C)02-44
