Manual C
ORRIGO
C-
SERIES
2000.09
Wiring example actuator

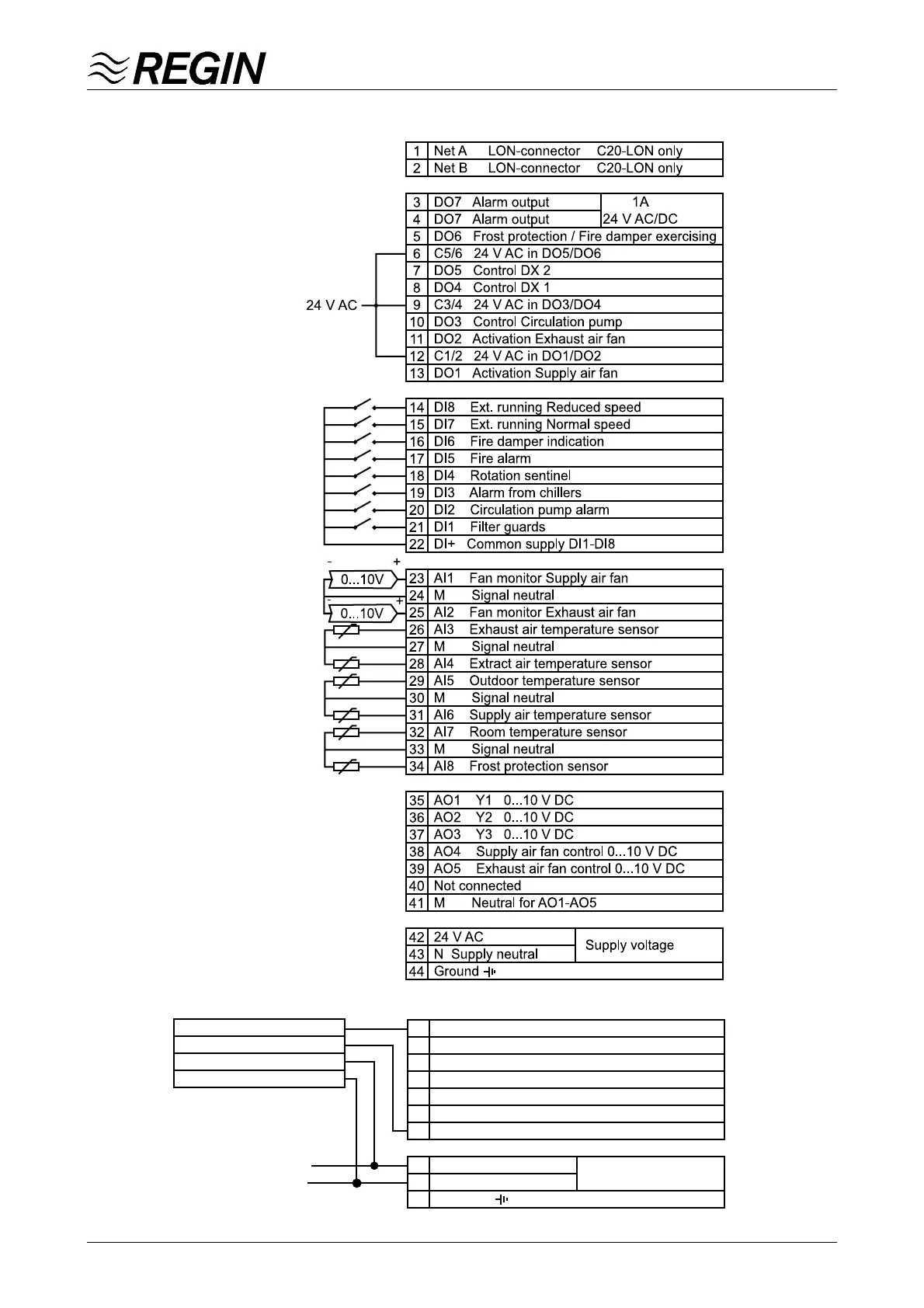

Wiring diagram C20
Signal 0...10V
Signal neutral
Supply voltage 24 V
AC
System neutral (24 V
AC)
24 V
AC
N system neutral
Ground
35
36
37
38
39
40
41
42
43
44
Supply voltage
AO1 Y1 0...10 V DC
AO2 Y2 0...10 V DC
AO3 Y3 0...10 V DC
AO4 Supply air fan control 0...10 V DC
AO5 Exhaust air fan control 0...10 V DC
Not connected
M Neutral for
AO1-AO5
10
12
Table of Contents
Table of Contents
2
Technical Data
4
Overview of Inputs and Outputs
5
Installation
9
Wiring Diagrams
10
Description of Inputs and Outputs
14
Logging in
20
Configuration
22
Controlling Temperature
32
Controlling Pressure
33
Controlling Humidity
33
Running Mode
34
Inputs
34
Outputs
35
Scheduler
37
Alarm Settings and Lists
39
Settings (Other)
41
Relay Modules, Accessories
43
Commissioning Protocol
45
Configuration Tables
47
5
