EXOcompact Eedo
4 EXOcompact Eedo
4.1 Status indications
A LED is located at the top of the controller cassette and provides information about the controller status
and behaviour.
LED colour Description
Green, solid Power is on and all is O.
Red, solid Battery problem
Yellow, blink 2.5 Hz Identification (wink)
Orange, blink 1 Hz IO-board is not in contact with CPU-board (via EFX)
4.2 Terminals and wiring diagram
4.2.1 Models XCE…W-1
The controller terminals are shown in Figure 4-1 and described in Table 4-1.

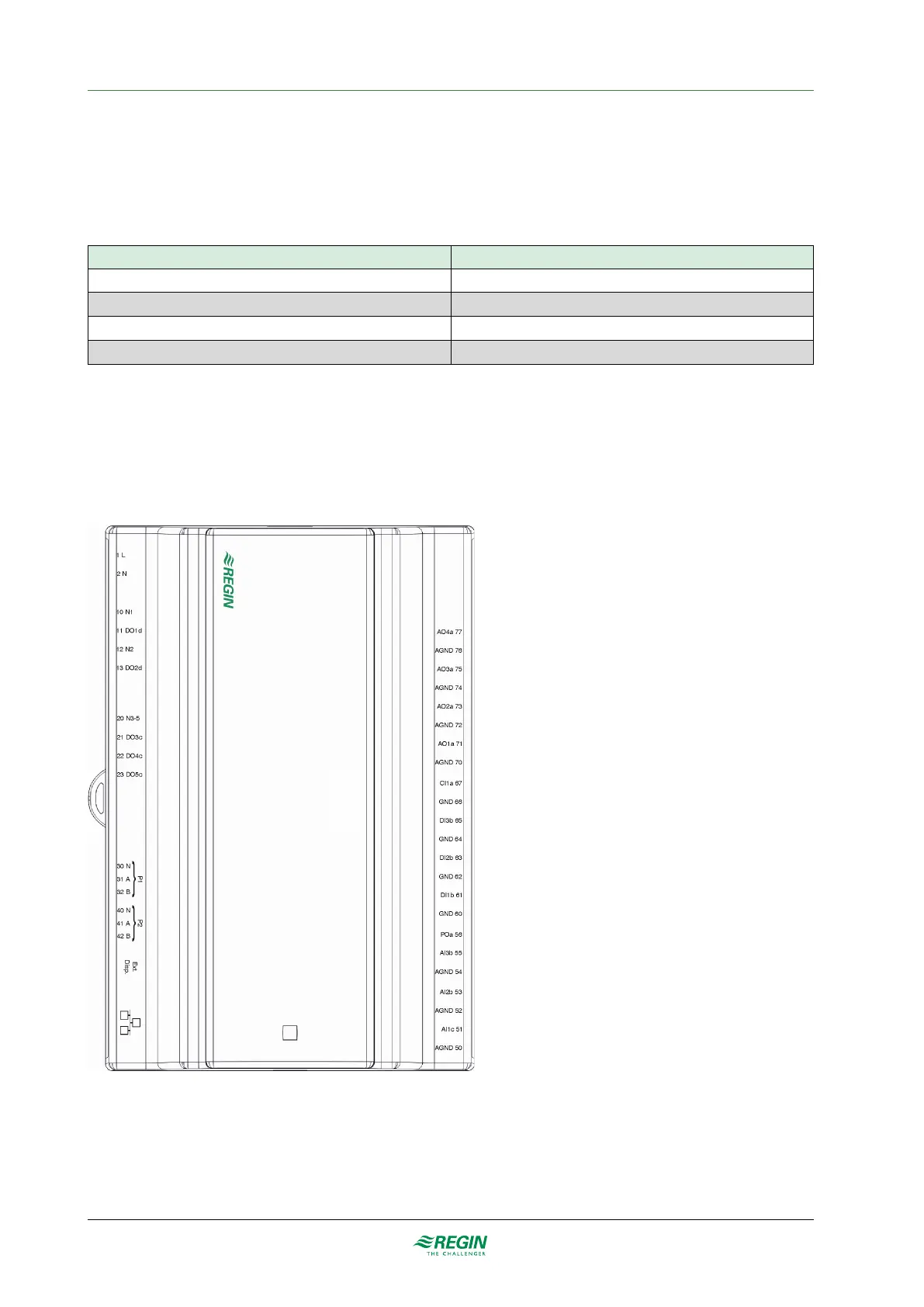

Figure 4-1 XCE163W-1 controller terminals layout
EXOcompact Ardo, Eedo and Vido manual, Rev.
B
17
